2023 Kawasaki JET SKI® Ultra® 310LX-S Cooling Diagram

← All diagrams

Find the part on the Cooling diagram for your 2023 Kawasaki JET SKI® Ultra® 310LX-S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

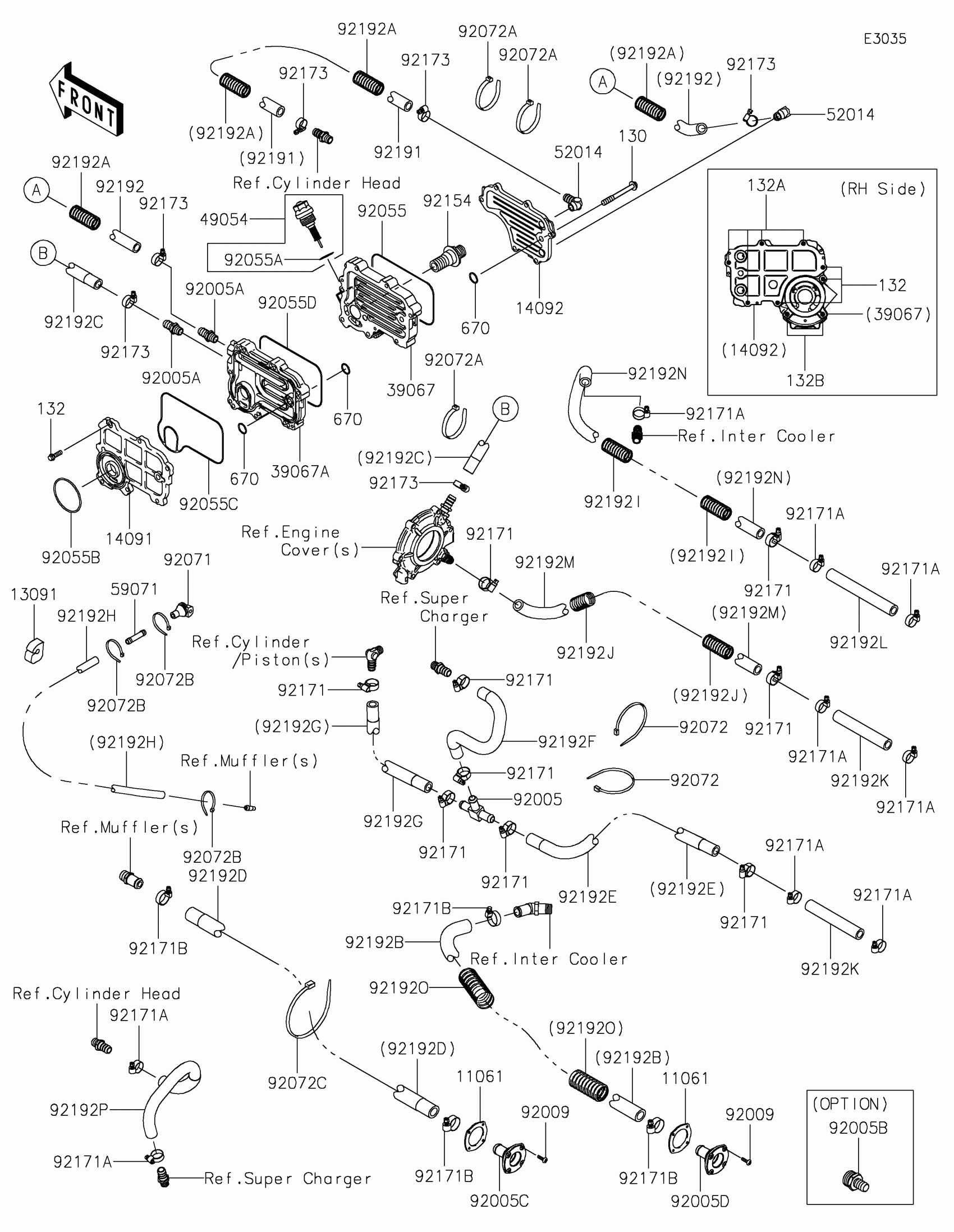

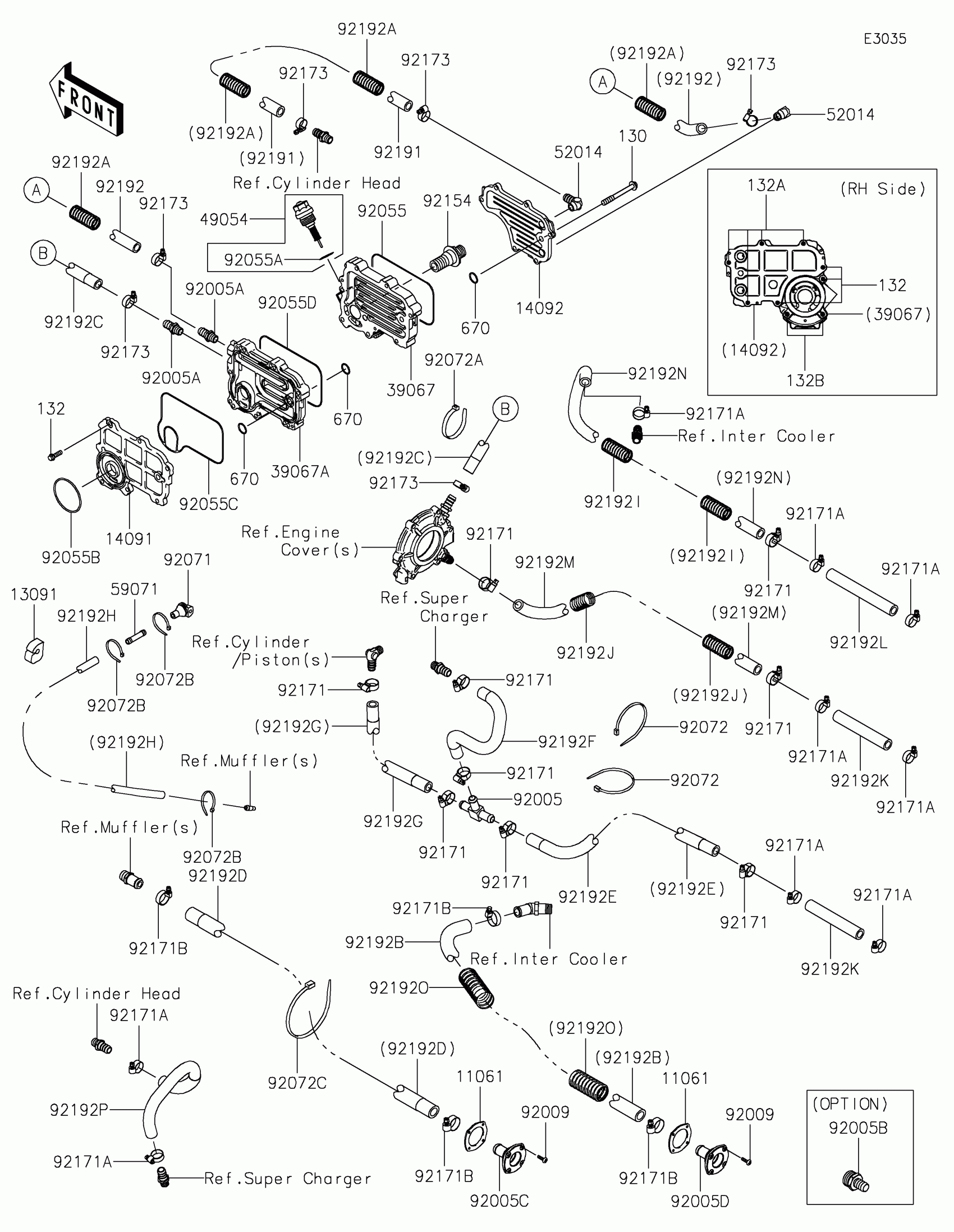

2023 Kawasaki JET SKI® Ultra® 310LX-S Cooling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-3769

1
Out of stock

13091

HOLDER

13091-3712

1

$4.14

In stock

14091

COVER,INSIDE

14091-3755

1
Out of stock

14092

COVER,OUTSIDE

14092-0765

1
Out of stock

39067

COOLER-OIL,OUTSIDE

39067-0708

1

$284.37

In stock

39067A

COOLER-OIL

39067-3704

1

$265.22

In stock

49054

THERMOSTAT

49054-3701

1
Out of stock

52014

ELBOW

52014-3711

1
Out of stock

59071

JOINT

59071-3764

1
Out of stock

92005

FITTING

92005-0755

1
Out of stock

92005A

FITTING

92005-3714

1
Out of stock

92005B

FITTING,FLUSH

92005-3748

1
Out of stock

92005C

FITTING,BLACK

92005-3770

1
Out of stock

92005D

FITTING,GRAY

92005-3771

1
Out of stock

92009

SCREW,TAPPING,4X16

92009-3849

1
Out of stock

92055

RING-O

92055-0708

1
Out of stock

92055A

RING-O

92055-0727

1
Out of stock

92055B

RING-O,58X3

92055-3767

1
Out of stock

92055C

RING-O

92055-3770

1
Out of stock

92055D

RING-O

92055-3772

1
Out of stock

92071

GROMMET

92071-3815

1
Out of stock

92072

BAND,L=188.85

92072-0105

1
Out of stock

92072A

BAND,L=200

92072-0106

1
Out of stock

92072B

BAND,L=100.08

92072-3882

1
Out of stock

92072C

BAND,L=372.24

92072-3883

1
Out of stock

92154

BOLT

92154-3719

1
Out of stock

92171

CLAMP

92171-3701

1
Out of stock

92171A

CLAMP

92171-3714

1
Out of stock

92171B

CLAMP,26MM

92171-3720

1
Out of stock

92173

CLAMP

92173-1482

1
Out of stock

92191

TUBE,12X18X520

92191-3919

1
Out of stock

92192

TUBE,OIL COOLER-ELBOW

92192-0971

1
Out of stock

92192A

TUBE,CORRUGATED,19.5X23.8X460

92192-0986

1
Out of stock

92192B

TUBE,INTER COOLER-HULL

92192-1192

1
Out of stock

92192C

TUBE,GENE.COVER-O/C

92192-1202

1
Out of stock

92192D

TUBE,16X23X950

92192-1215

1
Out of stock

92192E

TUBE,HULL-FITTING

92192-1297

1
Out of stock

92192F

TUBE,FITTING-COMPRESSOR

92192-1298

1
Out of stock

92192G

TUBE,FITTING-CYLINDER

92192-1299

1
Out of stock

92192H

TUBE,7X12X1590/30

92192-1509

1
Out of stock

92192I

TUBE,CORRUGATED,19.5X23.8X380

92192-3714

1
Out of stock

92192J

TUBE,CORRUGATED,19.5X23.8X500

92192-3783

1
Out of stock

92192K

TUBE,12X19X120

92192-3796

1
Out of stock

92192L

TUBE,12X19X150

92192-3797

1
Out of stock

92192M

TUBE,12X19X55&620

92192-3798

1
Out of stock

92192N

TUBE,HULL-I/C

92192-3800

1
Out of stock

92192O

TUBE,CORRUGATED,L=870

92192-3862

1
Out of stock

92192P

TUBE,COMPRESSOR-HEAD

92192-3866

1
Out of stock

130

BOLT-FLANGED,8X70

130BD0870

1

$2.68

In stock

132

1

$3.28

In stock

132A

1

$4.16

In stock

132B

1

$4.17

In stock

670

O RING,14MM

670D2014

1
Out of stock
