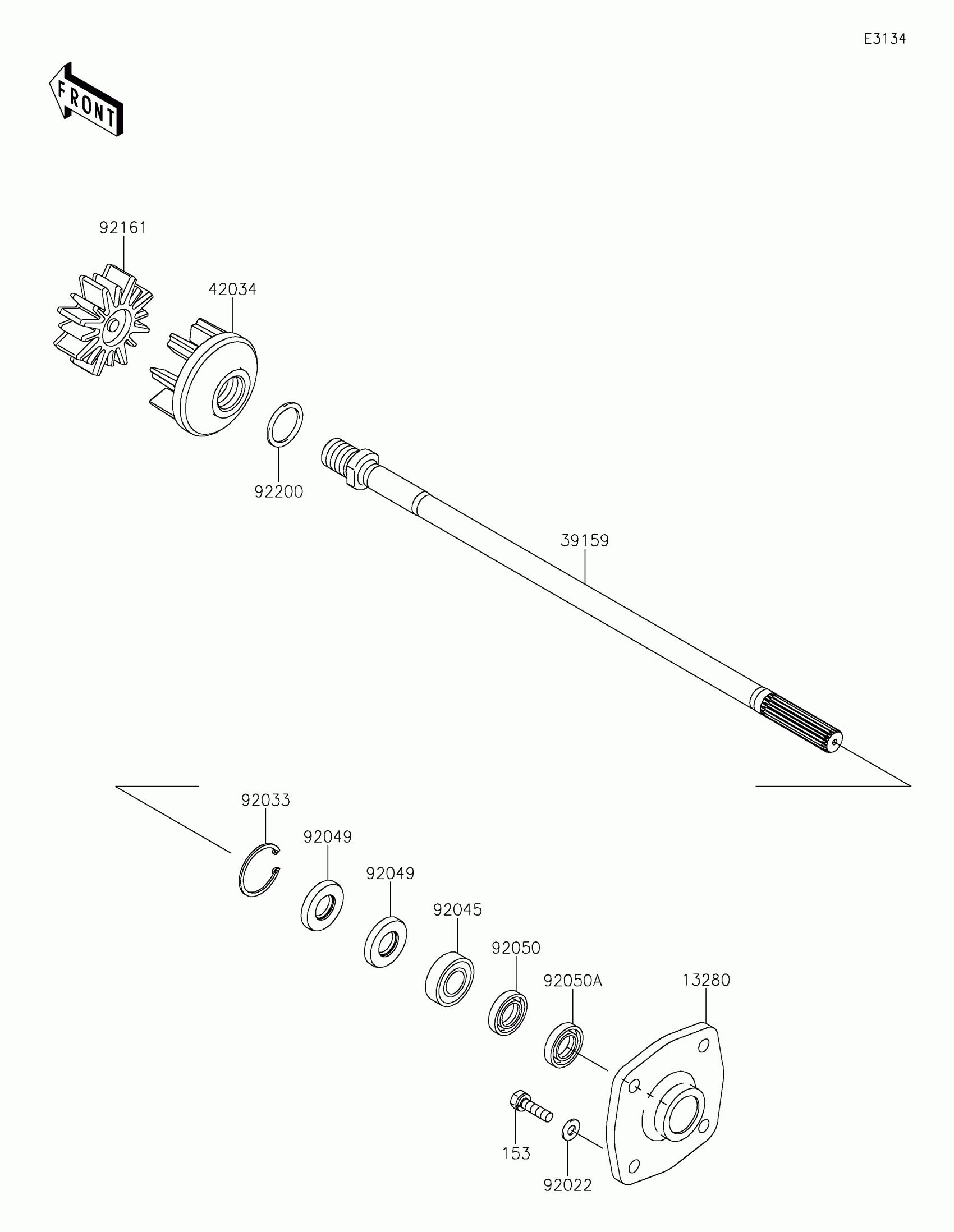

Kawasaki JET SKI® ULTRA® 310LX-S Drive Shaft Diagram

Description

Price

13280

HOLDER

13280-3756

$341.54

39159

SHAFT-DRIVE

39159-0044

$548.28

42034

COUPLING

42034-3720

$43.56

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92033

RING-SNAP,42MM

92033-3713

$16.63

92045

BEARING-BALL,60042RD

92045-3705

$28.70

92049

SEAL-OIL,S620426

92049-3707

$6.04

92050

SEAL-OIL,SCY20368

92050-502

$22.44

92050A

SEAL-OIL,SC20367

92050-503

$20.19

92161

DAMPER,COUPLING

92161-3797

Unavailable

92200

WASHER,30.5X38X2

92200-3809

$4.68

153

BOLT-WS-SMALL,8X30

153R0830

$5.19
