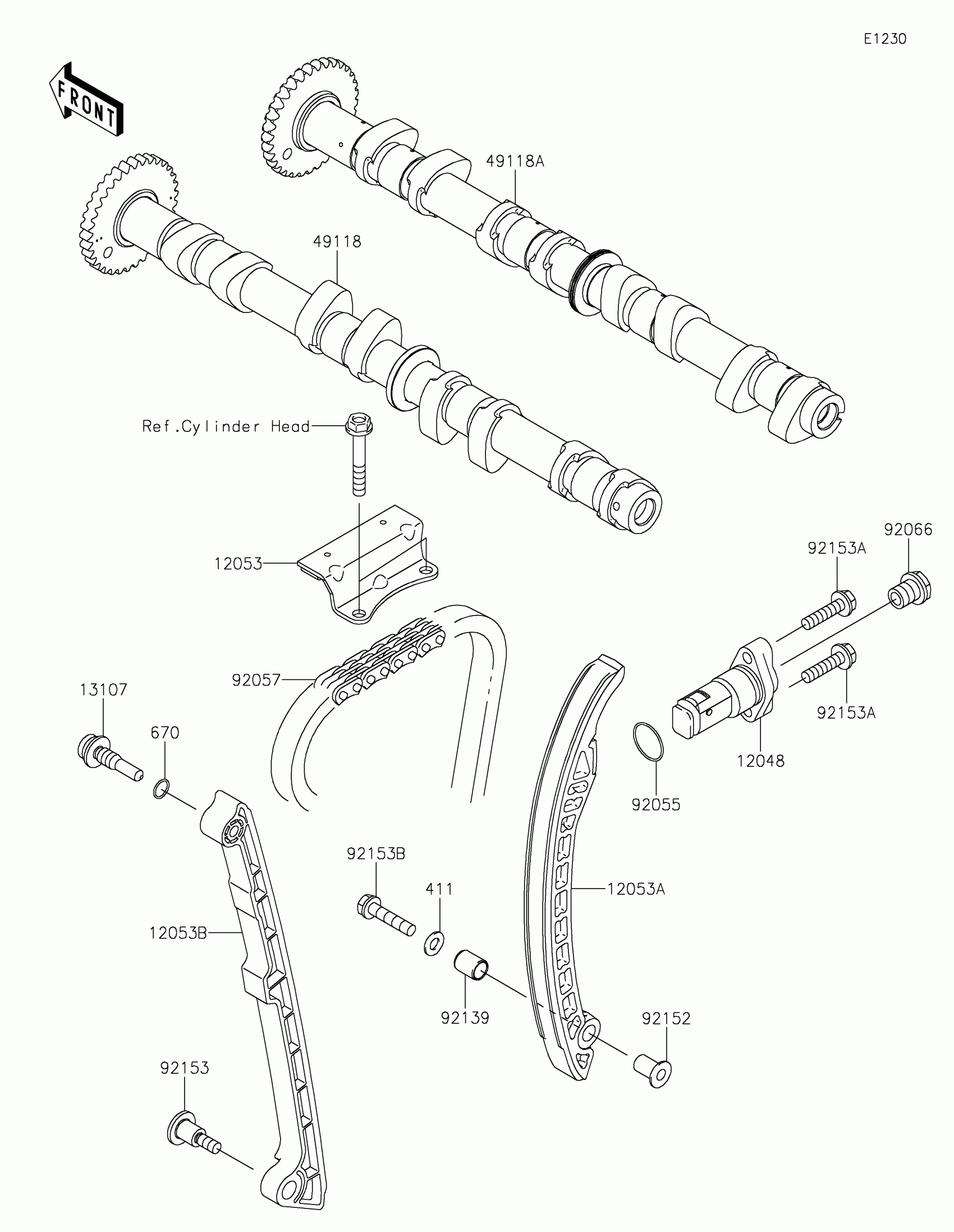

Kawasaki JET SKI® ULTRA® 310LX-S Camshaft(s)/Tensioner Diagram

Description

Price

12048

TENSIONER-ASSY

12048-0081

$197.13

12053

GUIDE-CHAIN,UPP

12053-1432

$37.49

12053A

GUIDE-CHAIN,RR

12053-3710

$151.77

12053B

GUIDE-CHAIN,FR

12053-3711

$78.55

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

49118

CAMSHAFT-COMP,EXHAUST

49118-0959

$673.07

49118A

CAMSHAFT-COMP,INTAKE

49118-0960

$673.07

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,98XRH2020-138L

92057-3715

$121.34

92066

PLUG

92066-3780

$18.20

92139

BUSHING,9X11X13.9

92139-0716

$17.14

92152

COLLAR

92152-0981

$19.64

92153

BOLT,SOCKET,6X24.5

92153-1200

$11.59

92153A

BOLT,6X25

92153-3705

$5.79

92153B

BOLT,6X28

92153-3710

$6.18

411

WASHER-PLAIN,6MM

411S0600

$2.06

670

O RING,9MM

670D1509

$4.69
