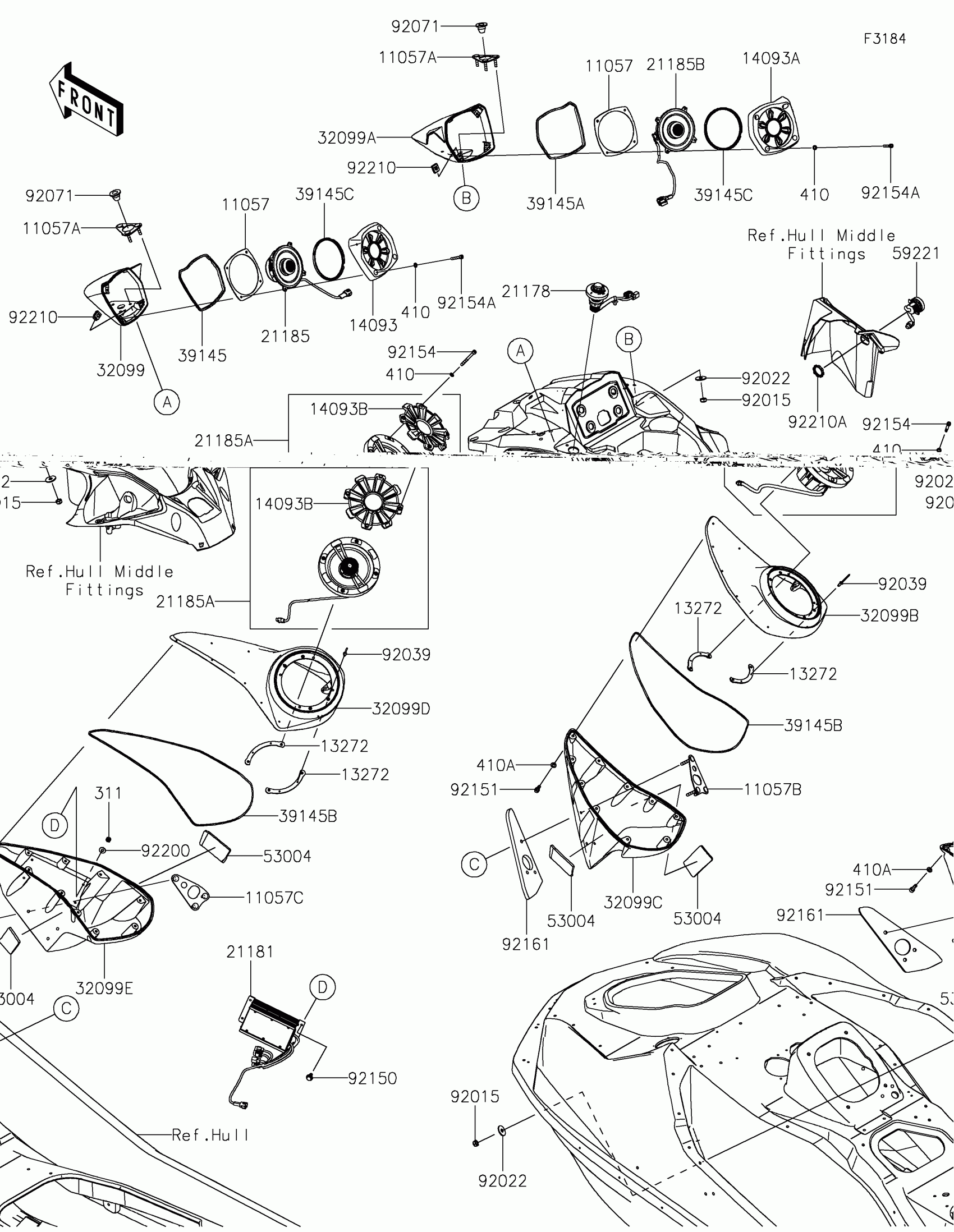

Kawasaki JET SKI® ULTRA® 310LX Other Diagram
#
11057
BRACKET,SPEAKER,UPP
11057-7386
$10.88
11057A
BRACKET,SPEAKER CASE,UPP
11057-7394
$24.17
11057B
BRACKET,SPEAKER CASE,LH,LWR
11057-7461
$25.74
11057C
BRACKET,SPEAKER CASE,RH,LWR
11057-7462
$25.74
13272
PLATE,SPEAKER,LWR
13272-3866
$10.05
14093
COVER,SPEAKER,LH,UPP
14093-1178
$15.98
14093A
COVER,SPEAKER,RH,UPP
14093-1179
$15.98
14093B
COVER,SPEAKER GRILL
14093-1186
$15.98
21178
CONTROL-SWITCH,AUDIO
21178-0005
$192.51
21181
AMPLIFIER
21181-0021
$471.04
21185
SPEAKER,LH,UPP
21185-0020
$129.79
21185A
SPEAKER,LWR
21185-0021
$221.36
21185B
SPEAKER,RH,UPP
21185-0023
$127.99
32099
CASE,SPEAKER,LH,UPP
32099-0816
$15.15
32099A
CASE,SPEAKER,RH,UPP
32099-0817
$15.15
32099B
CASE,SPEAKER,LH,LWR,UPP,S.BLK
32099-0818-839
$47.06
32099C
CASE,SPEAKER,LH,LWR,LWR,S.BLK
32099-0819-839
$38.99
32099D
CASE,SPEAKER,RH,LWR,UPP,S.BLK
32099-0820-839
$47.06
32099E
CASE,SPEAKER,RH,LWR,LWR,S.BLK
32099-0821-839
$38.99
39145
TRIM-SEAL,SPEAKER CASE,LH,UPP
39145-0731
$5.45
39145A
TRIM-SEAL,SPEAKER CASE,RH,UPP
39145-0732
$5.45
39145B
TRIM-SEAL,SPEAKER CASE,LWR
39145-0734
$10.05
39145C
TRIM-SEAL,SPEAKER,UPP
39145-0735
$3.62
53004
MAT
53004-0703
$3.51
59221
CONNECTOR-CORD,USB
59221-0020
$16.53
92015
NUT,LOCK,6MM
92015-3766
$5.91
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92039
RIVET,3.2X8
92039-3763
$1.81
92071
GROMMET
92071-3826
$3.64
92150
BOLT,5X12
92150-3760
$8.84
92151
BOLT,SOCKET,5X14
92151-1581
$1.83
92154
BOLT,SOCKET,4X40
92154-4331
$1.72
92154A
BOLT,HEX,4X25
92154-4366
$1.49
92161
DAMPER
92161-2459
$42.04
92200
WASHER,5X12X1
92200-3796
$2.15
92210
NUT,CLIP,4MM
92210-1877
$5.41
92210A
NUT
92210-1934
$1.83
311
NUT-HEX,5MM
311R0500
$1.75
410
WASHER-PLAIN-SMALL,4MM
410S0400
$1.33
410A
W-PLAIN-S,5MM
410S0500
$1.59
