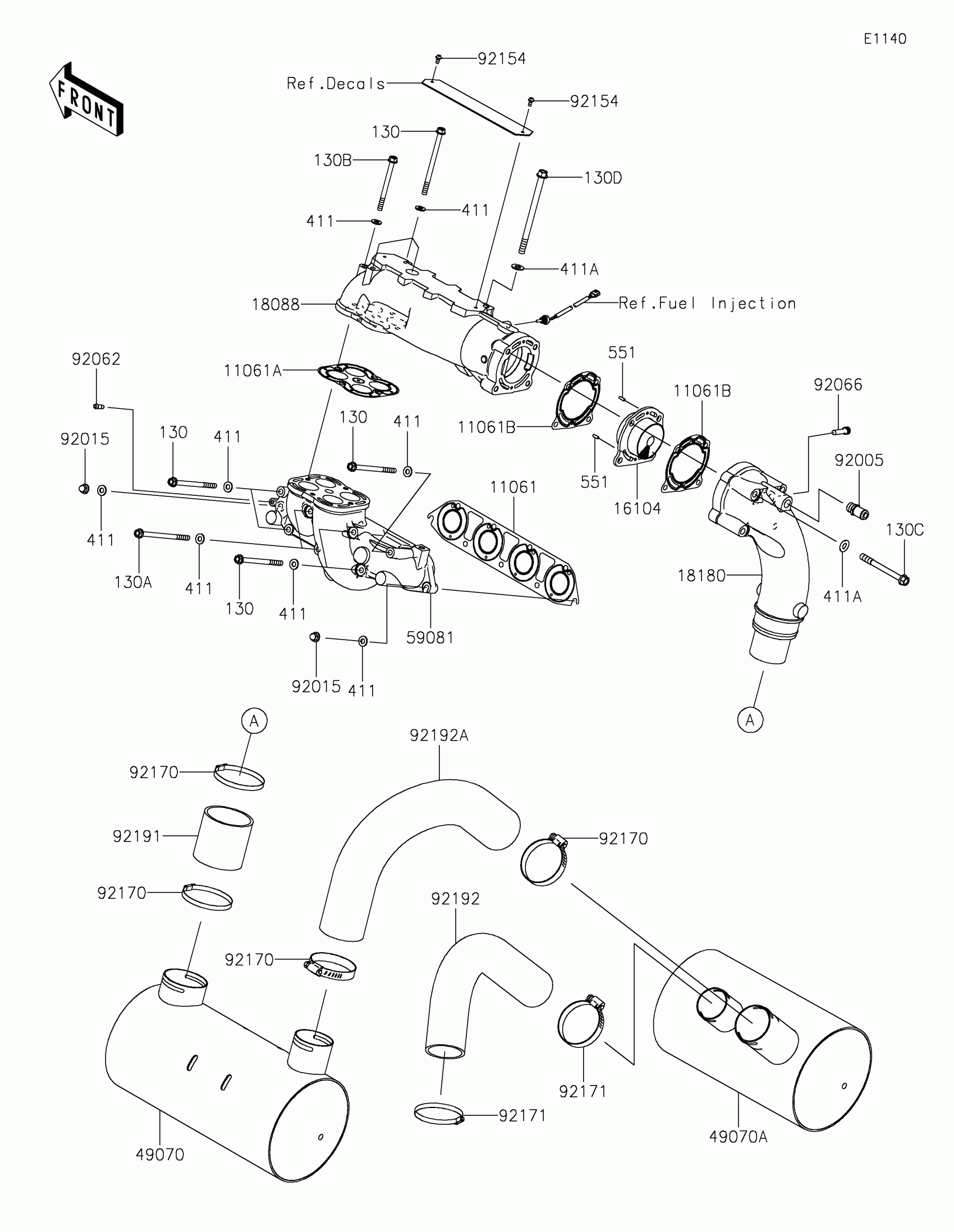

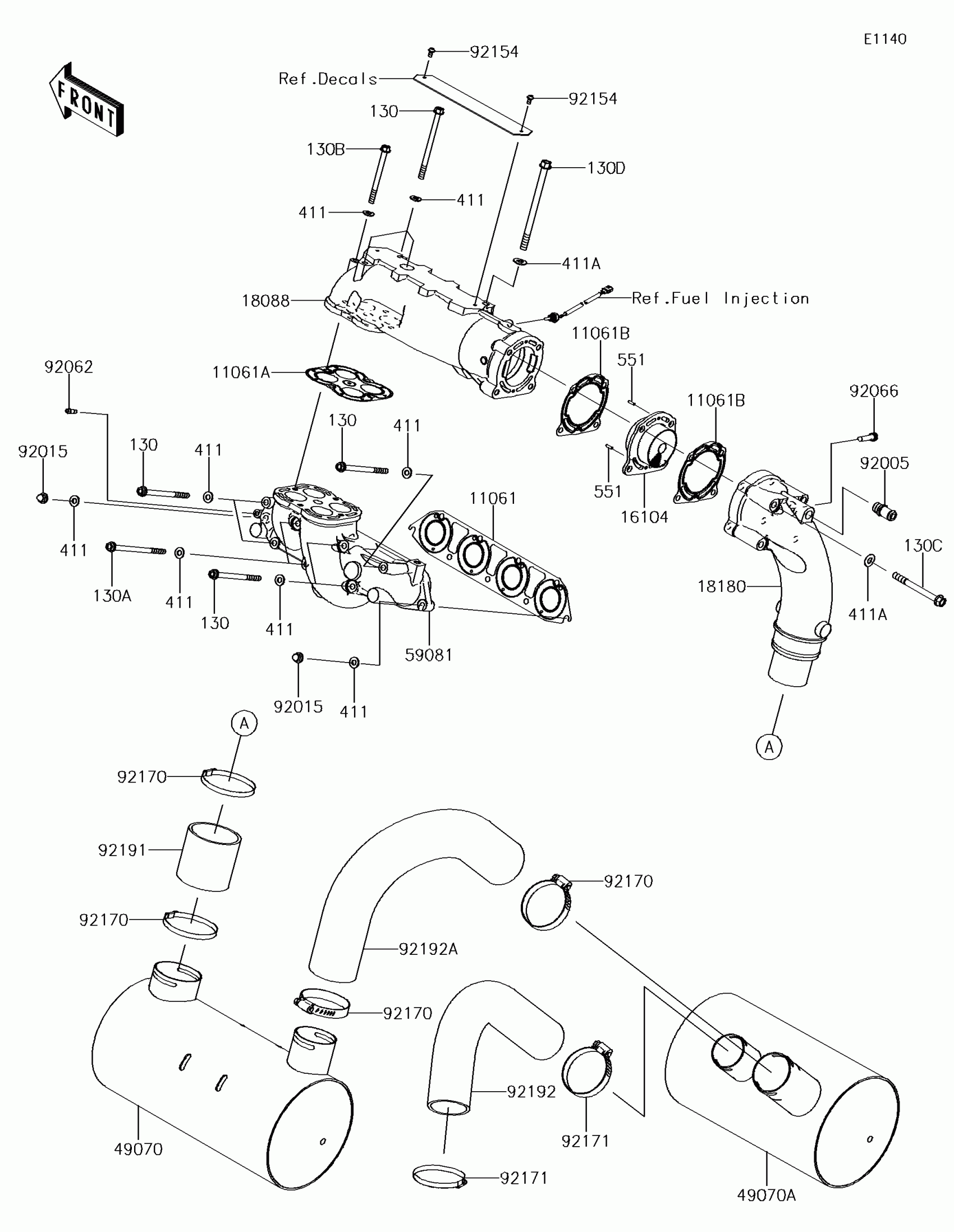

Kawasaki JET SKI® ULTRA® 310LX Muffler(s) Diagram

#

Description
Price

11061

GASKET,MANIFOLD EXHAUST

11061-3742

$41.04

11061A

GASKET,PIPE EXHAUST

11061-3762

$30.76

11061B

GASKET,MUFFLER

11061-3768

$20.74

130

BOLT-FLANGED,8X120

130CD08120

$4.40

130A

BOLT-FLANGED,8X140

130CD08140

$4.40

130B

BOLT-FLANGED,8X95

130CD0895

$3.57

130C

BOLT-FLANGED,10X100

130CD10100

$7.43

130D

BOLT-FLANGED,10X150

130CD10150

$7.37

16104

FILTER-COMP,MUFFLER

16104-0012

$161.97

18088

PIPE-EXHAUST

18088-3730

$819.11

18180

BODY-MUFFLER

18180-0825

$560.95

411

WASHER-PLAIN,8MM

411S0800

$3.09

411A

WASHER-PLAIN,10MM

411S1000

$2.67

49070

MUFFLER-COMP,1ST

49070-0749

$549.68

49070A

MUFFLER-COMP,2ND

49070-0750

$549.68

551

PIN-DOWEL

551R0412

$5.07

59081

MANIFOLD-EXHAUST

59081-3744

$925.23

92005

FITTING

92005-0728

$21.29

92015

NUT,CAP,8MM

92015-1371

$5.00

92062

NOZZLE

92062-0562

$10.60

92066

PLUG,FILTER STOPPER

92066-0764

$33.22

92154

BOLT,SOCKET,5X10

92154-0211

$2.12

92170

CLAMP

92170-3764

$10.35

92171

CLAMP

92171-3715

$13.41

92191

TUBE,PIPE EX-MUFFLER

92191-3986

$21.54

92192

TUBE,2ND-TAIL PIPE

92192-3762

$35.29

92192A

TUBE,1ST-2ND

92192-3860

$88.52
