Description

Price

11055

BRACKET,PUMP

11055-3710

$566.06

11065

CAP

11065-0888

$61.99

13107

SHAFT

13107-0764

$110.18

13107A

SHAFT

13107-3804

$45.39

13234

SHAFT-COMP

13234-3712

$65.53

14091

COVER,COOLING TUBE

14091-3808

$25.24

14091A

COVER,VANE GUIDE

14091-3817

$28.84

39112

RODEND-TIE

39112-3703

$22.16

39112A

RODEND-TIE

39112-3707

$23.25

39145

TRIM-SEAL

39145-3809

$30.12

43058

RING

43058-3735

$54.35

52014

ELBOW

52014-3711

$30.12

52014A

ELBOW

52014-3727

$38.71

59136

NOZZLE-PUMP

59136-3768

$182.11

59255

IMPELLER-COMP

59255-0001

$446.91

59266

JOINT-BALL

59266-3710

$39.65

59366

GRATE

59366-3724

$239.47

59476

NOZZLE-STRG

59476-0063

$290.21

59477

BUCKET-REVERSE

59477-0001

$231.13

59496

VANE-GUIDE

59496-3767

$504.88

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X30

92002-3726

$4.69

92009

SCREW,6X20

92009-3848

$2.61

92015

NUT,18MM

92015-1512

$18.89

92022

WASHER,8.4X23X2.5

92022-3744

$4.18

92022A

WASHER

92022-567

$2.67

92033

RING-SNAP

92033-3730

$9.11

92045

BEARING-BALL,6303R-6

92045-3740

$40.75

92045A

BEARING-BALL,62/222RS

92045-3743

$23.03

92049

SEAL-OIL

92049-3739

$28.94

92055

RING-O,49.7X2.4

92055-0183

$2.41

92055A

RING-O,12X1.5

92055-025

$4.69

92055B

RING-O,27.7X1.9

92055-1272

$5.52

92055C

RING-O

92055-3741

$3.32

92055D

RING-O,66.5X2.0

92055-3784

$7.45

92093

SEAL

92093-3749

$4.96

92122

ROLLER

92122-0044

$5.52

92139

BUSHING

92139-0767

$33.80

92139A

BUSHING

92139-3720

$8.81

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

410

W-PLAIN-S,5MM

410S0500

$1.59

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

410B

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

92150A

BOLT,8X35

92150-3792

$7.34

92150B

BOLT,FLANGED,8X30

92150-3803

$7.34

92151

BOLT,10X30

92151-3706

$6.57

92152

COLLAR,8.2X11.8X13.5

92152-1694

$8.58

92152A

COLLAR,8.2X11.8X15

92152-3703

$7.68

92153

BOLT,SOCKET,5X30

92153-3742

$2.97

92154

BOLT,FLANGED,8X25

92154-3705

$7.24

92154A

BOLT,BALL,8X30

92154-3706

$28.96

92154B

BOLT,SOCKET,8X15

92154-3707

$12.58

92154C

BOLT,BALL,6MM

92154-3710

$23.99

92154D

BOLT,SOCKET,8X18

92154-3711

$5.05

92200

WASHER,8.0X22.0X1.5

92200-0174

$2.61

92210

NUT,6MM

92210-3789

$20.70

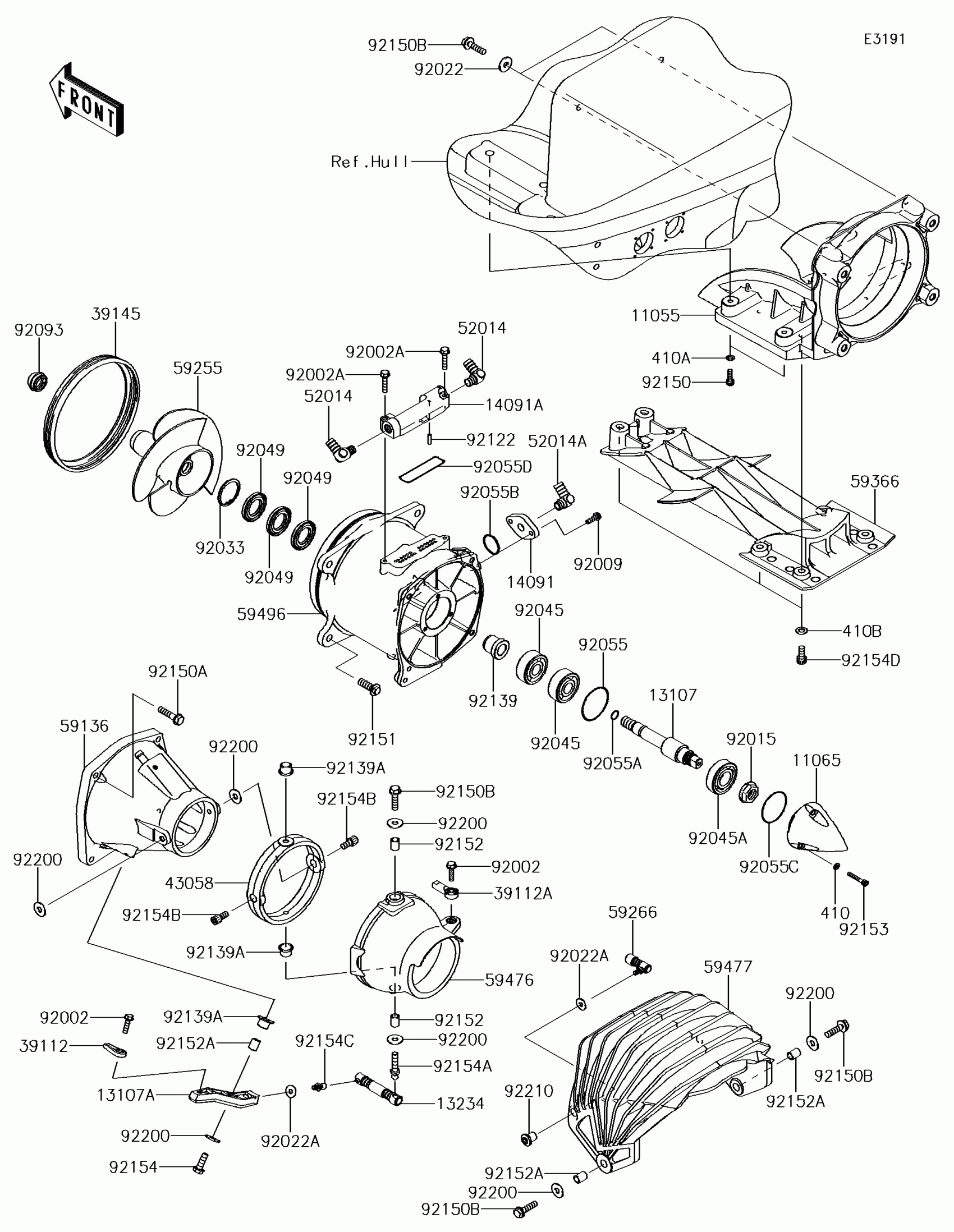

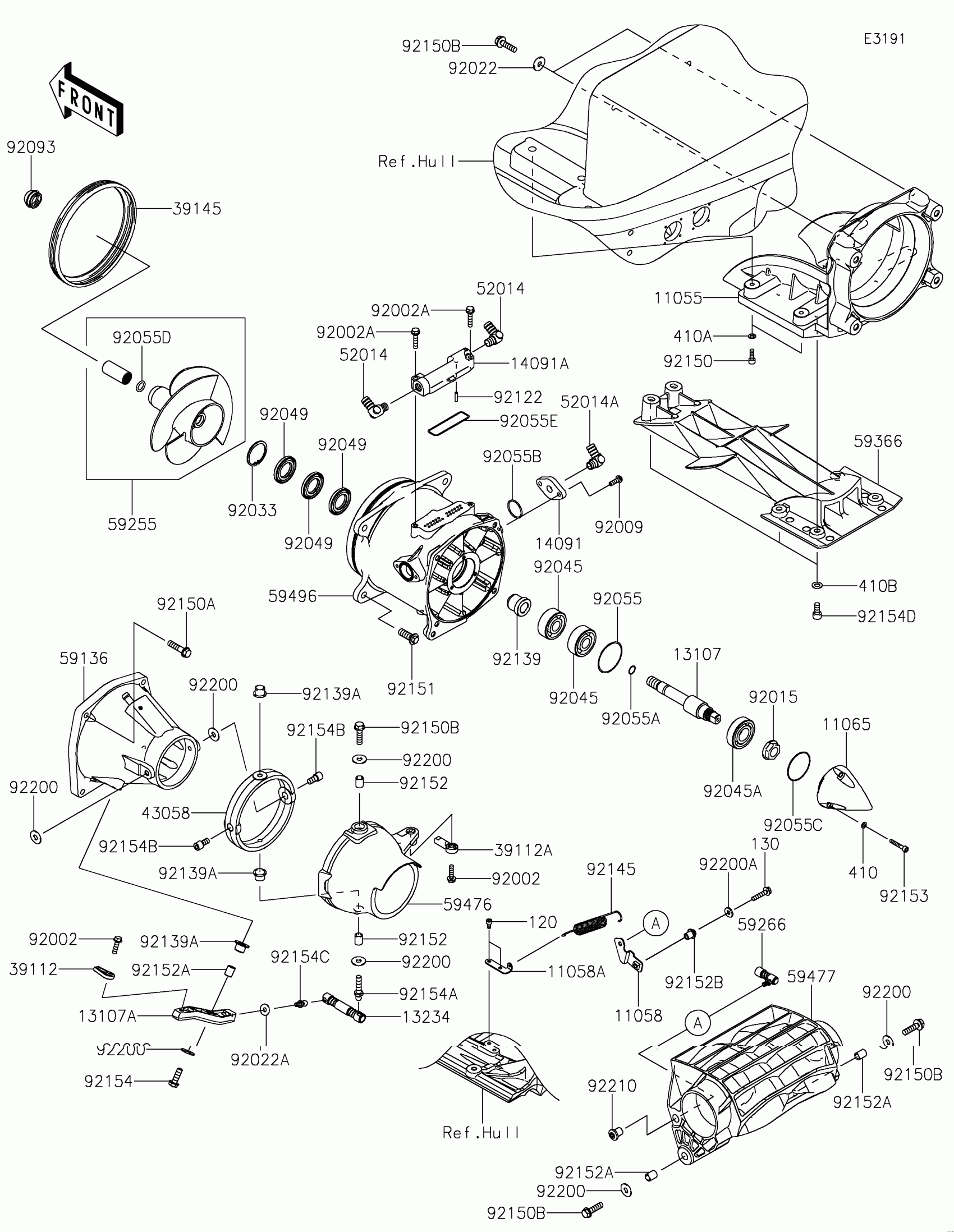

Kawasaki JET SKI® ULTRA® 310LX Jet Pump Diagram

BRACKET,PUMP

CAP

SHAFT

SHAFT

SHAFT-COMP

COVER,COOLING TUBE

COVER,VANE GUIDE

RODEND-TIE

RODEND-TIE

TRIM-SEAL

RING

ELBOW

ELBOW

NOZZLE-PUMP

IMPELLER-COMP

JOINT-BALL

GRATE

NOZZLE-STRG

BUCKET-REVERSE

VANE-GUIDE

BOLT,6X25

BOLT,6X30

SCREW,6X20

NUT,18MM

WASHER,8.4X23X2.5

WASHER

RING-SNAP

BEARING-BALL,6303R-6

BEARING-BALL,62/222RS

SEAL-OIL

RING-O,49.7X2.4

RING-O,12X1.5

RING-O,27.7X1.9

RING-O

RING-O,66.5X2.0

SEAL

ROLLER

BUSHING

BUSHING

BOLT,SOCKET,6X18

W-PLAIN-S,5MM

WASHER-PLAIN-SMALL,6MM

WASHER-PLAIN-SMALL,8MM

BOLT,8X35

BOLT,FLANGED,8X30

BOLT,10X30

COLLAR,8.2X11.8X13.5

COLLAR,8.2X11.8X15

BOLT,SOCKET,5X30

BOLT,FLANGED,8X25

BOLT,BALL,8X30

BOLT,SOCKET,8X15

BOLT,BALL,6MM

BOLT,SOCKET,8X18

WASHER,8.0X22.0X1.5

NUT,6MM
