Partiron

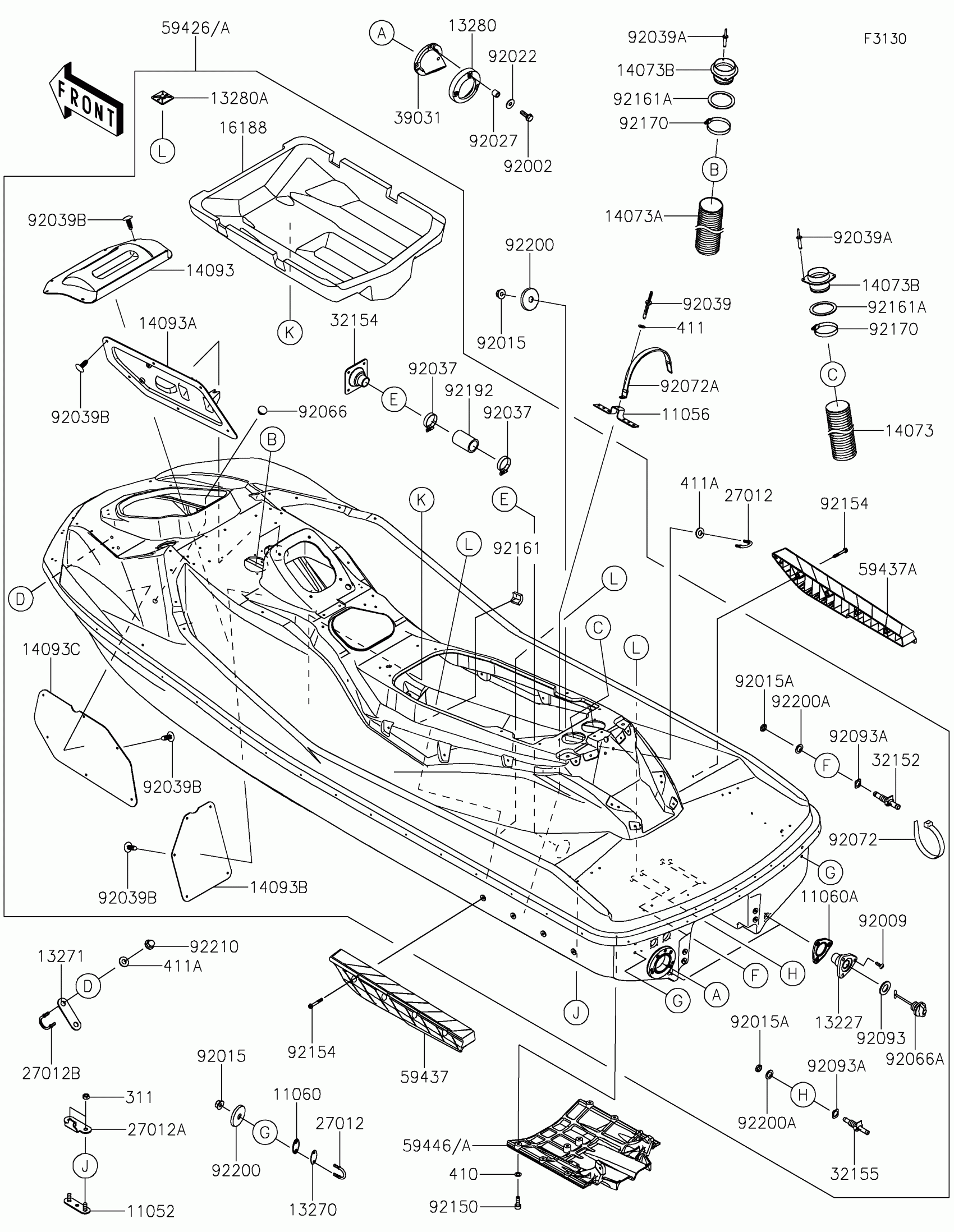

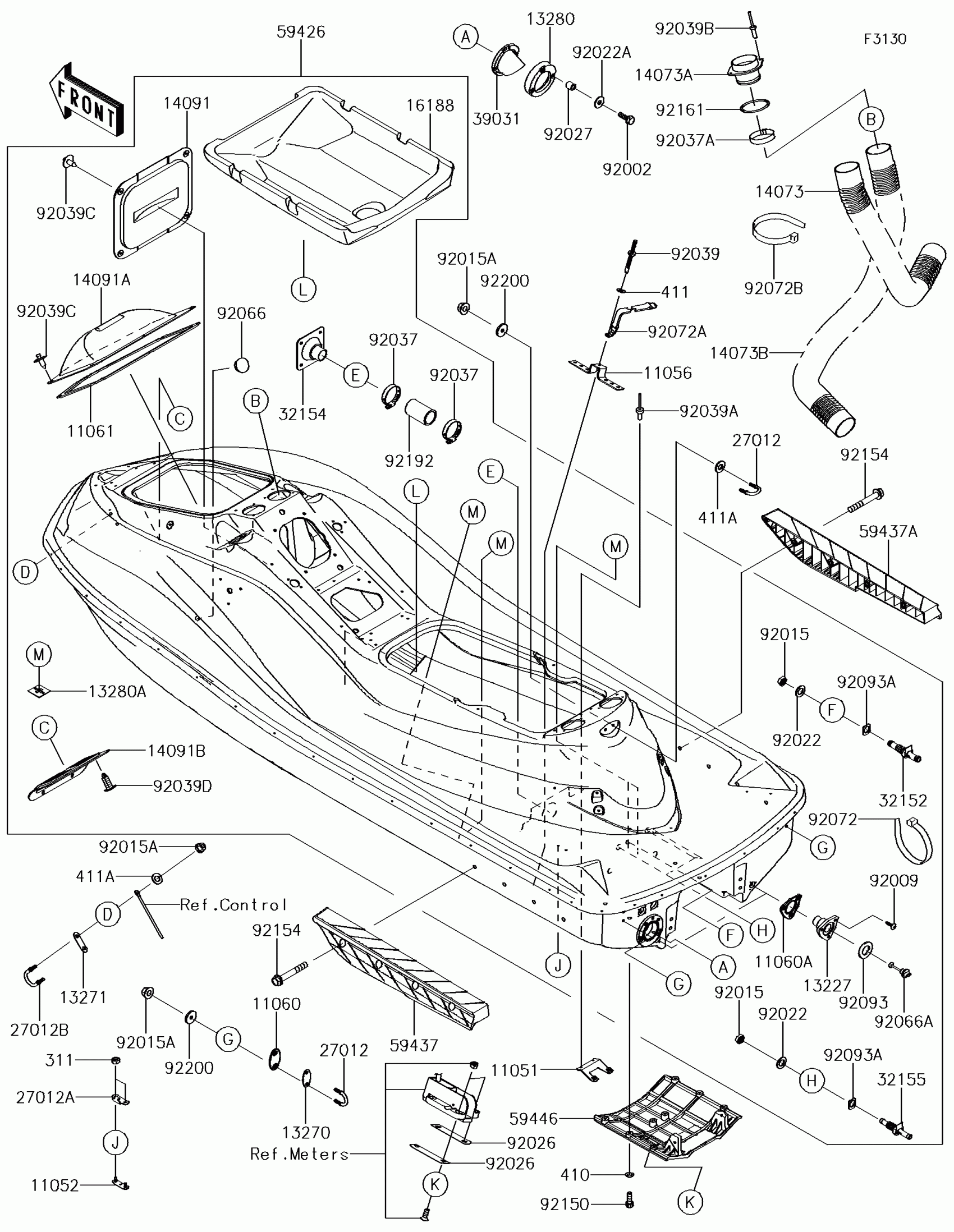

Kawasaki JET SKI® ULTRA® 310LX Hull Diagram

#

Description
Price

11051

BRACKET,BREATHER-BILGE

11051-3802

$11.97

11052

BRACKET,RR DUCT

11052-3712

$8.80

11056

BRACKET,WATER MUFFLER

11056-3722

$12.03

11060

GASKET,U HOOK,RR

11060-3800

$4.91

11060A

GASKET,DRAIN PLUG

11060-3801

$5.24

11061

GASKET,BATTERY COVER

11061-3754

$40.95

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

$6.34

13270

PLATE

13270-3860

$8.20

13271

PLATE

13271-3724

$3.85

13280

HOLDER,EXHAUST VALVE

13280-3718

$25.92

13280A

HOLDER

13280-3757

$4.21

14073

DUCT,L=800

14073-3804

$21.41

14073A

DUCT

14073-3805

$5.76

14073B

DUCT,L=1000

14073-3836

$30.54

14091

COVER,ECU

14091-3786

$15.00

14091A

COVER,BATTERY

14091-3809

$28.56

14091B

COVER,STORAGE CASE

14091-3819

$10.83

16188

FLOAT

16188-0032

$64.27

27012

HOOK

27012-3797

$32.91

27012A

HOOK

27012-3816

$8.93

27012B

HOOK

27012-3821

$25.59

32152

PIPE

32152-3749

$5.61

32154

PIPE,DRIVE SHAFT

32154-3714

$33.87

32155

PIPE,COOLING

32155-1511

$5.61

39031

CAP-END

39031-3704

$41.65

59426

HULL-COMP,BLACK/EBONY

59426-0005-43D

$5,015.71

59437

STABILIZER,LH,F.BLACK

59437-3749-6Z

$140.17

59437A

STABILIZER,RH,F.BLACK

59437-3750-6Z

$140.17

59446

COVER-JET PUMP

59446-3760

$177.73

92002

BOLT,6X20

92002-3755

$3.72

92009

SCREW,TAPPING,4X16

92009-3849

$1.39

92015

NUT,20MM

92015-1589

$5.88

92015A

NUT,FLANGED,8MM

92015-1933

$3.12

92022

WASHER,20.3X36X2.3

92022-1116

$6.82

92022A

WASHER

92022-567

$2.19

92026

SPACER

92026-0780

$7.93

92027

COLLAR,6.2X10X10

92027-3705

$8.63

92037

CLAMP

92037-3009

$3.25

92037A

CLAMP

92037-3738

$5.70

92039

RIVET

92039-3741

$1.42

311

NUT-HEX,6MM

311R0600

$0.75

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.80

411

WASHER-PLAIN,5MM

411S0500

$0.90

411A

WASHER-PLAIN,8MM

411S0800

$2.49

92039A

RIVET

92039-3755

$5.71

92039B

RIVET

92039-3775

$1.46

92039C

RIVET

92039-3785

$3.69

92039D

RIVET

92039-3788

$2.71

92066

PLUG

92066-1306

$4.34

92066A

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

$13.75

92072

BAND,L=188.85

92072-0105

$1.51

92072A

BAND,314X18

92072-3814

$16.78

92072B

BAND,L=608.22

92072-3884

$2.66

92093

SEAL

92093-3720

$2.92

92093A

SEAL

92093-3784

$3.10

92150

BOLT,SOCKET,6X18

92150-3775

$3.72

92154

BOLT,FLANGED,8X55

92154-1123

$9.42

92161

DAMPER

92161-3769

$3.37

92192

TUBE,39X51X78

92192-3756

$10.00

92200

WASHER

92200-3779

$4.66
