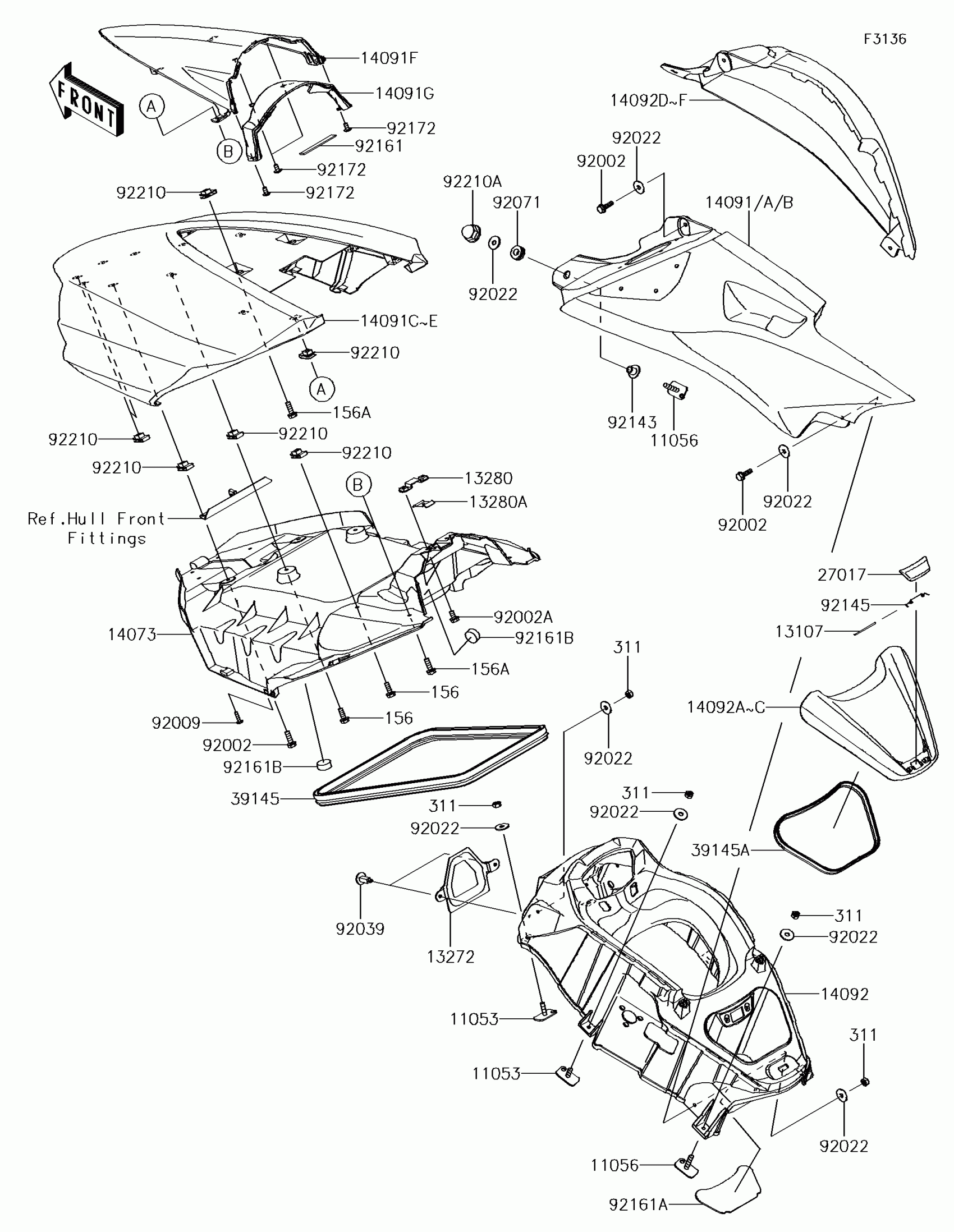

Kawasaki JET SKI® ULTRA® 310LX Hull Middle Fittings Diagram

#

Description
Price

11053

BRACKET

11053-3776

$9.17

11056

BRACKET

11056-3724

$4.46

13107

SHAFT

13107-3790

$2.98

13272

PLATE,INTAKE COVER

13272-1221

$12.17

13280

HOLDER,ROD

13280-3749

$11.80

13280A

HOLDER,ROD

13280-3751

$4.27

14073

DUCT,HATCH,INNER

14073-3837

$165.09

14091A

COVER,SIDE,LH,C.L.GREEN

14091-3780-57A

$130.38

14091D

COVER,FR HATCH,C.L.GREEN

14091-3824-57A

$237.44

14091F

COVER,METER,FR

14091-3825

$46.74

14091G

COVER,METER,RR

14091-3826

$215.76

14092

COVER,HANDLE,F.BLACK

14092-1154-6Z

$145.31

14092B

COVER,CENTER STORAGE,C.L.GREEN

14092-3701-57A

$70.72

14092E

COVER,SIDE,RH,C.L.GREEN

14092-3708-57A

$130.38

156

BOLT-WP,6X18

156R0618

$2.84

27017

LOCK,CENTER STORAGE

27017-3726

$8.27

39145

TRIM-SEAL

39145-3793

$123.36

39145A

TRIM-SEAL,L=720

39145-3802

$44.21

92002

BOLT,6X20

92002-3755

$3.57

92002A

BOLT,6X12

92002-3763

$3.57

92009

SCREW,TAPPING,4X16

92009-3849

$1.20

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92039

RIVET

92039-3788

$2.34

92071

GROMMET

92071-3716

$4.39

92143

COLLAR

92143-3750

$6.73

92145

SPRING

92145-3729

$4.24

92161

DAMPER,16X100X3.18

92161-0968

$1.63

92161A

DAMPER,CENTER STORAGE

92161-3773

$4.63

92161B

DAMPER

92161-3790

$3.54

92172

SCREW,5X12

92172-3714

$1.43

92210

NUT,6MM

92210-3768

$4.39

92210A

NUT,CAP,6MM

92210-3785

$4.27

156A

BOLT-WP,6X20

156R0620

$2.76

311

NUT-HEX,6MM

311R0600

$0.65
