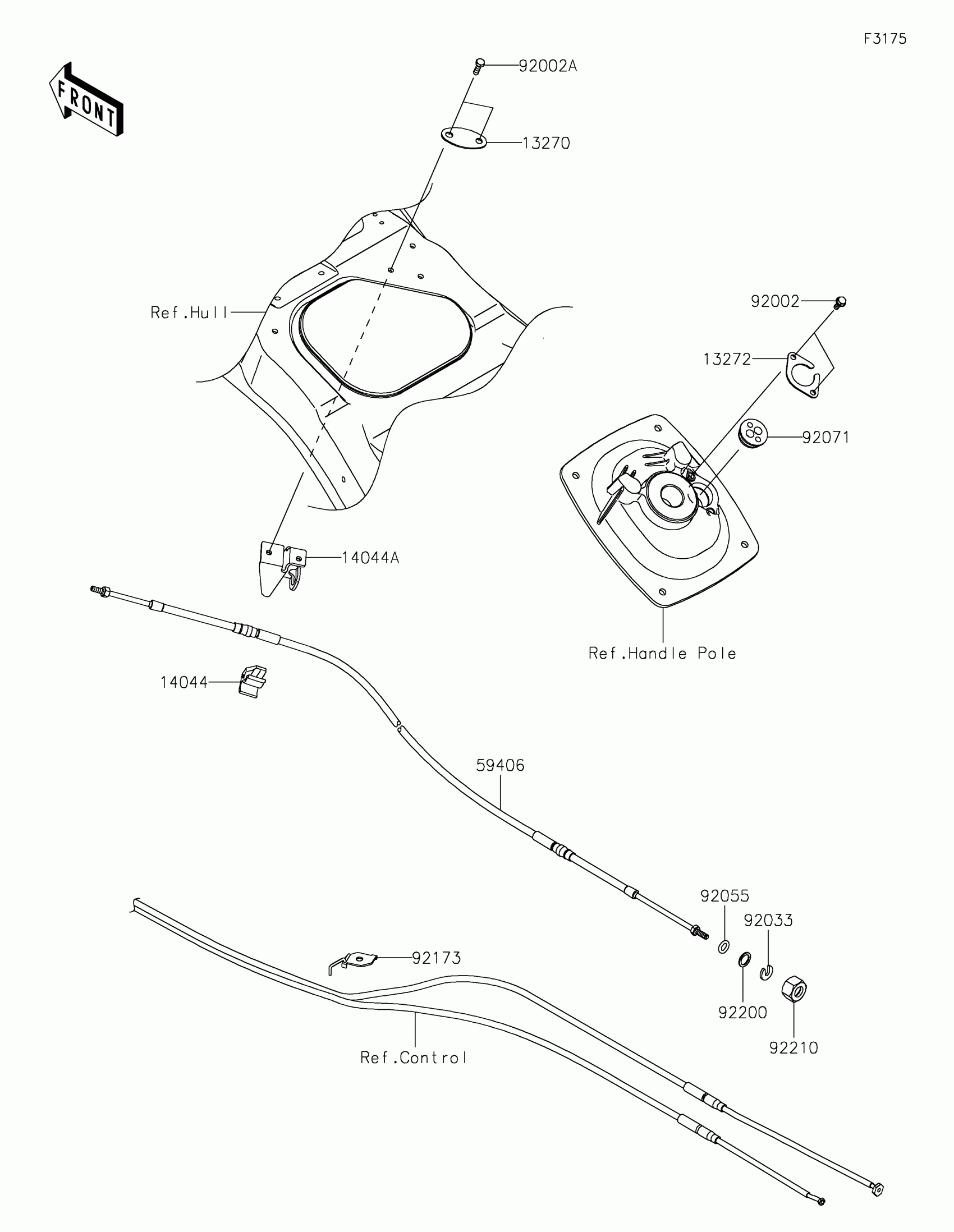

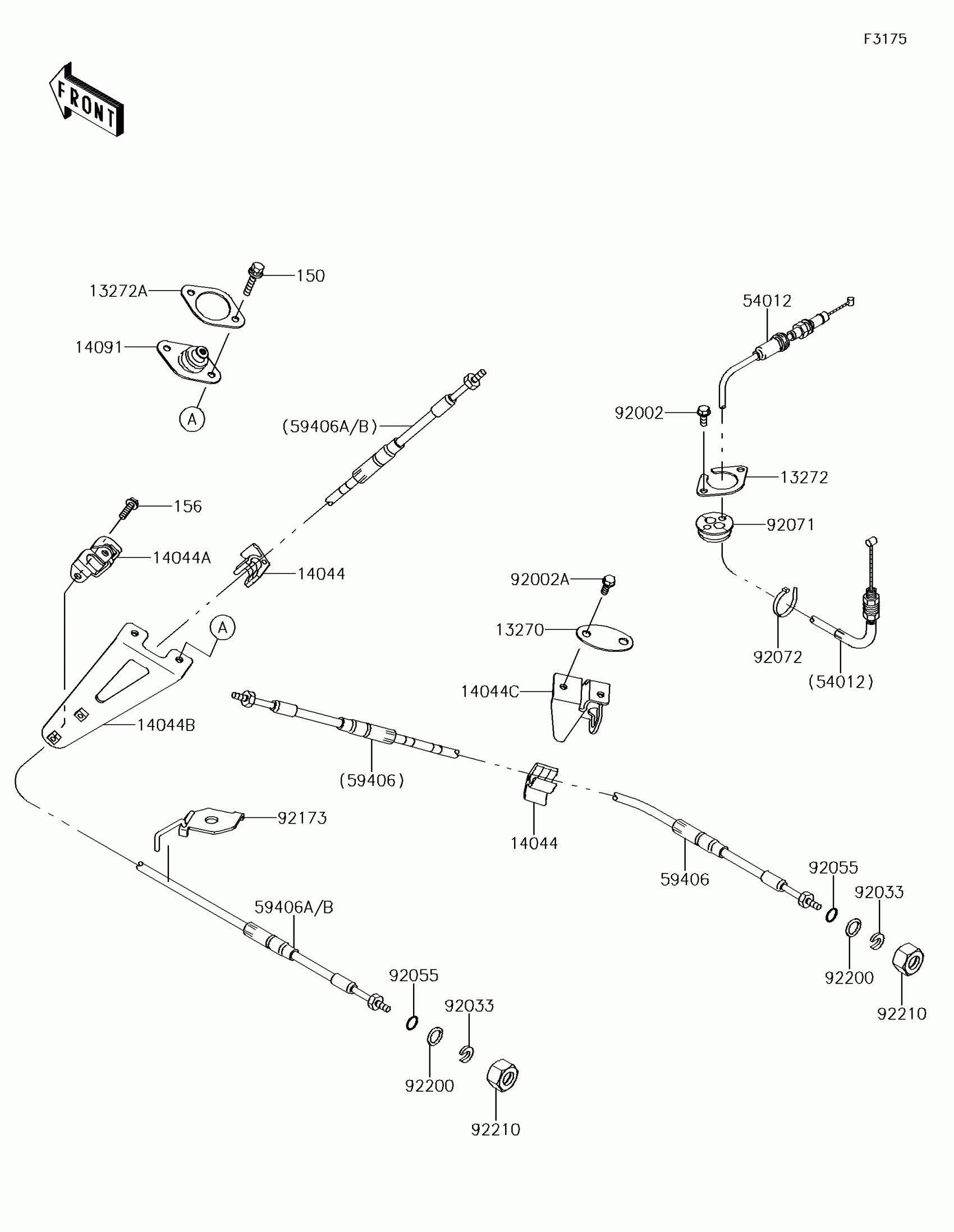

Kawasaki JET SKI® ULTRA® 310LX Cables Diagram

Description

Price

13270

PLATE

13270-3860

$8.38

13272

PLATE

13272-3729

$14.32

14044

HOLDER-CABLE

14044-3765

$3.57

14044A

HOLDER-CABLE,STEERING

14044-3769

$17.06

59406

CABLE-STRG

59406-0003

$136.45

92002

BOLT,6X16

92002-3728

$4.69

92002A

BOLT,6X20

92002-3755

$4.69

92033

RING-SNAP

92033-3735

$7.69

92055

RING-O

92055-3778

$1.34

92071

GROMMET,HARNESS

92071-3790

$9.64

92173

CLAMP

92173-3704

$25.44

92200

WASHER,14.5X20X1.5

92200-3793

$2.61

92210

NUT,22MM

92210-3772

$13.60
