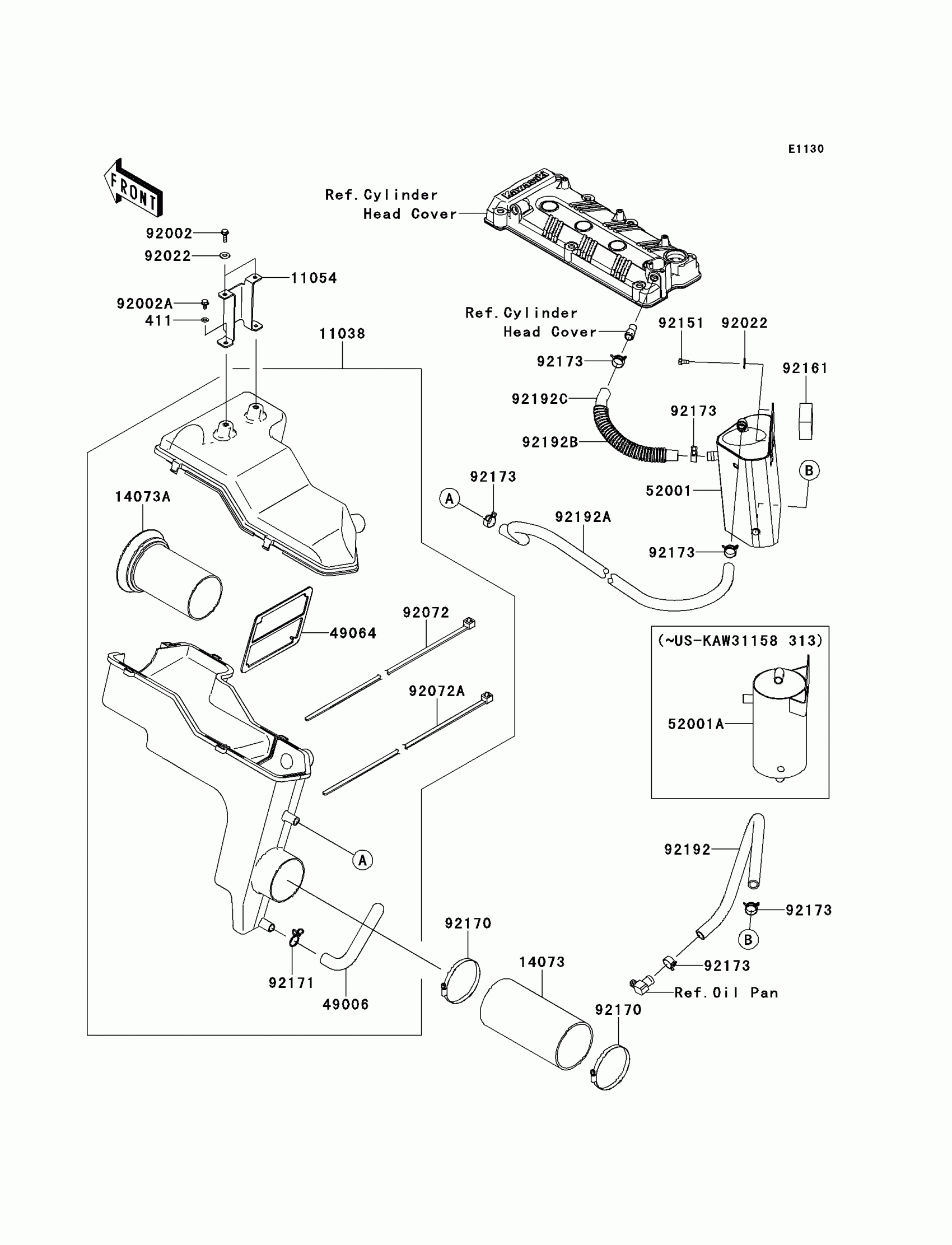

Kawasaki JET SKI® Ultra® 300X Intake Silencer Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X14

132BD0614

$3.67

411

WASHER-PLAIN,6MM

411S0600

$2.06

11038

CASE-ASSY-AIR FILTER

11038-3710

$181.94

11054

BRACKET,AIR BOX

11054-3745

$48.51

14073

DUCT,A/C-COMPRESSOR

14073-3838

Unavailable

14073A

DUCT,INLET

14073-3844

$35.64

49006

BOOT

49006-3720

$5.16

49064

FILTER-AIR

49064-3704

$28.05

52001

TANK-OIL,SEPARATOR

52001-3741

$71.71

92002

BOLT,6X20

92002-3755

$4.69

92002A

BOLT,6X12

92002-3763

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92072

BAND,L=914

92072-0708

$3.85

92072A

BAND,L=619

92072-0709

$3.29

92170

CLAMP

92170-3760

$11.56

92171

CLAMP,TUBE

92171-3710

Unavailable

92171A

CLAMP,BOOT

92171-3711

$3.87

92192

TUBE,OIL TANK-OIL PAN

92192-1067

$34.79

92192A

TUBE,OIL TANK-A/C

92192-3769

$42.01

92192B

TUBE,CORRUGATED,L=160

92192-3832

$4.12

92192C

TUBE,HEAD-OIL TANK

92192-3854

$8.17
