Description

Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$10.30

11053

BRACKET

11053-3776

$9.48

11056

BRACKET

11056-3703

$34.11

11056A

BRACKET

11056-3725

$140.05

11056B

BRACKET

11056-3726

$112.55

13107

SHAFT,FRONT HINGE

13107-3802

$24.78

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.66

14091A

COVER,FR,INSIDE

14091-3828

$73.33

14092

COVER,FR,TOP,C.L.GREEN

14092-0775-367

$115.61

27016

LOCK-ASSY,HATCH

27016-3761

$49.23

32099

CASE,FIRE EXTINGUISHER

32099-3769

$19.37

39012

CASE-STORAGE

39012-3744

Unavailable

39145

TRIM-SEAL,L=1627

39145-3807

$23.84

46102

ROD,HATCH LOCK

46102-3734

$9.43

56001

MIRROR-ASSY,LH,F.BLACK

56001-3727-6Z

$147.68

56001A

MIRROR-ASSY,RH,F.BLACK

56001-3728-6Z

$147.68

92002

BOLT,6X30

92002-3726

$4.69

92009

SCREW,TAPPING,6X20

92009-3842

$1.83

92015

NUT,LOCK,6MM

92015-3766

$5.91

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92028

BUSHING

92028-3765

$3.29

92028A

BUSHING

92028-3770

$2.71

92036

RING,SNAP

92036-518

$1.56

92039

RIVET

92039-3783

$8.05

92039A

RIVET

92039-3788

$3.39

92043

PIN,6X27.5

92043-3732

$9.97

92043A

PIN,6X33

92043-3748

$11.20

92043B

PIN

92043-3760

Unavailable

92152

COLLAR,8.2X14X16.2

92152-0979

$13.49

92160

DAMPER

92160-3814

$7.91

92160A

DAMPER

92160-3821

$8.86

92161

DAMPER,10X50X4

92161-1373

$1.19

92161A

DAMPER

92161-3739

$6.18

92161B

DAMPER

92161-3747

$5.12

92161C

DAMPER,HATCH

92161-3778

Unavailable

92172

SCREW,3X8

92172-3716

$1.63

92200

WASHER,6.5X16X1.0

92200-3712

$3.73

92200A

WASHER,6.5X14.5X1.5

92200-3775

$1.74

156

BOLT-WP,5X16

156R0516

$2.97

311

NUT-HEX,6MM

311R0600

$0.70

411

WASHER-PLAIN,6MM

411S0600

$2.06

92200B

WASHER,8.5X32X2

92200-3786

$5.79

92210

NUT,SPEED,6MM

92210-3739

$1.86

92210A

NUT,LOCK,8MM

92210-3742

$6.57

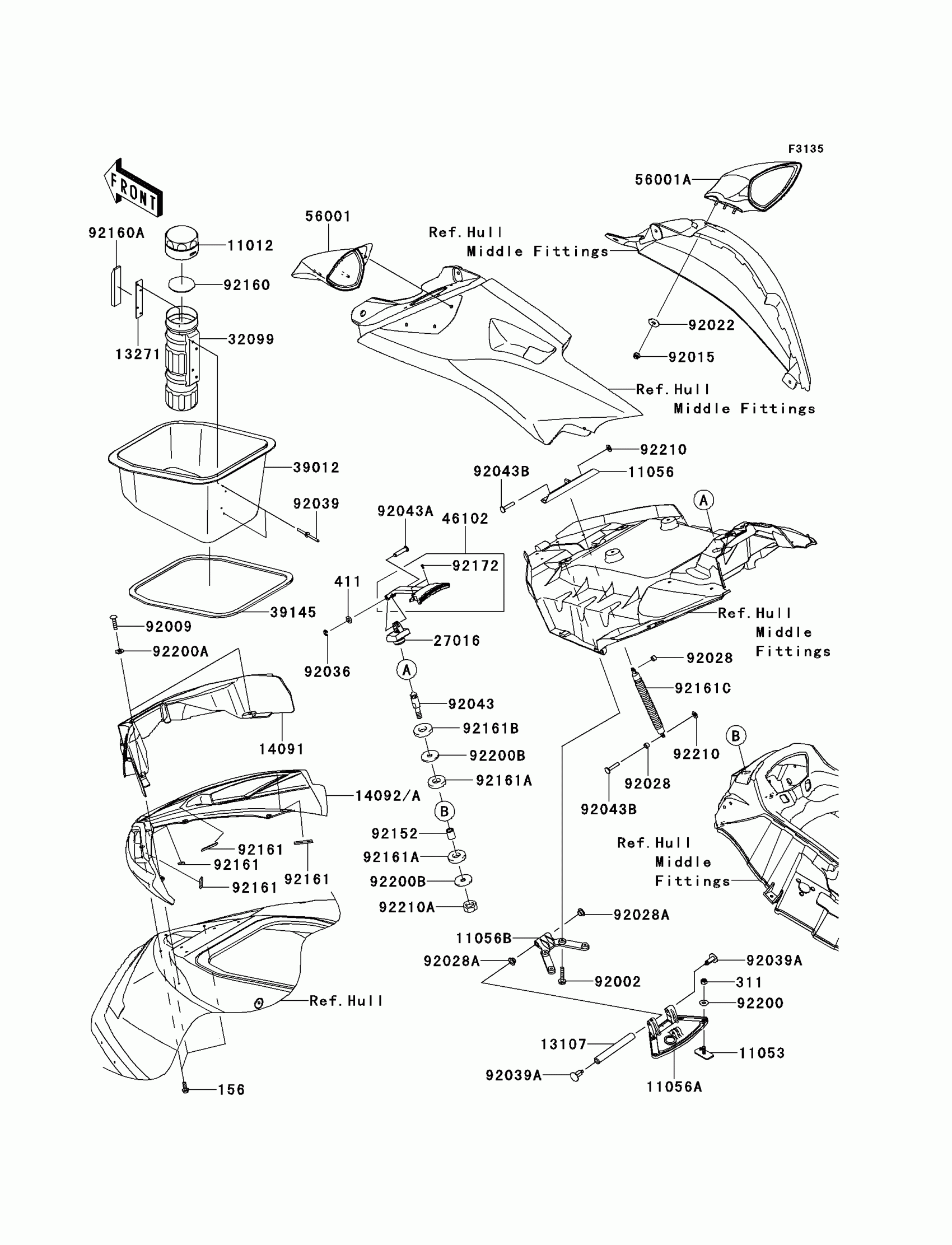

Kawasaki JET SKI® Ultra® 300X Hull Front Fittings Diagram

CAP,FIRE EXTINGUISHER

BRACKET

BRACKET

BRACKET

BRACKET

SHAFT,FRONT HINGE

PLATE,FIRE EXTINGUISHER

COVER,FR,INSIDE

COVER,FR,TOP,C.L.GREEN

LOCK-ASSY,HATCH

CASE,FIRE EXTINGUISHER

CASE-STORAGE

TRIM-SEAL,L=1627

ROD,HATCH LOCK

MIRROR-ASSY,LH,F.BLACK

MIRROR-ASSY,RH,F.BLACK

BOLT,6X30

SCREW,TAPPING,6X20

NUT,LOCK,6MM

WASHER,6.5X20X1.5

BUSHING

BUSHING

RING,SNAP

RIVET

RIVET

PIN,6X27.5

PIN,6X33

PIN

COLLAR,8.2X14X16.2

DAMPER

DAMPER

DAMPER,10X50X4

DAMPER

DAMPER

DAMPER,HATCH

SCREW,3X8

WASHER,6.5X16X1.0

WASHER,6.5X14.5X1.5

BOLT-WP,5X16

NUT-HEX,6MM

WASHER-PLAIN,6MM

WASHER,8.5X32X2

NUT,SPEED,6MM

NUT,LOCK,8MM
