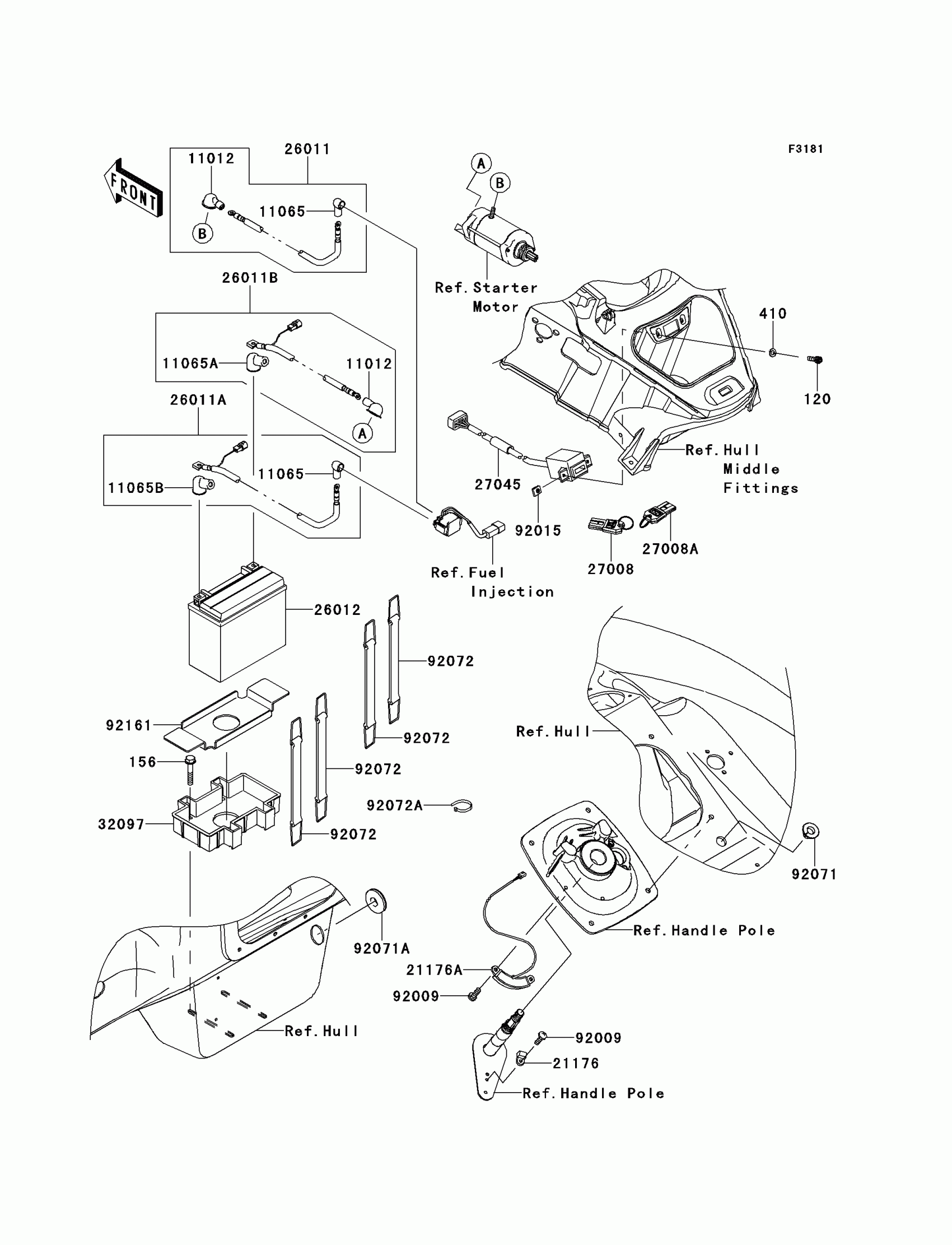

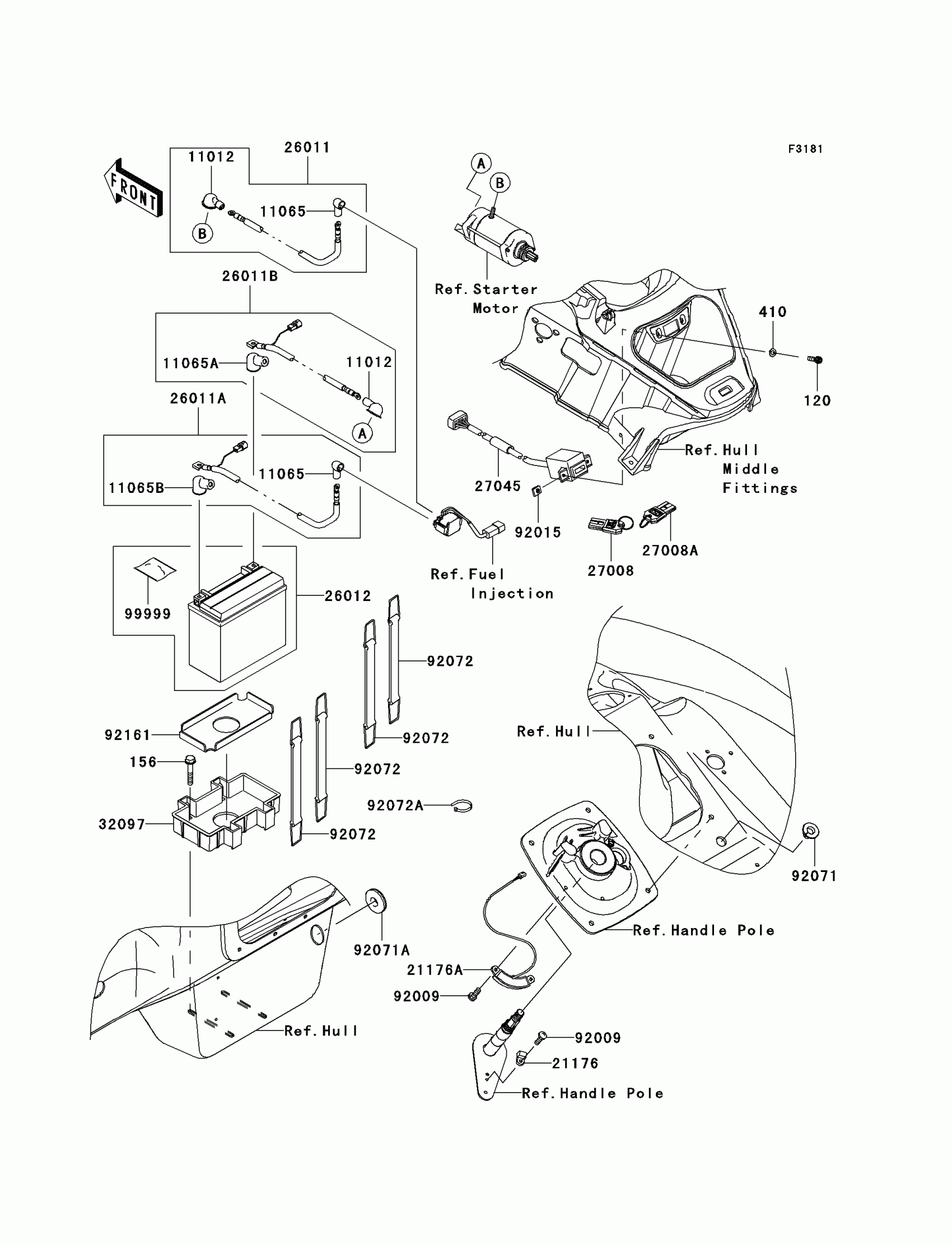

Kawasaki JET SKI® Ultra® 300X Electrical Equipment Diagram

Description

Price

120

BOLT-SOCKET,5X16

120R0516

$0.77

156

BOLT-WP,6X35

156R0635

$4.69

410

W-PLAIN-S,5MM

410S0500

$1.59

11012

CAP

11012-3004

$7.55

11065

CAP

11065-3716

$3.70

11065A

CAP,TERMINAL

11065-3729

$9.26

11065B

CAP,TERMINAL

11065-3732

$11.82

21176

SENSOR,MAGNET

21176-3746

$29.40

21176A

SENSOR,HOLE IC

21176-3748

$156.12

26011

WIRE-LEAD,RELAY-STARTER

26011-0723

$98.35

26011A

WIRE-LEAD,RELAY-BATTERY(+)

26011-0724

$69.60

26011B

WIRE-LEAD,BATTERY(-)-STARTER

26011-3915

$157.70

26012

BATTERY,YTX20L-BS,12V 18AH

26012-3730

Unavailable

27008

FPO MODE KEY

27008-3767

Unavailable

27008A

SLO MODE KEY

27008-3768

$74.54

27045

SWITCH-ASSY

27045-3755

Unavailable

32097

CASE-BATTERY

32097-3709

$13.63

92009

SCREW,5X16

92009-3868

$1.54

92015

NUT,CLIP,5MM

92015-3830

$7.91

92071

GROMMET

92071-3826

$3.64

92071A

GROMMET

92071-3840

$5.60

92072

BAND,340X22

92072-3805

$14.90

92072A

BAND,L=100.08

92072-3882

$2.02

92161

DAMPER,BATTERY CASE

92161-3762

$8.30

99999

BOLT NUT KIT

99999-3719

Unavailable
