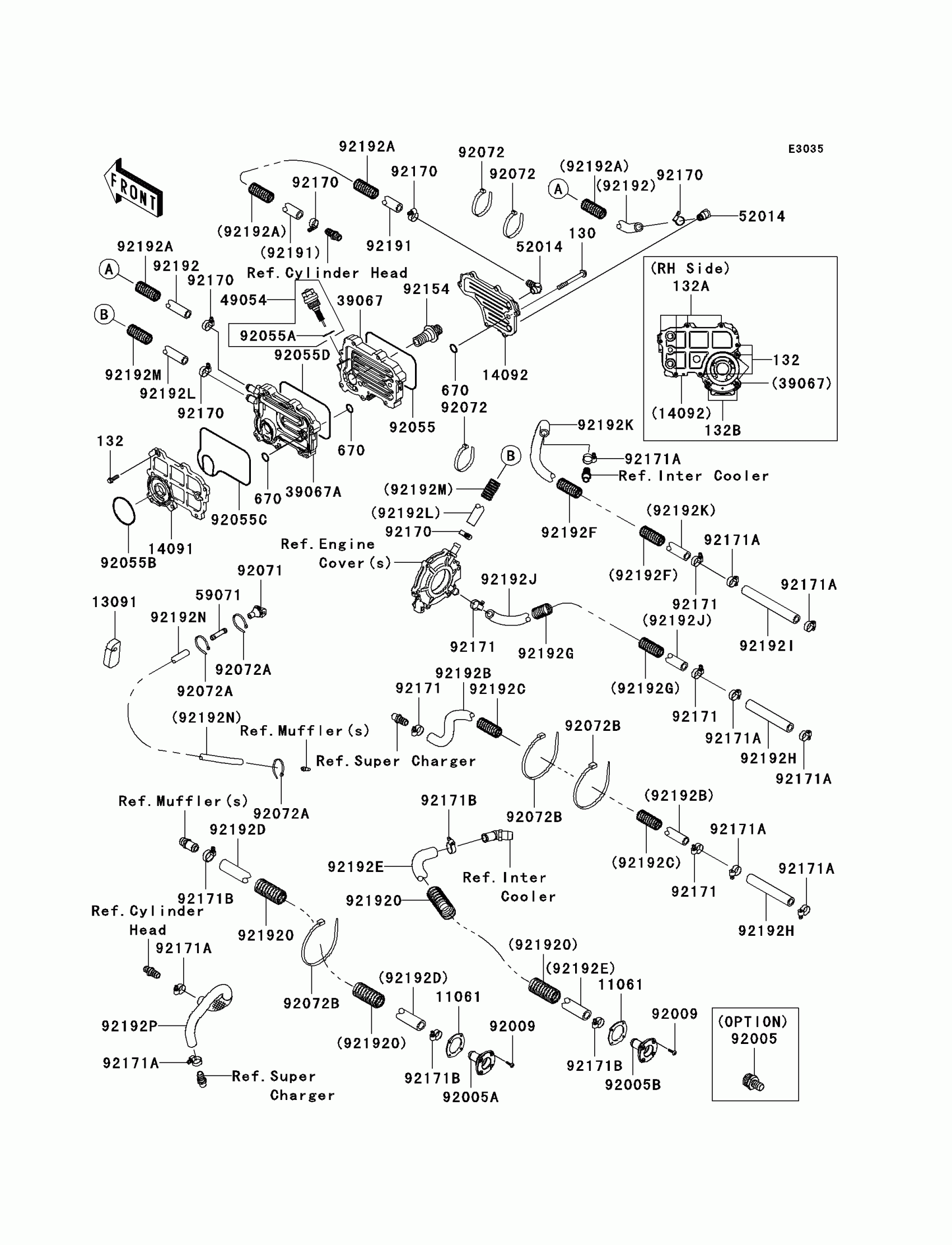

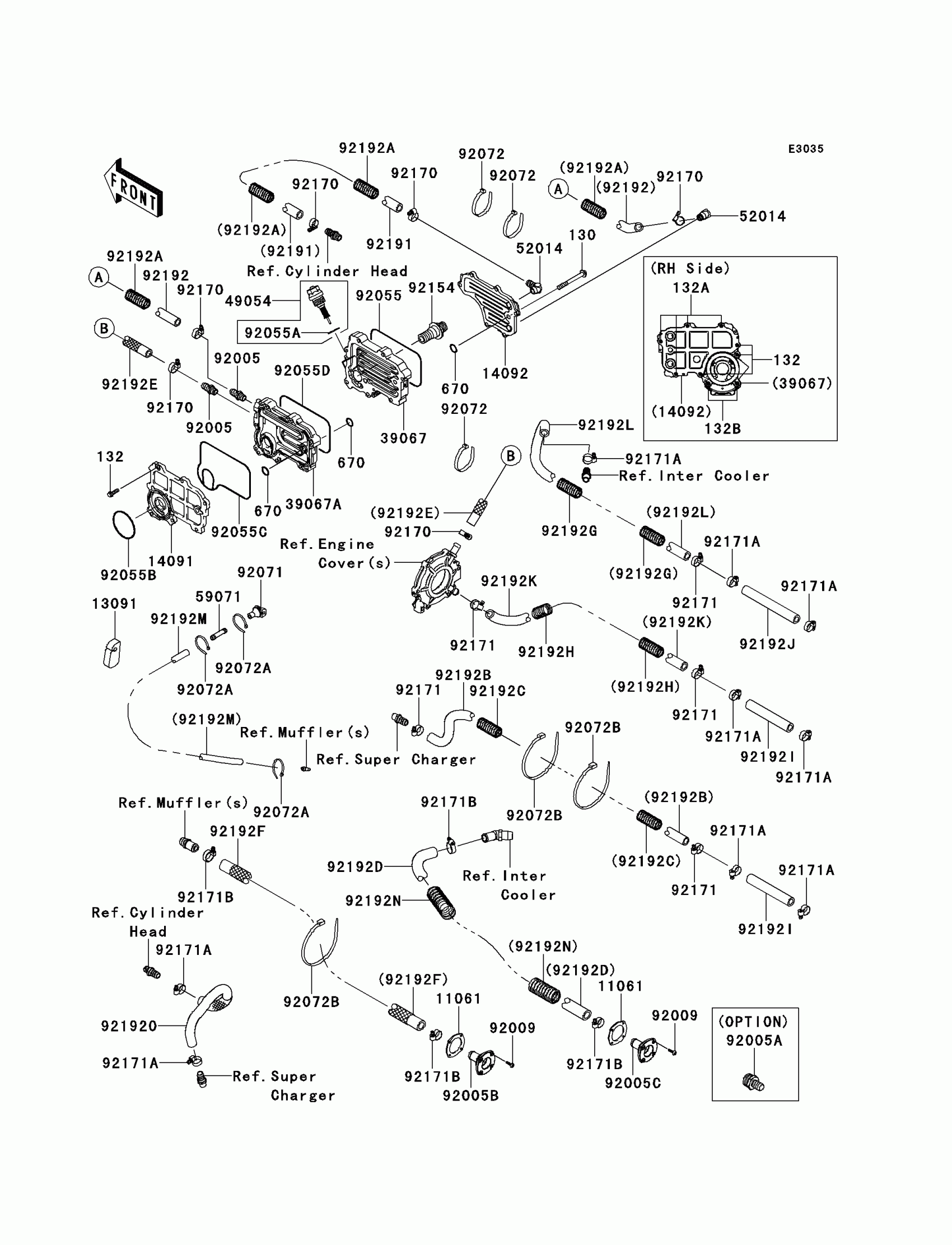

Kawasaki JET SKI® Ultra® 300X Cooling Diagram

#

Description
Price

11061

GASKET

11061-3769

$4.68

13091

HOLDER

13091-3712

$4.65

14091

COVER,INSIDE

14091-3755

$85.68

14092

COVER,OUTSIDE

14092-0765

$67.02

39067

COOLER-OIL,OUTSIDE

39067-0708

$278.45

39067A

COOLER-OIL,INSIDE

39067-3707

Unavailable

49054

THERMOSTAT

49054-3701

$173.79

52014

ELBOW

52014-3711

$30.12

59071

JOINT

59071-3764

$7.64

92005

FITTING,FLUSH

92005-3748

$9.68

92005A

FITTING,BLACK

92005-3770

$5.28

92005B

FITTING,GRAY

92005-3771

$5.42

92009

SCREW,TAPPING,4X16

92009-3849

$1.59

92055

RING-O

92055-0708

$14.04

92055A

RING-O

92055-0727

$6.00

92055B

RING-O,58X3

92055-3767

$6.18

92055C

RING-O

92055-3770

$21.99

92055D

RING-O

92055-3772

$13.06

92071

GROMMET

92071-3815

$5.46

92072

BAND,L=200

92072-0106

$5.65

92072A

BAND,L=100.08

92072-3882

$2.02

92072B

BAND,L=372.24

92072-3883

$1.59

92154

BOLT

92154-3719

$46.70

92170

CLAMP

92170-3729

Unavailable

92171

CLAMP

92171-3701

$7.43

92171A

CLAMP

92171-3714

$9.49

92171B

CLAMP,26MM

92171-3720

$5.04

92191

TUBE,12X18X520

92191-3919

$11.52

92192

TUBE,OIL COOLER-ELBOW

92192-0971

$27.54

92192A

TUBE,CORRUGATED,19.5X23.8X460

92192-0986

$3.70

92192B

TUBE,COMPRESSOR-HULL

92192-1037

$50.93

92192C

TUBE,CORRUGATED,L=620

92192-1038

$4.18

92192D

TUBE,16X23X950

92192-1039

$25.70

92192E

TUBE,INTER COOLER-HULL

92192-1040

$31.80

92192F

TUBE,CORRUGATED,19.5X23.8X380

92192-3714

$2.67

92192G

TUBE,CORRUGATED,19.5X23.8X500

92192-3783

$4.62

92192H

TUBE,12X19X120

92192-3796

$10.21

92192I

TUBE,12X19X150

92192-3797

$11.82

92192J

TUBE,12X19X55&620

92192-3798

$37.51

130

BOLT-FLANGED,8X70

130BD0870

$3.35

132

BOLT-FLANGED-SMALL,6X20

132BD0620

$4.12

132A

BOLT-FLANGED-SMALL,6X40

132BD0640

$5.25

132B

BOLT-FLANGED-SMALL,6X45

132BD0645

$4.69

670

O RING,14MM

670D2014

$5.52

92192K

TUBE,HULL-I/C

92192-3800

$37.51

92192L

TUBE,GENE.COVER-O/C

92192-3816

Unavailable

92192M

TUBE,CORRUGATED,19.5X23.8X700

92192-3817

Unavailable

92192N

TUBE,7X12X1590/30

92192-3821

$41.96

92192O

TUBE,CORRUGATED,L=870

92192-3862

$6.96

92192P

TUBE,COMPRESSOR-HEAD

92192-3866

$37.95
