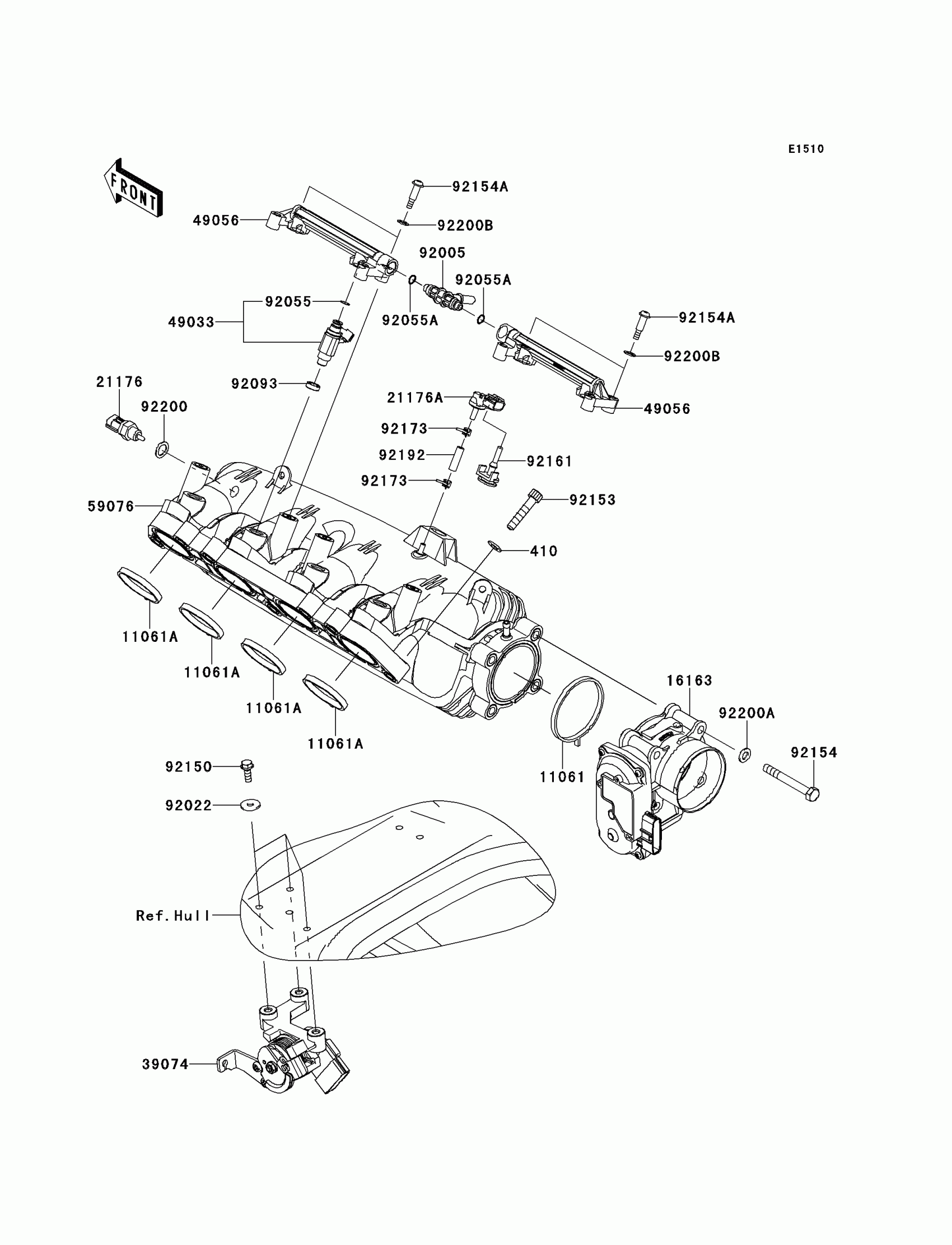

Kawasaki JET SKI® Ultra® 300LX Throttle Diagram

Description

Price

410

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

11061

GASKET,MANIFOLD

11061-3766

$15.06

11061A

GASKET,THROTTLE

11061-3767

$15.06

16163

THROTTLE-ASSY

16163-3717

$1,224.88

21176

SENSOR,AIR TEMPERATURE

21176-1086

$68.42

21176A

SENSOR,BOOST

21176-3777

$140.35

39074

LEVER-ASSY-THROTTLE

39074-3730

$506.91

49033

NOZZLE-INJECTION

49033-3709

$119.31

49056

PIPE-INJECTION,FUEL

49056-3705

$66.48

59076

MANIFOLD-INTAKE

59076-3736

$512.54

92005

FITTING,FUEL PIPE

92005-3766

$33.24

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92055A

RING-O

92055-3782

$9.17

92093

SEAL

92093-0127

$10.56

92150

BOLT,6X18

92150-3729

$4.69

92153

BOLT,SOCKET,8X40

92153-0517

$2.56

92154

BOLT

92154-3712

$28.54

92154A

BOLT

92154-3713

$17.91

92161

DAMPER

92161-3796

$14.32

92173

CLAMP

92173-3702

$9.17

92192

TUBE

92192-3857

$18.59

92200

WASHER,12X18X1

92200-0712

$4.72

92200A

WASHER

92200-3806

$6.00

92200B

WASHER

92200-3807

$6.00
