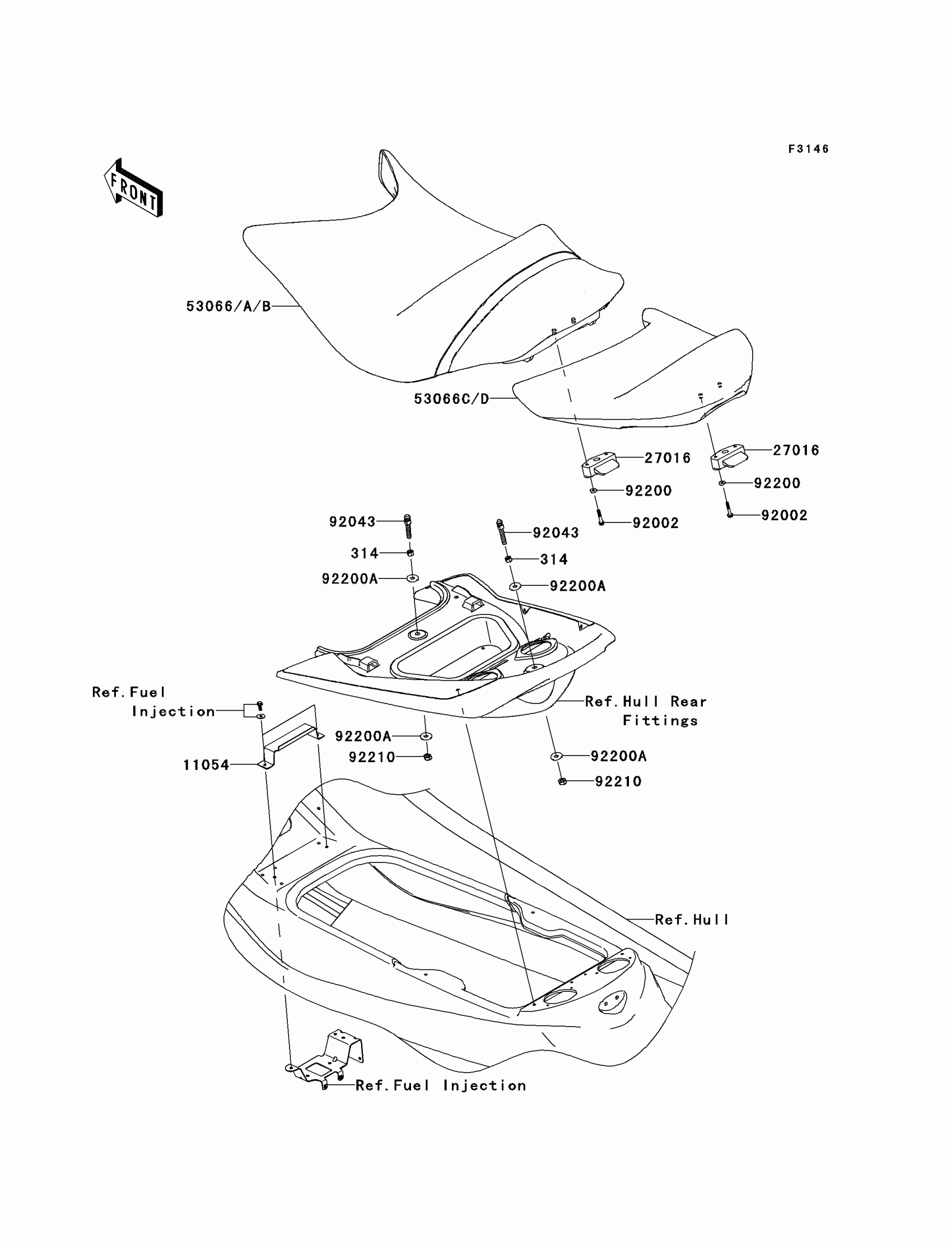

Kawasaki JET SKI® Ultra® 300LX Seat Diagram

Description

Price

314

NUT-HEX-FINE,10MM

314R1000

$2.02

11054

BRACKET,FRONT SEAT

11054-3702

$40.84

27016

LOCK-ASSY,SEAT

27016-3758

$98.34

53066

SEAT-ASSY,FR,SILVER/BLACK

53066-0379-13Q

$626.76

53066D

SEAT-ASSY,RR,SILVER/BLACK

53066-3731-13Z

$459.41

92002

BOLT,6X40

92002-3716

$5.52

92043

92043-3763

$46.79

92200

WASHER,6.5X16X2.0

92200-1543

$2.34

92200A

WASHER

92200-3762

$2.61

92210

NUT,LOCK,10MM

92210-3792

$7.75
