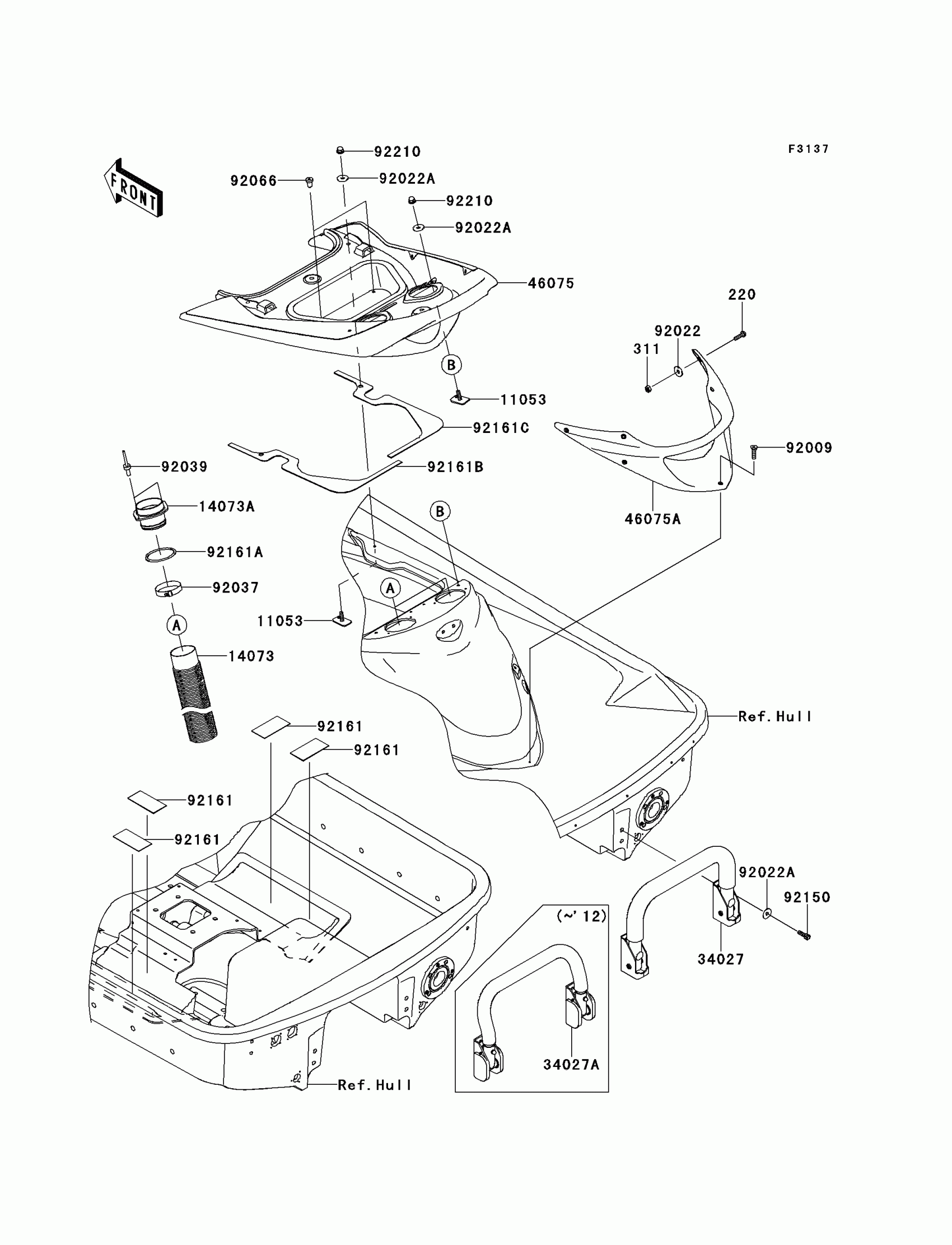

Kawasaki JET SKI® Ultra® 300LX Hull Rear Fittings Diagram

Description

Price

220

SCREW-PAN-CROS,6X20

220R0620

$4.37

311

NUT-HEX,6MM

311AA0600

$0.96

11053

BRACKET

11053-3776

$9.48

14073

DUCT,L=800

14073-3804

$22.96

14073A

DUCT

14073-3805

$6.67

34027

STEP-ASSY

34027-0067

$365.34

46075

GRIP,RR,UPP

46075-3763

$344.19

46075A

GRIP,HANDLE

46075-3765

$25.81

92009

SCREW,TAPPING,6X20

92009-3842

$1.83

92022

WASHER,6.5X20X1.6

92022-1557

$1.40

92022A

WASHER,6.5X20X1.5

92022-3710

$3.65

92037

CLAMP

92037-3738

$6.89

92039

RIVET

92039-3775

$1.70

92066

PLUG

92066-3773

$1.75

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92161

DAMPER

92161-3728

$5.64

92161A

DAMPER

92161-3769

$3.87

92161B

DAMPER

92161-3781

$20.37

92161C

DAMPER

92161-3782

$20.37

92210

NUT,CAP,6MM

92210-3785

$5.65
