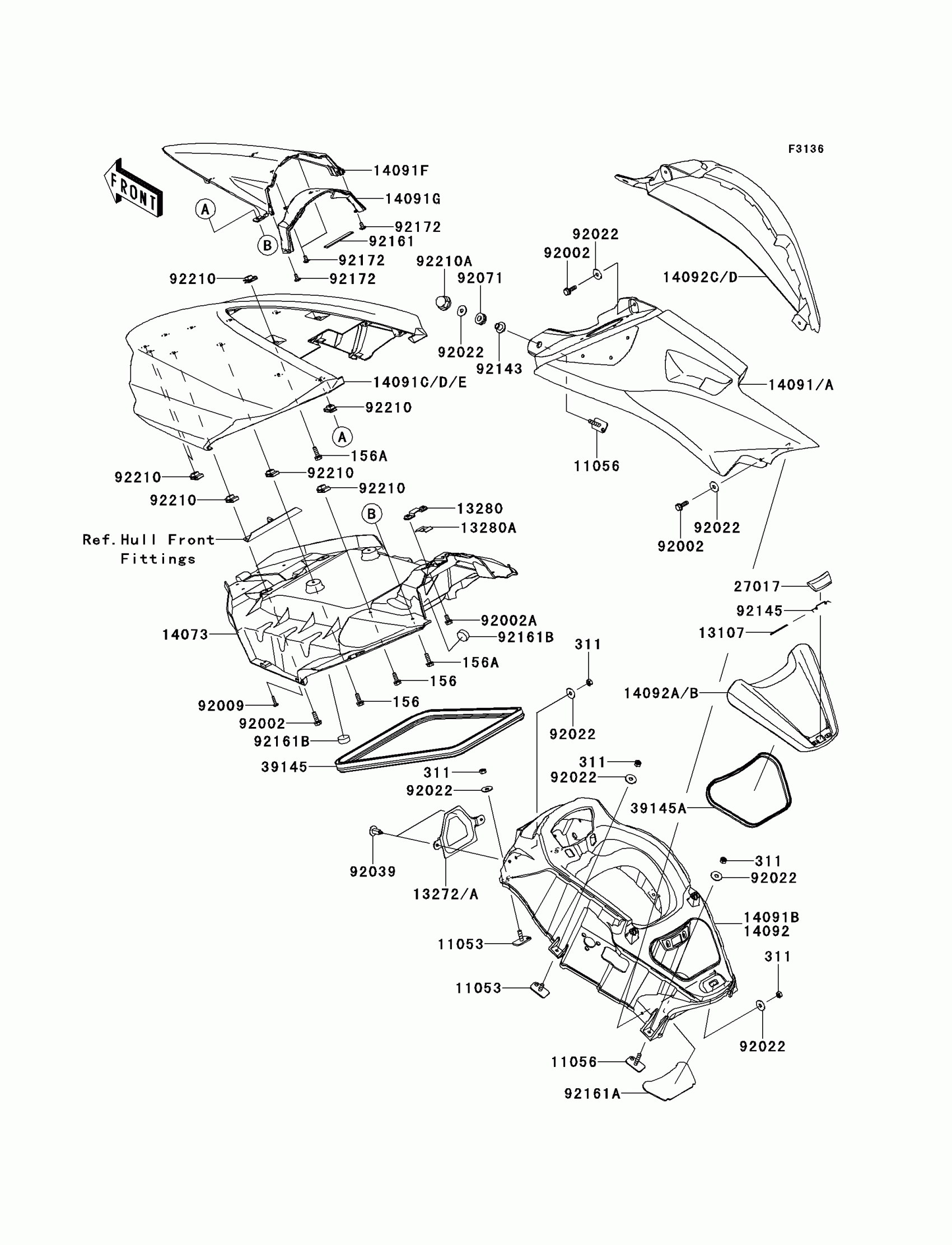

Kawasaki JET SKI® Ultra® 300LX Hull Middle Fittings Diagram

#

Description
Price

156

BOLT-WP,6X18

156R0618

$2.84

156A

BOLT-WP,6X20

156R0620

$2.76

11053

BRACKET

11053-3776

$9.17

11056

BRACKET

11056-3724

$4.46

13107

SHAFT

13107-3790

$2.98

13272

PLATE,INTAKE COVER

13272-1221

$12.17

13280

HOLDER,ROD

13280-3749

$11.80

13280A

HOLDER,ROD

13280-3751

$4.27

14073

DUCT,HATCH,INNER

14073-3837

$165.09

14091A

COVER,SIDE,LH,M.TITANIUM

14091-3780-16S

$128.16

14091C

COVER,FR HATCH,M.TITANIUM

14091-3824-16S

$237.76

14091F

COVER,METER,FR

14091-3825

$46.74

14091G

COVER,METER,RR

14091-3826

$199.69

14092

COVER,CENTER,F.BLACK

14092-0980-6Z

$148.84

14092B

COVER,CENTER STORAGE,TITANIUM

14092-3701-16S

$70.82

14092D

COVER,SIDE,RH,M.TITANIUM

14092-3708-16S

$128.16

27017

LOCK,CENTER STORAGE

27017-3726

Unavailable

39145

TRIM-SEAL

39145-3793

$123.36

39145A

TRIM-SEAL,L=720

39145-3802

$44.21

92002

BOLT,6X20

92002-3755

$3.57

92002A

BOLT,6X12

92002-3763

$3.57

92009

SCREW,TAPPING,4X16

92009-3849

$1.20

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92039

RIVET

92039-3788

$2.34

92071

GROMMET

92071-3716

$4.39

92143

COLLAR

92143-3750

$6.73

92145

SPRING

92145-3729

$4.24

92161

DAMPER,16X100X3.18

92161-0968

$1.63

92161A

DAMPER,CENTER STORAGE

92161-3773

$4.63

92161B

DAMPER

92161-3790

$3.54

92172

SCREW,5X12

92172-3714

$1.43

92210

NUT,6MM

92210-3768

$4.39

92210A

NUT,CAP,6MM

92210-3785

$4.27

311

NUT-HEX,6MM

311R0600

$0.65
