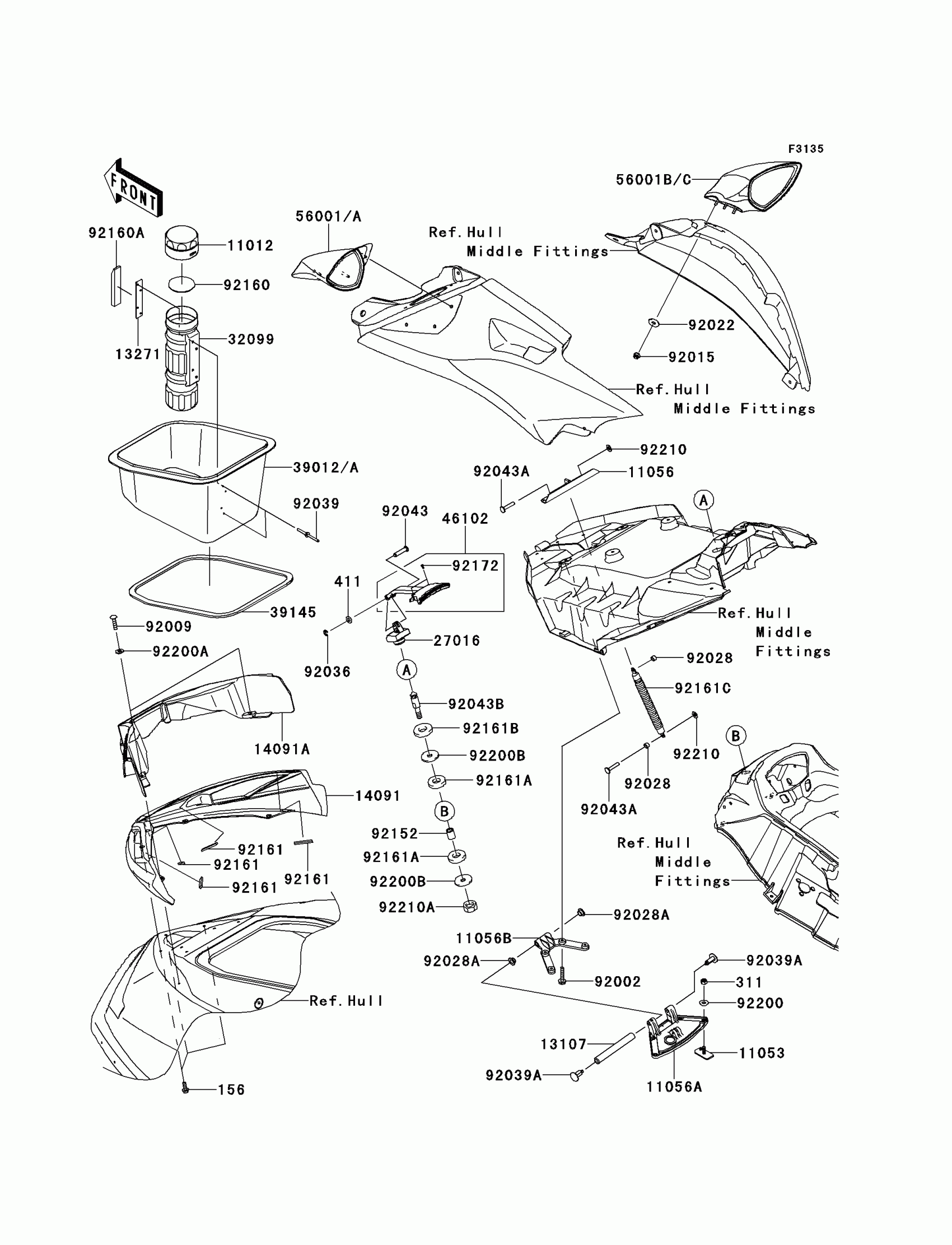

Kawasaki JET SKI® Ultra® 300LX Hull Front Fittings Diagram

#

Description
Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$7.83

11053

BRACKET

11053-3776

$9.17

11056

BRACKET

11056-3703

$37.23

11056A

BRACKET

11056-3725

$153.25

11056B

BRACKET

11056-3726

$123.24

13107

SHAFT,FRONT HINGE

13107-3802

$23.31

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.07

14091

COVER,FR,TOP

14091-3827

$212.07

14091A

COVER,FR,INSIDE

14091-3828

$79.99

27016

LOCK-ASSY,HATCH

27016-3761

$51.54

32099

CASE,FIRE EXTINGUISHER

32099-3769

$14.60

39012

CASE-STORAGE

39012-0034

$23.29

39145

TRIM-SEAL,L=1627

39145-3807

$23.95

46102

ROD,HATCH LOCK

46102-3734

$7.70

56001A

MIRROR-ASSY,LH,C.W.RED

56001-3725-TF

$150.61

56001C

MIRROR-ASSY,RH,C.W.RED

56001-3726-TF

$150.61

92002

BOLT,6X30

92002-3726

$3.57

92009

SCREW,TAPPING,6X20

92009-3842

$1.35

92015

NUT,LOCK,6MM

92015-3766

$4.46

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92028

BUSHING

92028-3765

$2.28

92028A

BUSHING

92028-3770

$1.90

92036

RING,SNAP

92036-518

$1.37

92039

RIVET

92039-3783

$6.15

92039A

RIVET

92039-3788

$2.34

92043

PIN,6X27.5

92043-3732

$9.63

92043A

PIN,6X33

92043-3748

$10.76

92043B

PIN

92043-3760

Unavailable

92152

COLLAR,8.2X14X16.2

92152-0979

$12.85

92160

DAMPER

92160-3814

$7.76

92160A

DAMPER

92160-3821

$8.63

92161

DAMPER,10X50X4

92161-1373

$1.00

92161A

DAMPER

92161-3739

$4.20

92161B

DAMPER

92161-3747

$3.52

92161C

DAMPER,HATCH

92161-3778

Unavailable

92172

SCREW,3X8

92172-3716

$1.49

92200

WASHER,6.5X16X1.0

92200-3712

$2.84

156

BOLT-WP,5X16

156R0516

$2.42

311

NUT-HEX,6MM

311R0600

$0.65

411

WASHER-PLAIN,6MM

411S0600

$1.49

92200A

WASHER,6.5X14.5X1.5

92200-3775

$1.30

92200B

WASHER,8.5X32X2

92200-3786

$4.39

92210

NUT,SPEED,6MM

92210-3739

$1.59

92210A

NUT,LOCK,8MM

92210-3742

$5.71
