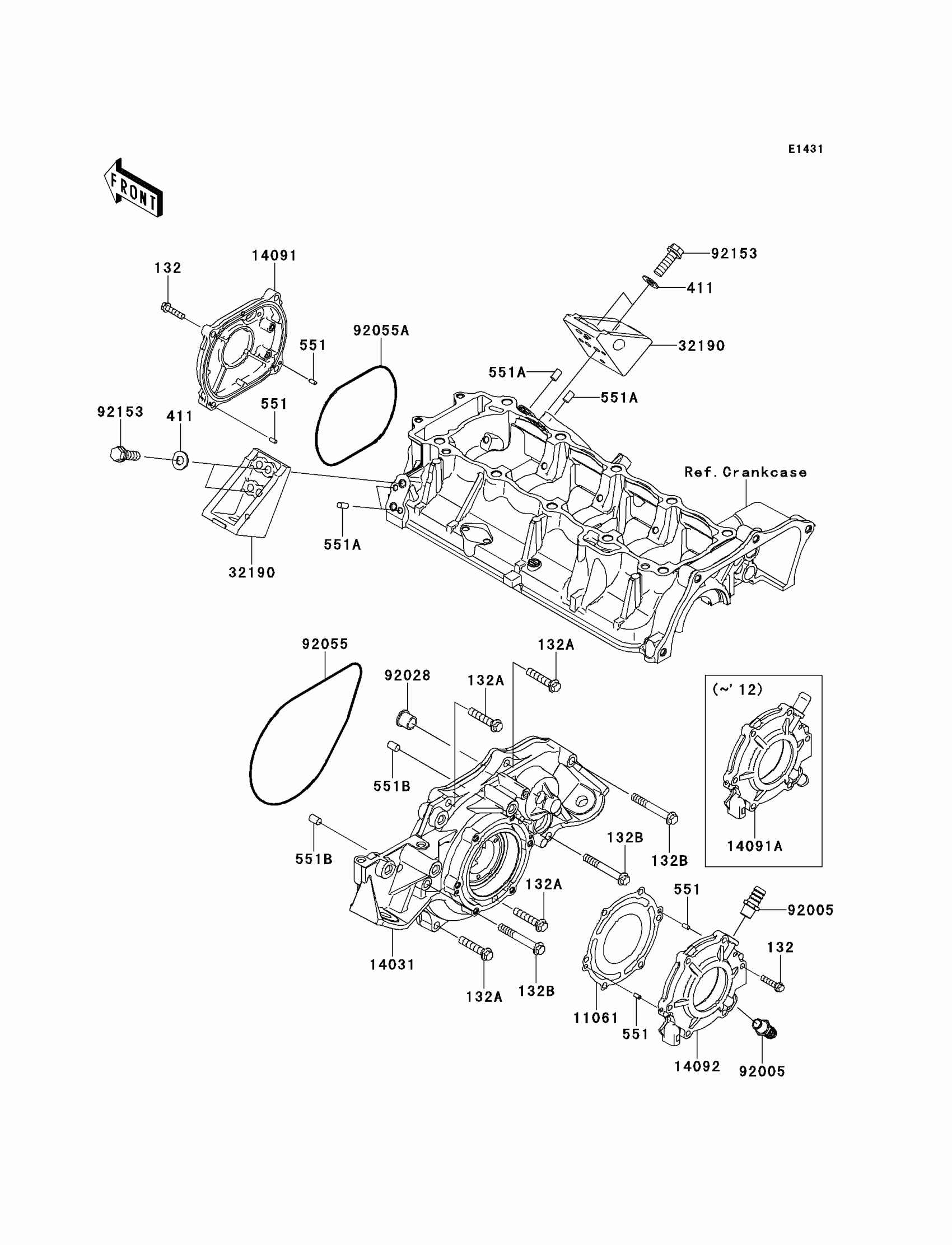

Kawasaki JET SKI® Ultra® 300LX Engine Cover(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132BD0625

$5.39

132A

BOLT-FLANGED-SMALL,8X40

132BD0840

$5.59

132B

BOLT-FLANGED-SMALL,8X60

132BD0860

$3.13

411

WASHER-PLAIN,8MM

411S0800

$3.09

551

PIN-DOWEL

551R0408

$5.38

551A

PIN-DOWEL

551R0612

$4.69

551B

PIN-DOWEL

551R0812

$7.91

11061

GASKET,OUTPUT COVER

11061-0812

$12.20

14031

COVER-GENERATOR

14031-3738

$280.73

14091

COVER,PULS

14091-3763

$91.57

14092

COVER,OUTPUT

14092-1048

$108.75

32190

BRACKET-ENGINE

32190-3703

$39.06

92005

FITTING

92005-3714

$18.72

92028

BUSHING

92028-3718

$9.43

92055

RING-O,196X3

92055-3761

$15.78

92055A

RING-O,120X3

92055-3762

$11.16

92153

BOLT,FLANGED,8X30

92153-3722

$2.55
