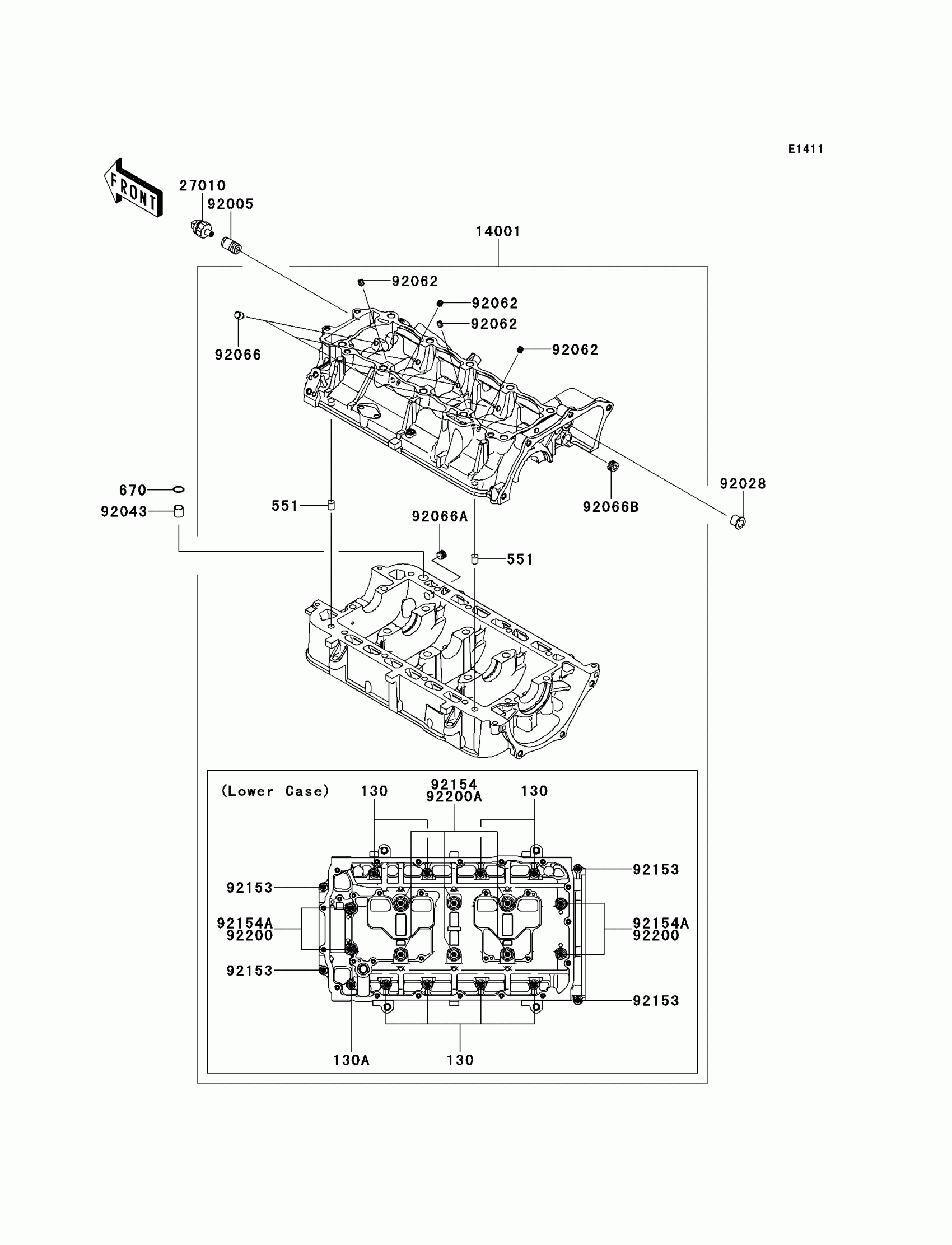

Kawasaki JET SKI® Ultra® 300LX Crankcase Diagram

Description

Price

130

BOLT-FLANGED,8X45

130CD0845

$3.97

130A

BOLT-FLANGED,8X55

130CD0855

$6.18

551

PIN-DOWEL

551R1012

$6.57

670

O RING,14MM

670D2014

$5.52

14001

SET-CRANKCASE

14001-0567

$1,648.09

27010

SWITCH,OIL PRESSURE

27010-3786

$67.73

92005

FITTING

92005-0714

$28.69

92028

BUSHING

92028-3718

$9.43

92043

PIN,11.5X14X14

92043-1279

$5.00

92062

NOZZLE

92062-0004

$4.49

92066

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92066A

PLUG

92066-3778

$11.06

92066B

PLUG

92066-3782

$11.06

92153

BOLT,6X30

92153-3707

$3.26

92154

BOLT

92154-0719

$15.20

92154A

BOLT

92154-0720

$9.43

92200

WASHER

92200-0743

$17.91

92200A

WASHER,11.5X20.5X1.6

92200-0747

$19.64
