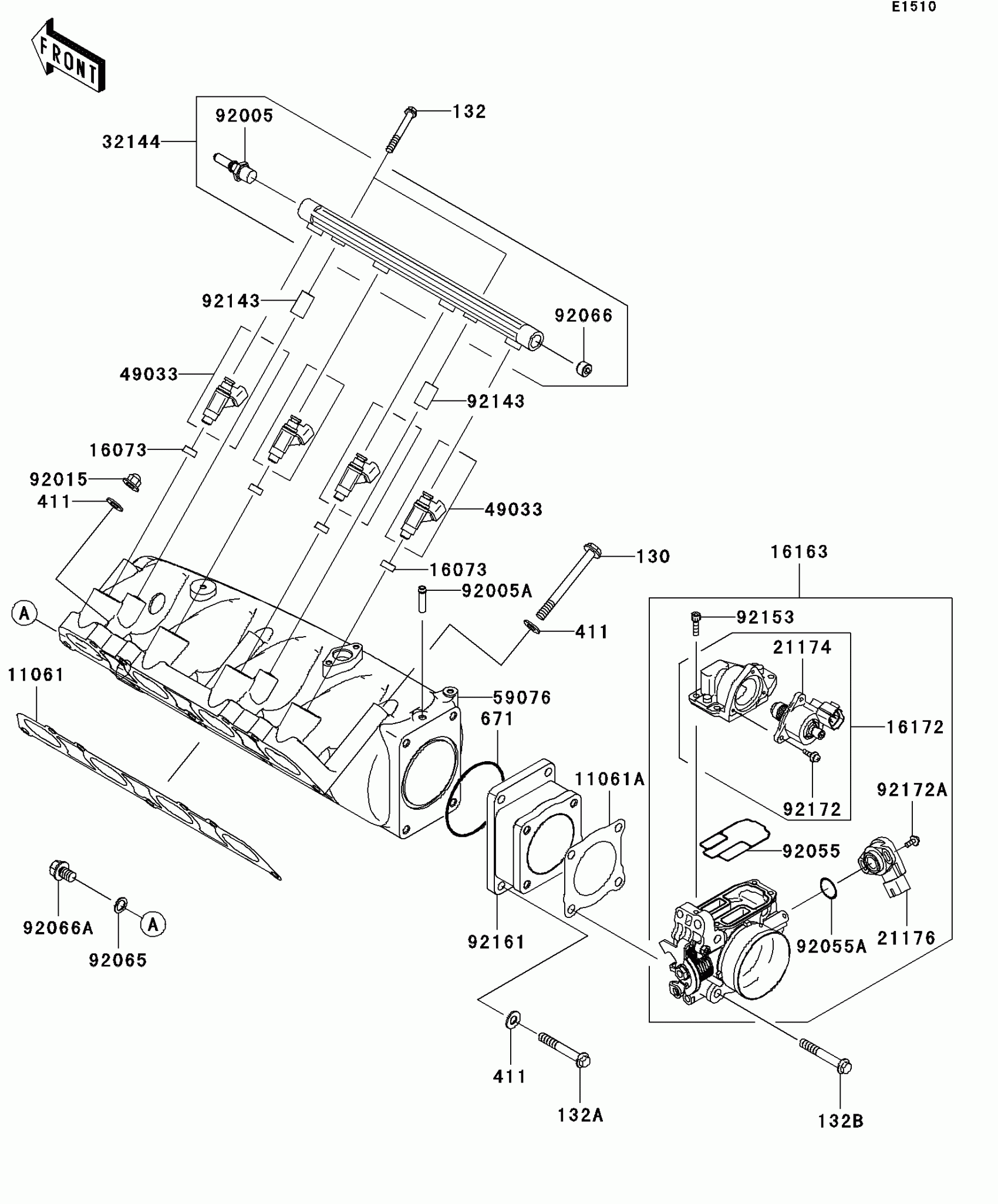

Kawasaki Jet Ski® Ultra® 260X Throttle Diagram
#
Description
Price
11061
GASKET,MANIFOLD
11061-3716
Unavailable
11061A
GASKET,THROTTLE
11061-3738
Unavailable
16073
INSULATOR
16073-3707
$6.18
16163
THROTTLE-ASSY,AC60
16163-3712
Unavailable
16172
ACTUATOR
16172-3705
Unavailable
21174
MOTOR-ELECTRIC,STM
21174-3706
Unavailable
21176
SENSOR,TPS
21176-3762
$94.30
32144
PIPE-ASSY
32144-3706
$135.90
49033
NOZZLE-INJECTION
49033-3708
$129.64
59076
MANIFOLD-INTAKE
59076-3735
$1,105.99
92005
FITTING
92005-3754
$37.51
92005A
FITTING
92005-3761
$15.11
92015
NUT,CAP,8MM
92015-1371
$5.00
92055
RING-O
92055-3773
$16.95
92055A
RING-O
92055-3774
$16.95
92065
GASKET,10.5X16X1
92065-058
$3.96
92066
PLUG
92066-3778
$11.06
92066A
PLUG
92066-3781
$7.58
92143
COLLAR
92143-3731
$6.38
92153
BOLT
92153-3723
$3.90
92161
DAMPER
92161-3771
$6.32
92172
SCREW
92172-3710
$3.90
92172A
SCREW
92172-3711
$3.90
130
BOLT-FLANGED,8X120
130CD08120
$4.40
132
BOLT-FLANGED-SMALL,6X50
132BD0650
$4.76
132A
BOLT-FLANGED-SMALL,8X30
132BD0830
$2.90
132B
BOLT-FLANGED-SMALL,8X55
132BD0855
$3.13
411
WASHER-PLAIN,8MM
411S0800
$3.09
671
O RING,70MM
671B2570
$7.62
