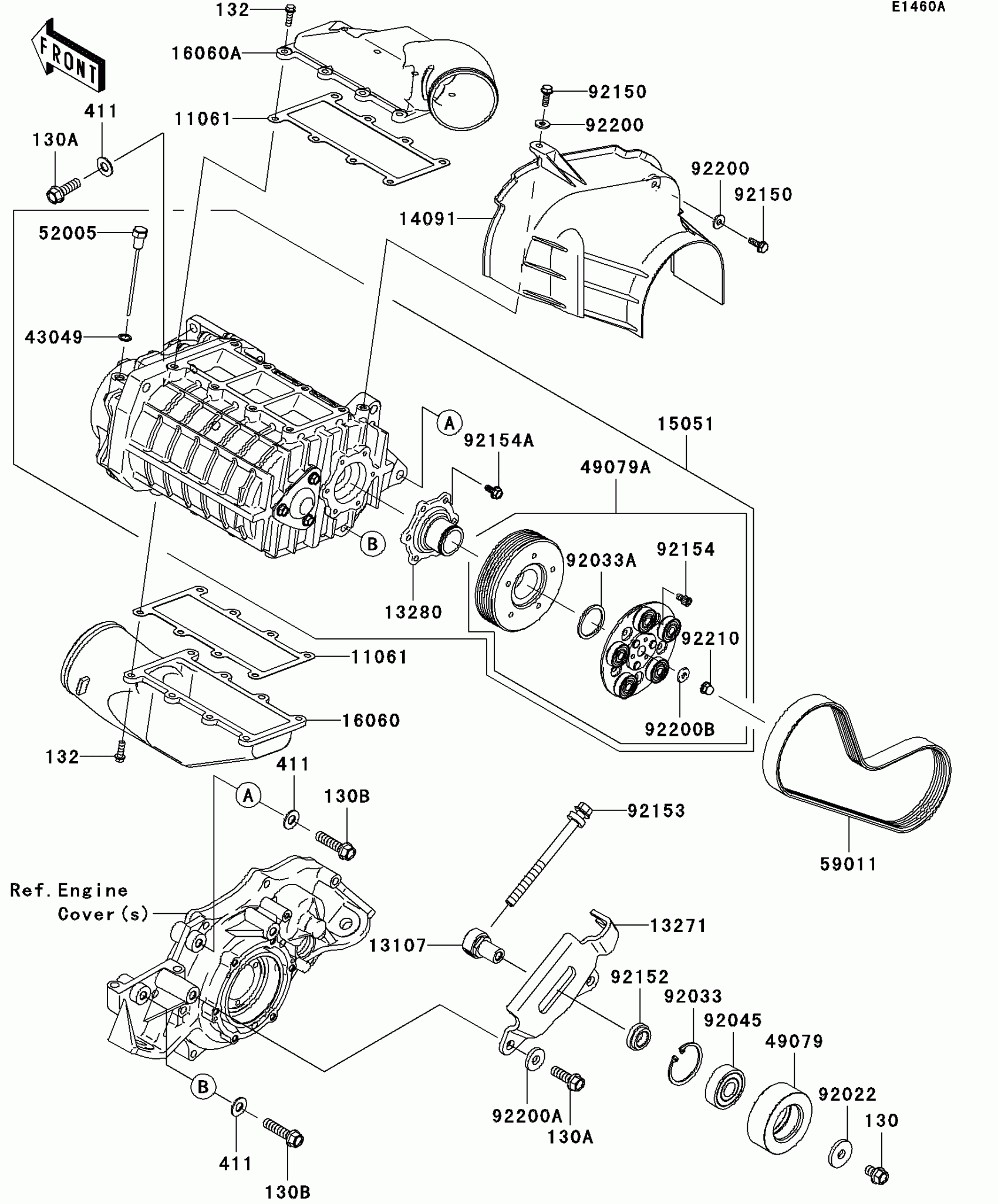

Kawasaki Jet Ski® Ultra® 260X Super Charger(US-KAW10999 09-) Diagram

Description

Price

11061

GASKET

11061-3745

Unavailable

13107

SHAFT

13107-3791

$118.49

13271

PLATE,BELT TENSIONER

13271-3922

$84.07

13280

HOLDER

13280-3758

$157.25

14091

COVER,BELT

14091-3811

$32.37

15051

COMPRESSOR-AIR,SUPER CHARGER

15051-3702

$2,687.48

16060

PIPE-INTAKE,S/C IN

16060-3721

$327.96

16060A

PIPE-INTAKE,S/C OUT

16060-3722

$327.96

43049

PACKING

43049-3718

$9.62

49079

PULLEY-BELT

49079-3701

$93.68

49079A

PULLEY-BELT

49079-3703

$695.62

52005

GAUGE,OIL

52005-3712

$99.14

59011

BELT,6PK755

59011-3701

$54.55

92022

WASHER,32X10.5X4

92022-3023

$8.84

92033

RING-SNAP,47MM

92033-3734

$18.83

92033A

RING-SNAP

92033-3736

$18.83

92045

BEARING-BALL,17X47X14

92045-3742

$21.84

92150

BOLT,6X18

92150-3729

$4.69

92152

COLLAR,17X30X9.5

92152-3747

$17.20

92153

BOLT

92153-3758

$42.29

92154

BOLT,6X10

92154-3702

$6.32

92154A

BOLT,6X14

92154-3703

$9.01

92200

WASHER,6.5X16X2.0

92200-1543

$2.34

92200A

WASHER,10.5X26X4

92200-3798

$4.65

92200B

WASHER

92200-3804

$8.09

92210

NUT

92210-3798

$9.05

130

BOLT-FLANGED,10X14

130CD1014

$2.76

130A

BOLT-FLANGED,10X30

130CD1030

$2.76

130B

BOLT-FLANGED,10X40

130CD1040

$2.49

132

BOLT-FLANGED-SMALL,6X18

132BD0618

$3.89

411

WASHER-PLAIN,10MM

411S1000

$2.67
