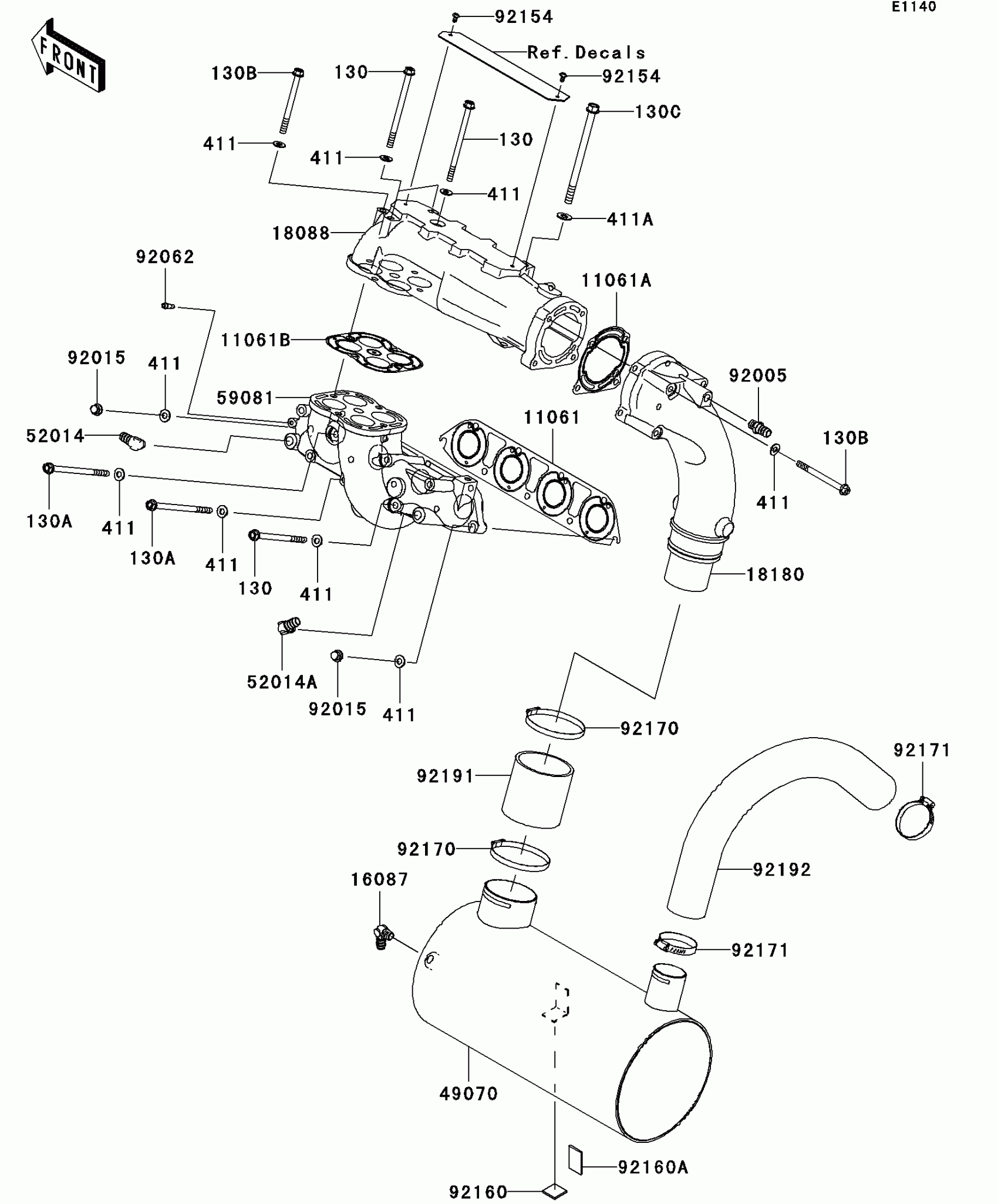

Kawasaki Jet Ski® Ultra® 260X Muffler(s) Diagram

Description

Price

11061

GASKET,MANIFOLD EXHAUST

11061-3742

$41.04

11061A

GASKET,MUFFLER

11061-3760

$22.55

11061B

GASKET,PIPE EXHAUST

11061-3762

$30.76

16087

VALVE-CHECK

16087-3714

$112.93

18088

PIPE-EXHAUST

18088-3726

$873.80

18180

BODY-MUFFLER

18180-3741

$597.37

49070

MUFFLER-COMP,1ST

49070-3752

$953.56

52014

ELBOW

52014-3711

$30.12

52014A

ELBOW

52014-3726

$41.28

59081

MANIFOLD-EXHAUST

59081-3743

$1,167.51

92005

FITTING

92005-3714

$18.72

92015

NUT,CAP,8MM

92015-1371

$5.00

92062

NOZZLE

92062-3705

$8.44

92154

BOLT,SOCKET,5X10

92154-0211

$2.12

92160

DAMPER,25X25

92160-3864

$3.32

92160A

DAMPER,40X25

92160-3865

$5.24

92170

CLAMP

92170-3760

$11.56

92171

CLAMP

92171-3723

$6.35

92191

TUBE,PIPE EX-MUFFLER

92191-3986

$21.54

92192

TUBE,1ST-TAIL PIPE

92192-3831

$57.47

130

BOLT-FLANGED,8X120

130CD08120

$4.40

130A

BOLT-FLANGED,8X140

130CD08140

$4.40

130B

BOLT-FLANGED,8X95

130CD0895

$3.57

130C

BOLT-FLANGED,10X150

130CD10150

$7.37

411

WASHER-PLAIN,8MM

411S0800

$3.09

411A

WASHER-PLAIN,10MM

411S1000

$2.67
