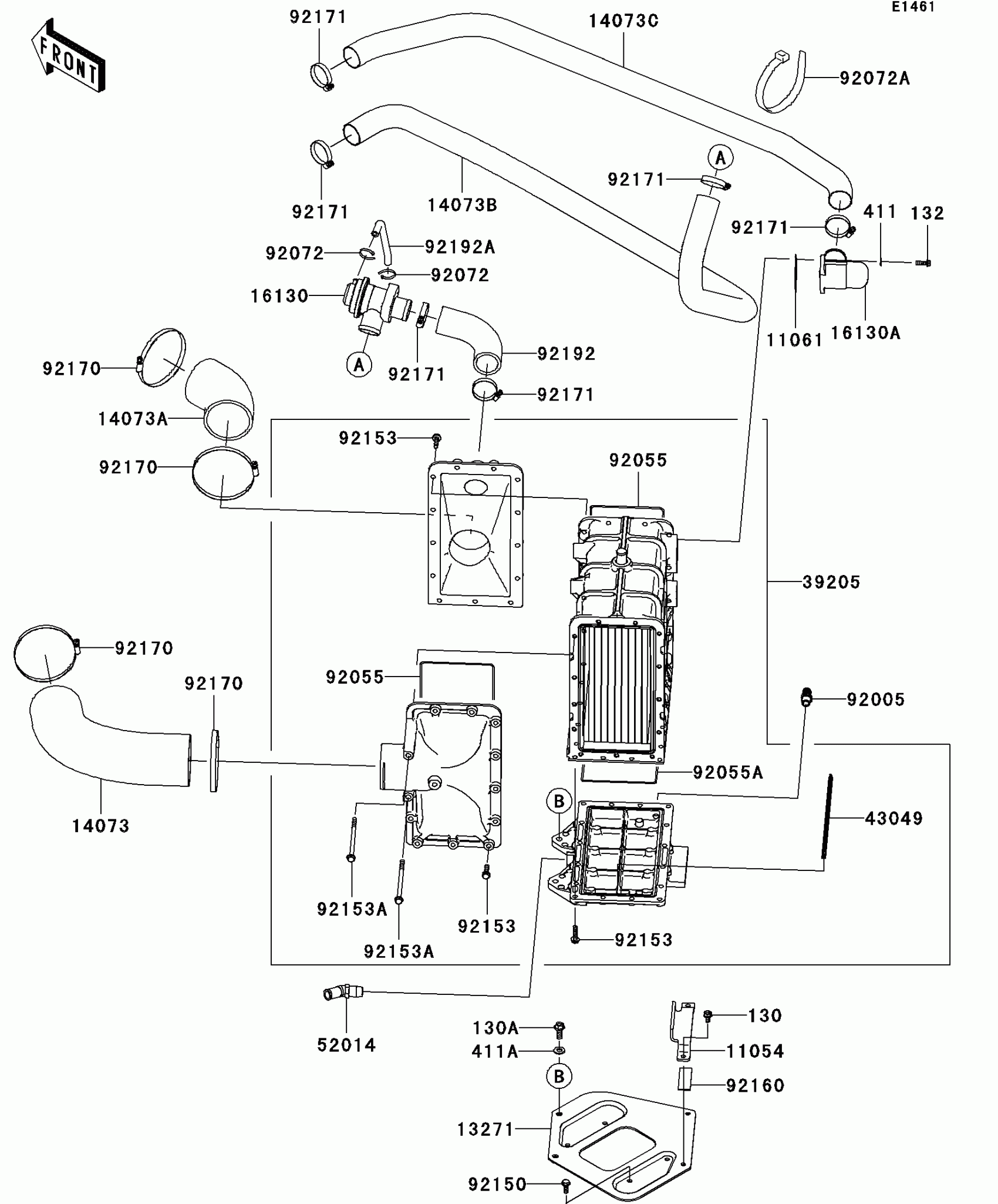

Kawasaki Jet Ski® Ultra® 260X Inter Cooler Diagram

#

Description
Price

11054

BRACKET

11054-3739

$34.28

11061

GASKET

11061-3750

Unavailable

13271

PLATE

13271-3940

$122.20

14073

DUCT,S/C-I/C

14073-3813

$223.60

14073A

DUCT,I/C-TH.

14073-3823

$39.34

14073B

DUCT,BYPASS VALVE-A/C

14073-3834

$30.33

14073C

DUCT,BLOW OFF VALVE-A/C

14073-3835

$28.01

16130

VALVE-ASSY-RELIEF,AIR BYPASS

16130-3703

$522.35

16130A

VALVE-ASSY-RELIEF

16130-3705

Unavailable

39205

HEAT EXCHANGER,INTERCOOLER

39205-3701

$2,831.17

43049

PACKING

43049-3719

$11.82

52014

ELBOW

52014-3714

$46.09

92005

FITTING

92005-3714

$18.72

92055

RING-O

92055-3779

$13.41

92055A

RING-O

92055-3780

$10.30

92072

BAND,L=100.08

92072-3882

$2.02

92072A

BAND,L=372.24

92072-3883

$1.59

92150

BOLT,6X18

92150-3729

$4.69

92153

BOLT,FLANGED,6X25

92153-3750

$2.61

92153A

BOLT,FLANGED,6X110

92153-3751

$4.65

92160

DAMPER

92160-1075

$6.57

92170

CLAMP

92170-3764

$10.35

92171

CLAMP

92171-3725

$13.64

92192

TUBE,I/C-ABV

92192-3784

$32.22

92192A

TUBE,5.8X10.8X140

92192-3846

$10.28

130

BOLT-FLANGED,6X12

130CD0612

$1.78

130A

BOLT-FLANGED,8X20

130CD0820

$2.70

132

BOLT-FLANGED-SMALL,6X18

132BD0618

$3.89

411

WASHER-PLAIN,6MM

411S0600

$2.06

411A

WASHER-PLAIN,8MM

411S0800

$3.09
