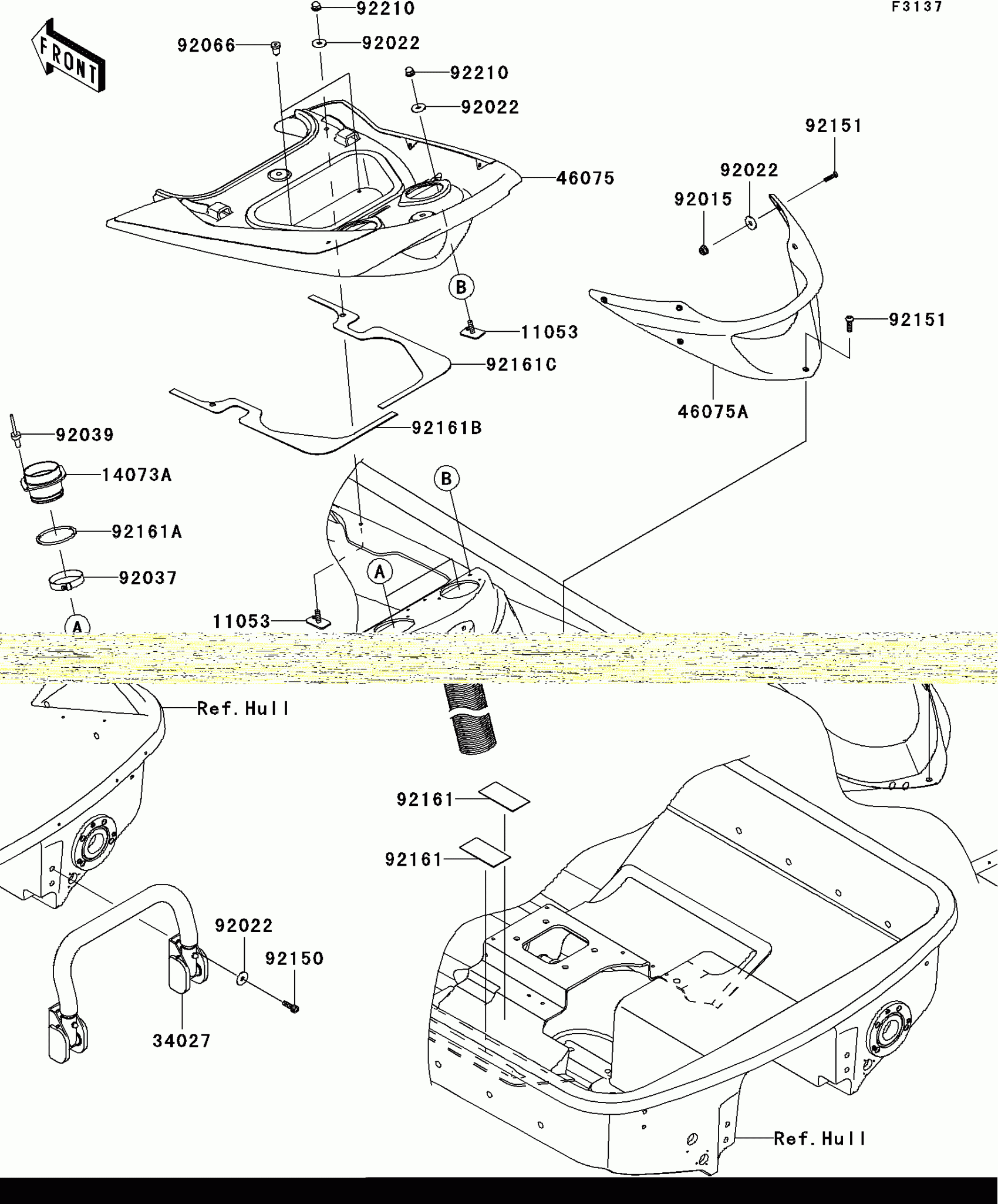

Kawasaki Jet Ski® Ultra® 260X Hull Rear Fittings Diagram

Description

Price

11053

BRACKET

11053-3776

$9.17

14073

DUCT,L=800

14073-3804

$21.41

14073A

DUCT

14073-3805

$5.76

34027

STEP-ASSY

34027-3709

Unavailable

46075

GRIP,RR,UPP

46075-3763

$350.98

46075A

GRIP,HANDLE

46075-3765

$26.76

92015

NUT,6MM

92015-3767

$3.57

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92037

CLAMP

92037-3738

$5.47

92039

RIVET

92039-3775

$1.25

92066

PLUG

92066-3773

$1.58

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92151

BOLT,SOCKET,6X20

92151-1749

$2.25

92161

DAMPER

92161-3728

$4.92

92161A

DAMPER

92161-3769

$3.37

92161B

DAMPER

92161-3781

$19.95

92161C

DAMPER

92161-3782

$19.95

92210

NUT,CAP,6MM

92210-3785

$4.27
