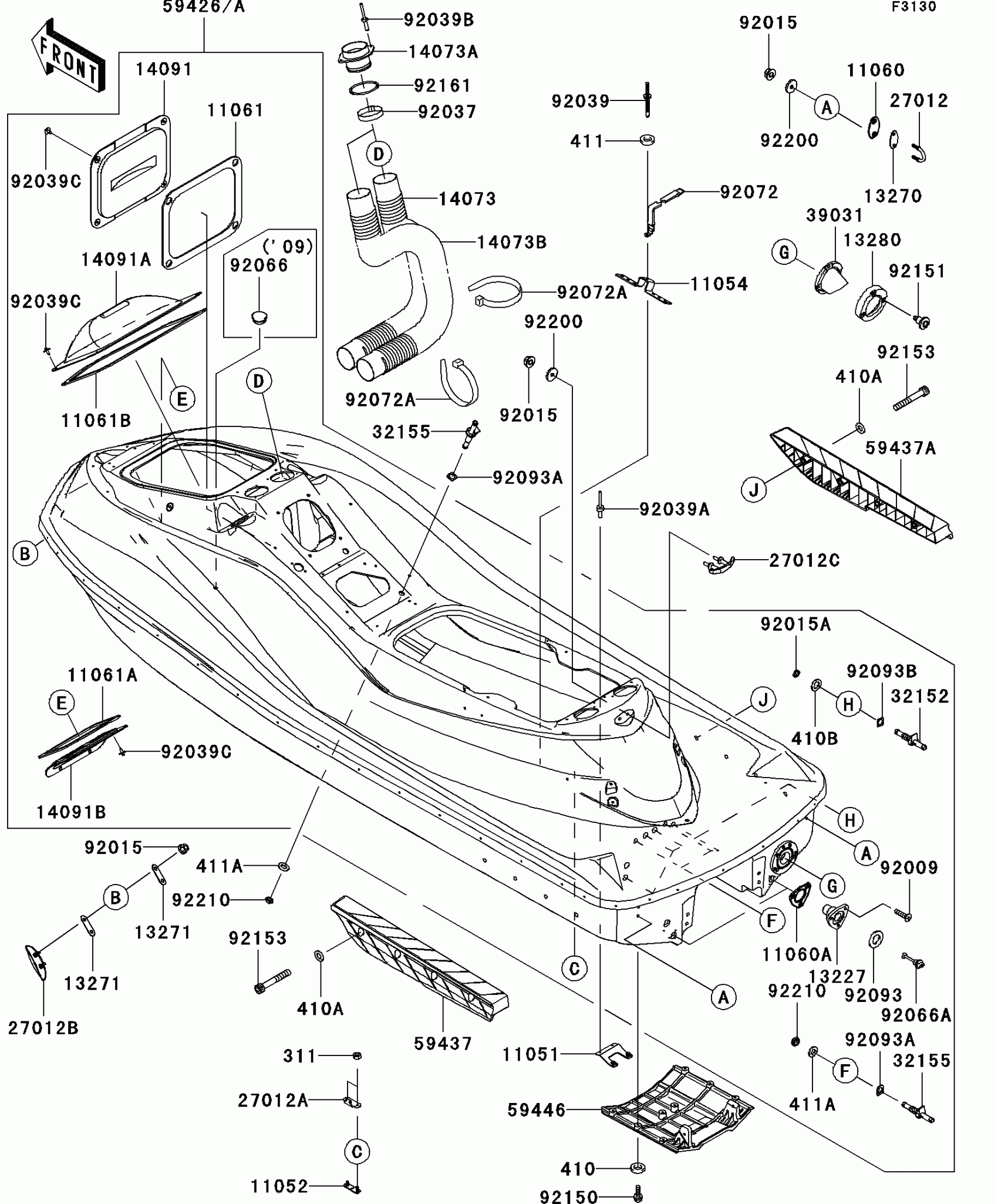

Kawasaki Jet Ski® Ultra® 260X Hull Diagram
#
11051
BRACKET,BREATHER-BILGE
11051-3802
$11.76
11052
BRACKET,RR DUCT
11052-3712
$9.05
11054
BRACKET,WATER MUFFLER
11054-3735
Unavailable
11060
GASKET,U HOOK,RR
11060-3800
$6.20
11060A
GASKET,DRAIN PLUG
11060-3801
$6.61
11061
GASKET,ECU COVER
11061-3749
$33.35
11061A
GASKET,STORAGE CASE COVER
11061-3753
$16.07
11061B
GASKET,BATTERY COVER
11061-3754
$37.51
13227
HOUSING,DRAIN PLUG,F.BLACK
13227-3721-6Z
$7.98
13270
PLATE
13270-3860
$8.38
13271
PLATE
13271-3724
$4.31
13280
HOLDER,EXHAUST VALVE
13280-3718
$27.61
14073
DUCT,L=800
14073-3804
$22.96
14073A
DUCT
14073-3805
$6.67
14073B
DUCT,L=1000
14073-3836
$28.77
14091
COVER,ECU
14091-3786
$15.89
14091A
COVER,BATTERY
14091-3809
$26.37
14091B
COVER,STORAGE CASE
14091-3819
$10.58
27012
HOOK
27012-3797
$32.29
27012A
HOOK
27012-3816
$9.19
27012B
HOOK,BOW,F.BLACK
27012-3822-6Z
$36.98
27012C
HOOK,TOWING
27012-3860
$84.33
32152
PIPE
32152-3749
$7.09
32155
PIPE,COOLING
32155-3702
$7.09
39031
CAP-END
39031-3704
$40.86
59426A
HULL-COMP,EBONY
59426-3974-H8
Unavailable
59437
STABILIZER,LH,F.BLACK
59437-3741-6Z
Unavailable
59437A
STABILIZER,RH,F.BLACK
59437-3742-6Z
Unavailable
59446
COVER-JET PUMP
59446-3759
$181.95
92009
SCREW,TAPPING,4X16
92009-3849
$1.59
92015
NUT,FLANGED,8MM
92015-3709
$5.05
92015A
NUT,20MM
92015-3738
$7.31
92037
CLAMP
92037-3738
$6.89
92039
RIVET
92039-3741
$1.63
92039A
RIVET
92039-3755
$6.57
92039B
RIVET
92039-3775
$1.70
92039C
RIVET
92039-3785
$4.65
92066A
PLUG,RR,DRAIN,F.BLACK
92066-3783-6Z
$17.50
92072
BAND,314X18
92072-3814
$17.91
92072A
BAND,L=608.22
92072-3884
$3.35
92093
SEAL
92093-3720
$3.62
92093A
SEAL
92093-3783
$3.87
92093B
SEAL
92093-3784
$3.89
92150
BOLT,SOCKET,6X18
92150-3775
$4.69
92151
BOLT,SOCKET,M6,SHOULDER
92151-3746
$12.05
92153
BOLT,SOCKET,8X55
92153-3746
$11.00
92161
DAMPER
92161-3769
$3.87
92200
WASHER
92200-3779
$5.30
92210
NUT
92210-3707
$4.92
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
410A
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
410B
WASHER-PLAIN-SMALL
410S2000
$6.27
411
WASHER-PLAIN,5MM
411S0500
$0.94
411A
WASHER-PLAIN
411S1600
$5.65
