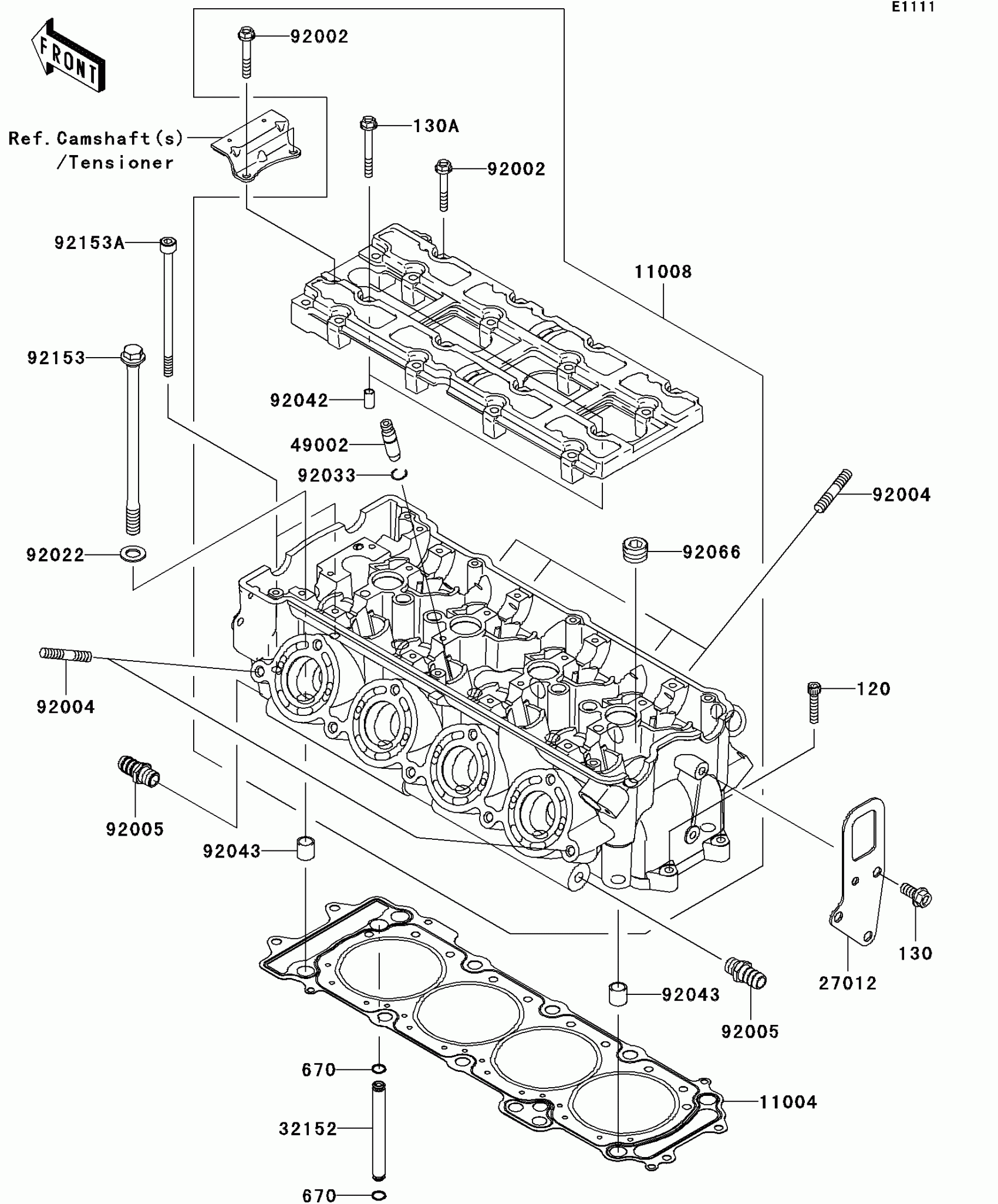

Kawasaki Jet Ski® Ultra® 260X Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-3722

Unavailable

11008

HEAD-COMP-CYLINDER

11008-3708

Unavailable

27012

HOOK,ENGINE,RR

27012-3856

$18.86

32152

PIPE,OIL

32152-1544

$13.28

49002

GUIDE-VALVE

49002-1140

Unavailable

92002

BOLT,6X40

92002-1756

$4.69

92004

STUD,8X30

92004-3743

$4.45

92005

FITTING

92005-3714

$18.72

92022

WASHER,11.5X20.5X1.6

92022-1720

$4.31

92033

RING-SNAP

92033-1247

$3.91

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,14X14

92043-1593

$6.67

92066

PLUG,PT1/2X12.5

92066-0002

$8.98

92153

BOLT,FLANGED,11X174

92153-3730

$20.37

92153A

BOLT,SOCKET,7X126

92153-3731

$10.30

120

BOLT-SOCKET,6X30

120CD0630

$4.76

130

BOLT-FLANGED,8X18

130BD0818

$2.70

130A

BOLT-FLANGED,6X50

130CD0650

$4.87

670

O RING,7MM

670D1507

$1.70
