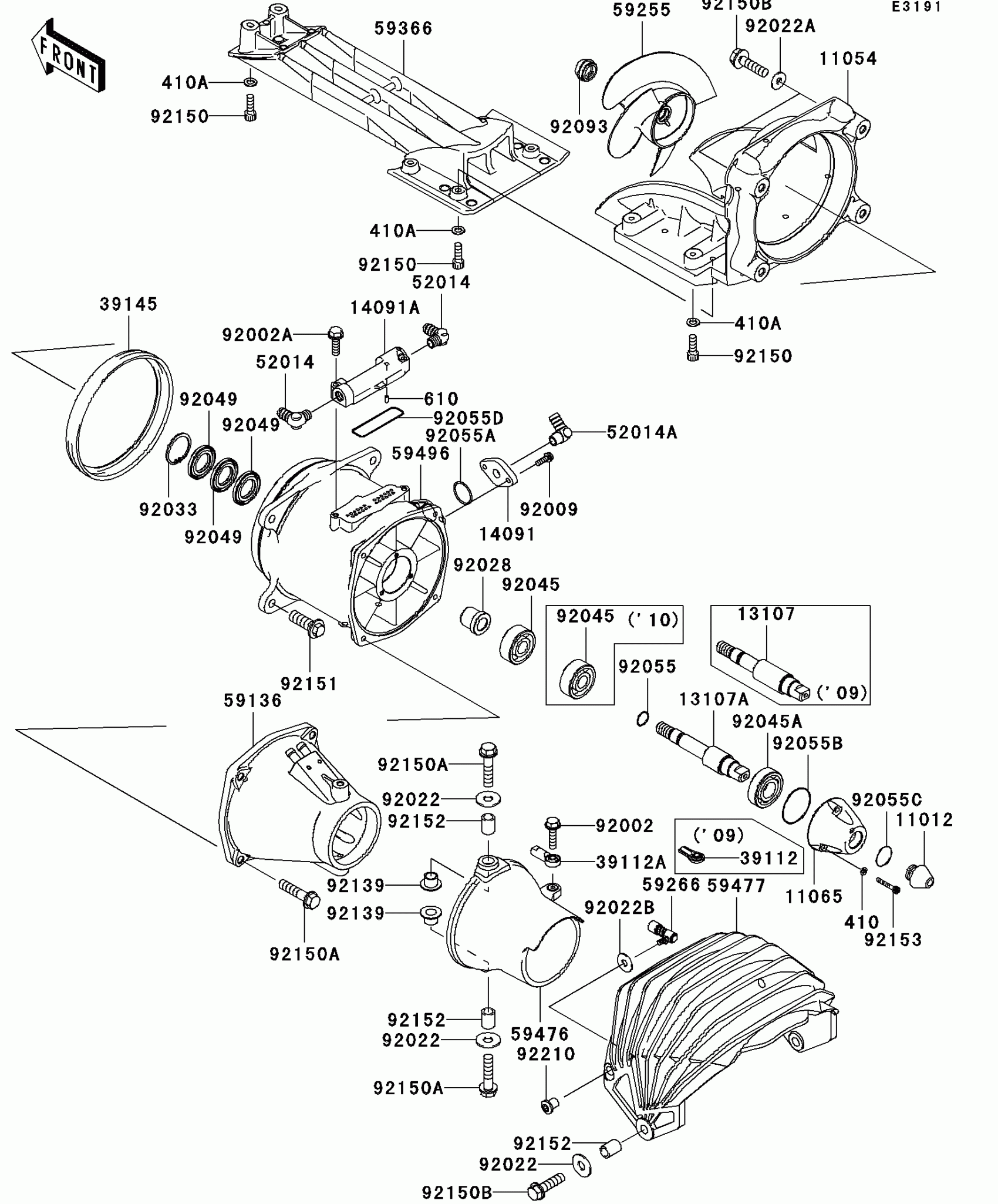

Kawasaki Jet Ski® Ultra® 260LX Jet Pump Diagram
#
11012
CAP
11012-3786
Unavailable
11054
BRACKET,JET PUMP
11054-3709
$563.21
11065
CAP
11065-3733
$49.96
13107A
SHAFT,DOUBLE BEARING
13107-3809
$99.03
14091
COVER,COOLING TUBE
14091-3808
$25.24
14091A
COVER,VANE GUIDE
14091-3817
$28.84
39112A
RODEND-TIE
39112-3707
$23.25
39145
TRIM-SEAL,VANE GUIDE
39145-3799
$56.36
52014
ELBOW
52014-3711
$30.12
52014A
ELBOW
52014-3727
$38.71
59136
NOZZLE-PUMP
59136-3764
$154.42
59255
IMPELLER-COMP
59255-3736
$595.48
59266
JOINT-BALL
59266-3710
$39.65
59366
GRATE
59366-3723
$237.38
59476
NOZZLE-STRG
59476-3744
$305.17
59477
BUCKET-REVERSE
59477-3712
Unavailable
59496
VANE-GUIDE
59496-3757
Unavailable
92002
BOLT,6X25
92002-3714
$5.00
92002A
BOLT,6X30
92002-3726
$4.69
92009
SCREW,6X20
92009-3848
$2.61
92022
WASHER,PLAIN
92022-3026
$3.60
92022A
WASHER,8.4X23X2.5
92022-3744
$4.18
92022B
WASHER
92022-567
$2.67
92028
BUSHING
92028-3773
Unavailable
92033
RING-SNAP
92033-3730
$9.11
92045
BEARING-BALL,6303R-6
92045-3744
Unavailable
92045A
BEARING-BALL,62/22 2RS
92045-3745
Unavailable
92049
SEAL-OIL
92049-3739
$28.94
92055
RING-O,13.0X1.9
92055-1011
$7.62
92055A
RING-O,27.7X1.9
92055-1272
$5.52
92055B
RING-O
92055-3741
$3.32
92055C
RING-O
92055-3744
$2.91
92055D
RING-O,70.2X74.0X1.90
92055-3765
Unavailable
92093
SEAL
92093-3749
$4.96
92139
BUSHING
92139-3701
Unavailable
92150
BOLT,SOCKET,6X18
92150-3775
$4.69
92150A
BOLT,8X35
92150-3792
$7.34
92150B
BOLT,FLANGED,8X30
92150-3803
$7.34
92151
BOLT,10X30
92151-3706
$6.57
92152
COLLAR,8.2X11.8X15
92152-3703
$7.68
92153
BOLT,SOCKET,5X30
92153-3742
$2.97
92210
NUT,6MM
92210-3789
$20.70
410
W-PLAIN-S,5MM
410S0500
$1.59
410A
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
610
ROLLER,4X8
610A0408
$4.31
