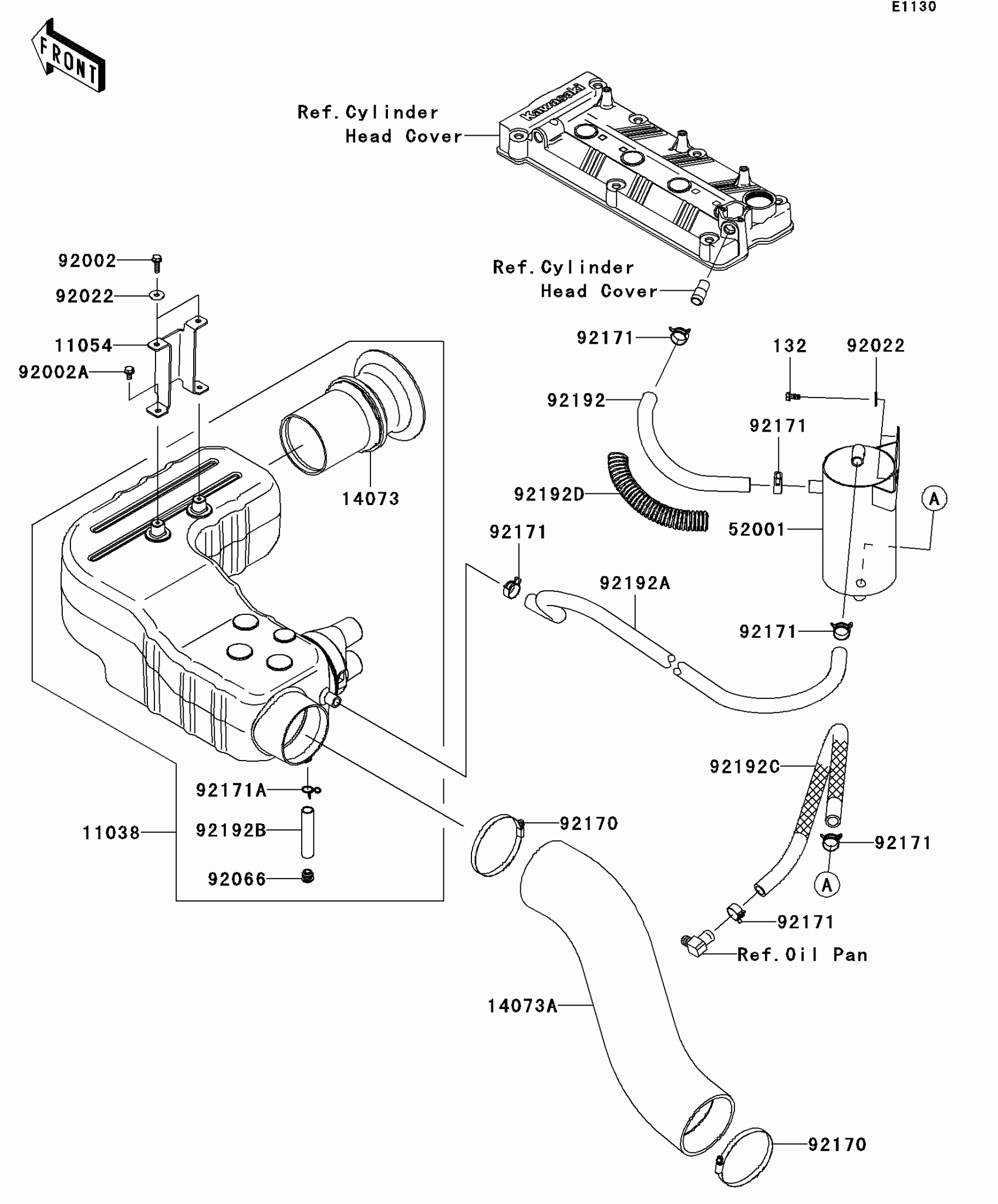

Kawasaki Jet Ski® Ultra® 260LX Intake Silencer Diagram

Description

Price

11038

CASE-ASSY-AIR FILTER

11038-3709

Unavailable

11054

BRACKET,AIR BOX

11054-3745

$48.51

14073

DUCT,INLET

14073-3826

Unavailable

14073A

DUCT,A/C-S/C

14073-3833

$187.24

52001

TANK-OIL,SEPARATOR

52001-3741

$71.71

92002

BOLT,6X20

92002-3755

$4.69

92002A

BOLT,6X12

92002-3763

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92066

PLUG,DRAIN

92066-3792

$11.04

92170

CLAMP

92170-3760

$11.56

92171

CLAMP,TUBE

92171-3710

Unavailable

92171A

CLAMP,15.75MM

92171-3721

$5.63

92192

TUBE,HEAD-OIL TANK

92192-3768

$15.71

92192A

TUBE,OIL TANK-A/C

92192-3769

$42.01

92192B

TUBE,12.7X15.9X75

92192-3794

$5.15

92192C

TUBE,OIL TANK-OIL PAN

92192-3807

$41.90

92192D

TUBE,CORRUGATED,L=160

92192-3832

$4.12

132

BOLT-FLANGED-SMALL,6X14

132BD0614

$3.67
