- Jet Ski® Ultra® 260LX
Hull Front Fittings

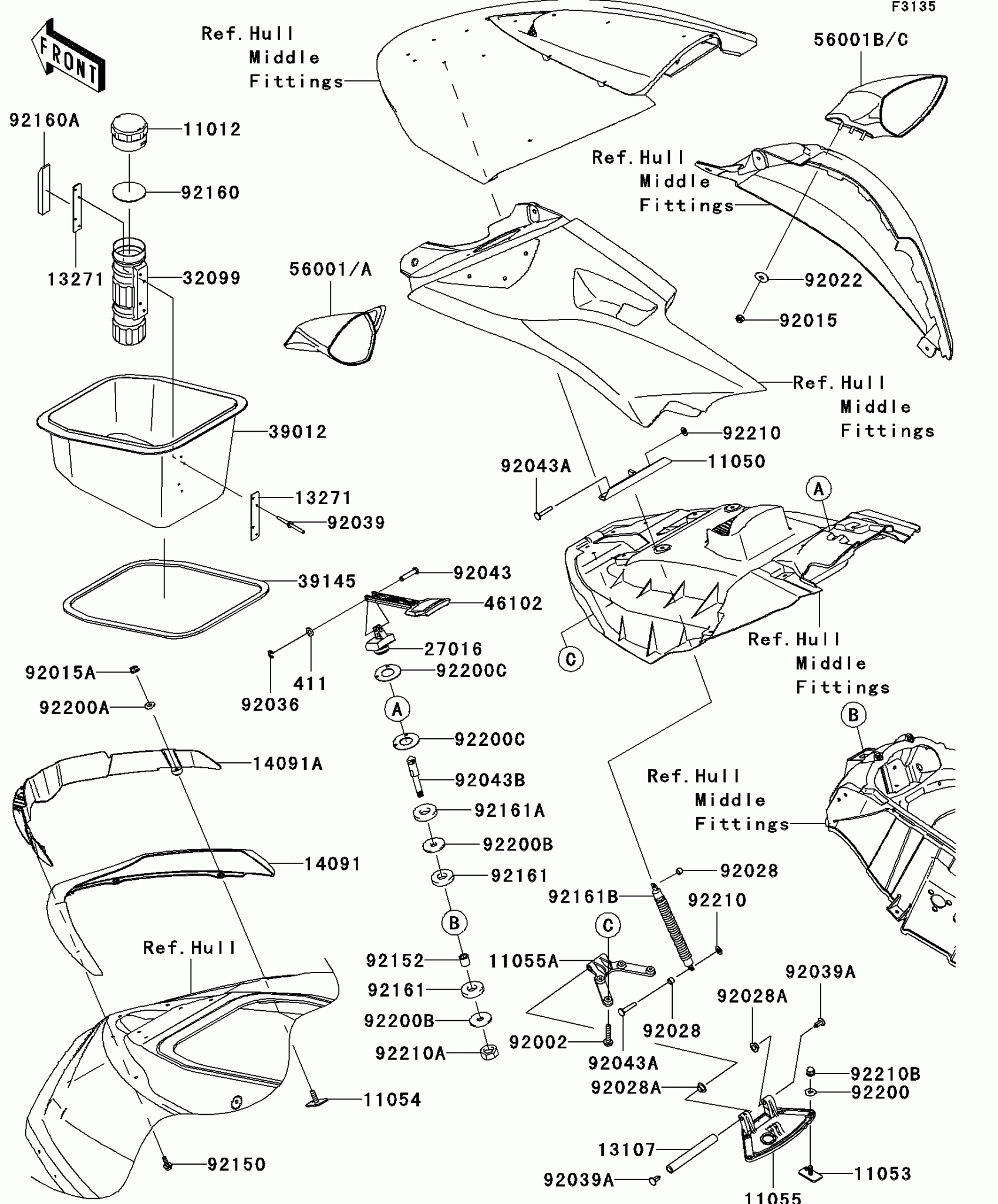

Kawasaki Jet Ski® Ultra® 260LX Hull Front Fittings Diagram
#
11012
CAP,FIRE EXTINGUISHER
11012-3766
$10.30
11050
BRACKET
11050-3778
Unavailable
11053
BRACKET
11053-3776
$9.48
11054
BRACKET
11054-3741
Unavailable
11055
BRACKET
11055-3705
$149.23
11055A
BRACKET
11055-3706
$121.91
13107
SHAFT,FRONT HINGE
13107-3802
$24.78
13271
PLATE,FIRE EXTINGUISHER
13271-3775
$12.66
14091
COVER,FR,TOP
14091-3779
$155.05
14091A
COVER,WATER PROTECT
14091-3788
$32.37
27016
LOCK-ASSY,HATCH
27016-3760
Unavailable
32099
CASE,FIRE EXTINGUISHER
32099-3769
$19.37
39012
CASE-STORAGE
39012-3744
Unavailable
39145
TRIM-SEAL,L=1627
39145-3807
$23.84
46102
ROD,HATCH OPENER
46102-3731
$11.61
56001A
MIRROR-ASSY,LH,M.TITANIUM
56001-3725-16S
$154.76
56001C
MIRROR-ASSY,RH,M.TITANIUM
56001-3726-16S
$154.76
92002
BOLT,6X30
92002-3726
$4.69
92015
NUT,LOCK,6MM
92015-3766
$5.91
92015A
NUT,6MM
92015-3767
$4.69
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92028
BUSHING
92028-3765
$3.29
92028A
BUSHING
92028-3770
$2.71
92036
RING,SNAP
92036-518
$1.56
92039
RIVET
92039-3783
$8.05
92039A
RIVET
92039-3788
$3.39
92043
PIN,6X27.5
92043-3732
$9.97
92043A
PIN,6X33
92043-3748
$11.20
92043B
PIN
92043-3760
Unavailable
92150
BOLT,5X16
92150-3778
$4.65
92152
COLLAR,8.2X14X13.2
92152-3750
$7.47
92160
DAMPER
92160-3814
$7.91
92160A
DAMPER
92160-3821
$8.86
92161
DAMPER
92161-3739
$6.18
92161A
DAMPER
92161-3747
$5.12
92161B
DAMPER,HATCH
92161-3778
Unavailable
92200
WASHER,6.5X16X1.0
92200-3712
$3.73
92200A
WASHER,6.5X14.5X1.5
92200-3775
$1.74
92200B
WASHER,8.5X32X2
92200-3786
$5.79
92200C
WASHER
92200-3799
$14.56
92210
NUT,SPEED,6MM
92210-3739
$1.86
92210A
NUT,LOCK,8MM
92210-3742
$6.57
92210B
NUT,CAP,6MM
92210-3785
$5.65
411
WASHER-PLAIN,6MM
411S0600
$2.06
