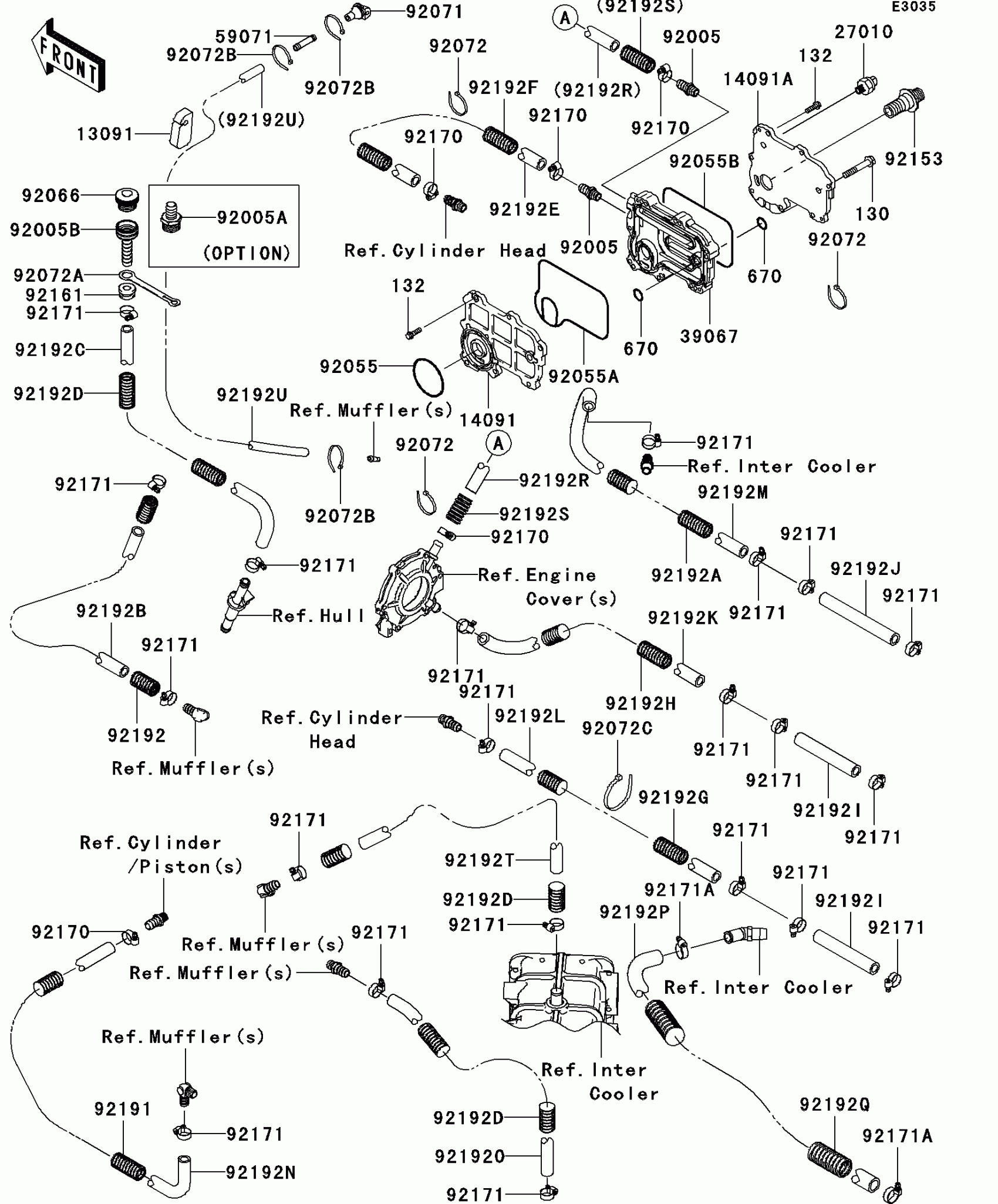

Kawasaki Jet Ski® Ultra® 260LX Cooling Diagram
#
13091
HOLDER
13091-3712
$4.65
14091
COVER,INSIDE
14091-3755
$85.68
14091A
COVER,OUTSIDE
14091-3756
$85.68
27010
SWITCH,OIL PRESSURE
27010-3786
$67.73
39067
COOLER-OIL
39067-3704
$259.71
59071
JOINT
59071-3764
$7.64
92005
FITTING
92005-3714
$18.72
92005A
FITTING,FLUSH
92005-3748
$9.68
92005B
FITTING,FLUSH
92005-3757
$15.89
92055
RING-O,58X3
92055-3767
$6.18
92055A
RING-O
92055-3770
$21.99
92055B
RING-O
92055-3772
$13.06
92066
PLUG
92066-3787
$11.84
92071
GROMMET
92071-3815
$5.46
92072
BAND,L=152
92072-3874
$4.18
92072A
BAND
92072-3877
$5.65
92072B
BAND,L=100.08
92072-3882
$2.02
92072C
BAND,L=372.24
92072-3883
$1.59
92153
BOLT,OIL COOLER
92153-3713
$27.52
92161
DAMPER
92161-1331
$3.26
92170
CLAMP
92170-3729
Unavailable
92171
CLAMP
92171-3714
$9.49
92171A
CLAMP,26MM
92171-3720
$5.04
92191
TUBE,CORRUGATED,19.5X23.8X500
92191-3884
$3.89
92192
TUBE,CORRUGATED,19.5X23.8X900
92192-3711
$5.42
92192A
TUBE,CORRUGATED,19.5X23.8X380
92192-3714
$2.67
92192B
TUBE,12X18X1000
92192-3740
$26.47
92192C
TUBE,WATER MUFFLER-HULL
92192-3746
$52.96
92192D
TUBE,CORRUGATED,L=600M
92192-3751
$3.82
92192E
TUBE,12X18X390
92192-3764
$17.96
92192F
TUBE,CORRUGATED,19.5X23.8X330
92192-3779
$4.28
92192G
TUBE,CORRUGATED,19.5X23.8X800
92192-3781
$5.19
92192H
TUBE,CORRUGATED,19.5X23.8X500
92192-3783
$4.62
92192I
TUBE,12X19X120
92192-3796
$10.21
92192J
TUBE,12X19X150
92192-3797
$11.82
92192K
TUBE,12X19X55&620
92192-3798
$37.51
92192L
TUBE,12X19X55&1000
92192-3799
$50.76
92192M
TUBE,HULL-I/C
92192-3800
$37.51
92192N
TUBE,12X18X70&550
92192-3802
$34.91
92192O
TUBE,12X18X700
92192-3803
$23.57
92192P
TUBE,I/C-HULL
92192-3814
$15.71
92192Q
TUBE,CORRUGATED,25.1X30X370
92192-3815
$4.94
92192R
TUBE,GENE.COVER-O/C
92192-3816
Unavailable
92192S
TUBE,CORRUGATED,19.5X23.8X700
92192-3817
Unavailable
92192T
TUBE,I/C-EX MANIFOLD
92192-3820
$36.04
92192U
TUBE,7X12X1590/30
92192-3821
$41.96
130
BOLT-FLANGED,8X50
130BD0850
$4.69
132
BOLT-FLANGED-SMALL,6X20
132BD0620
$4.12
670
O RING,14MM
670D2014
$5.52
