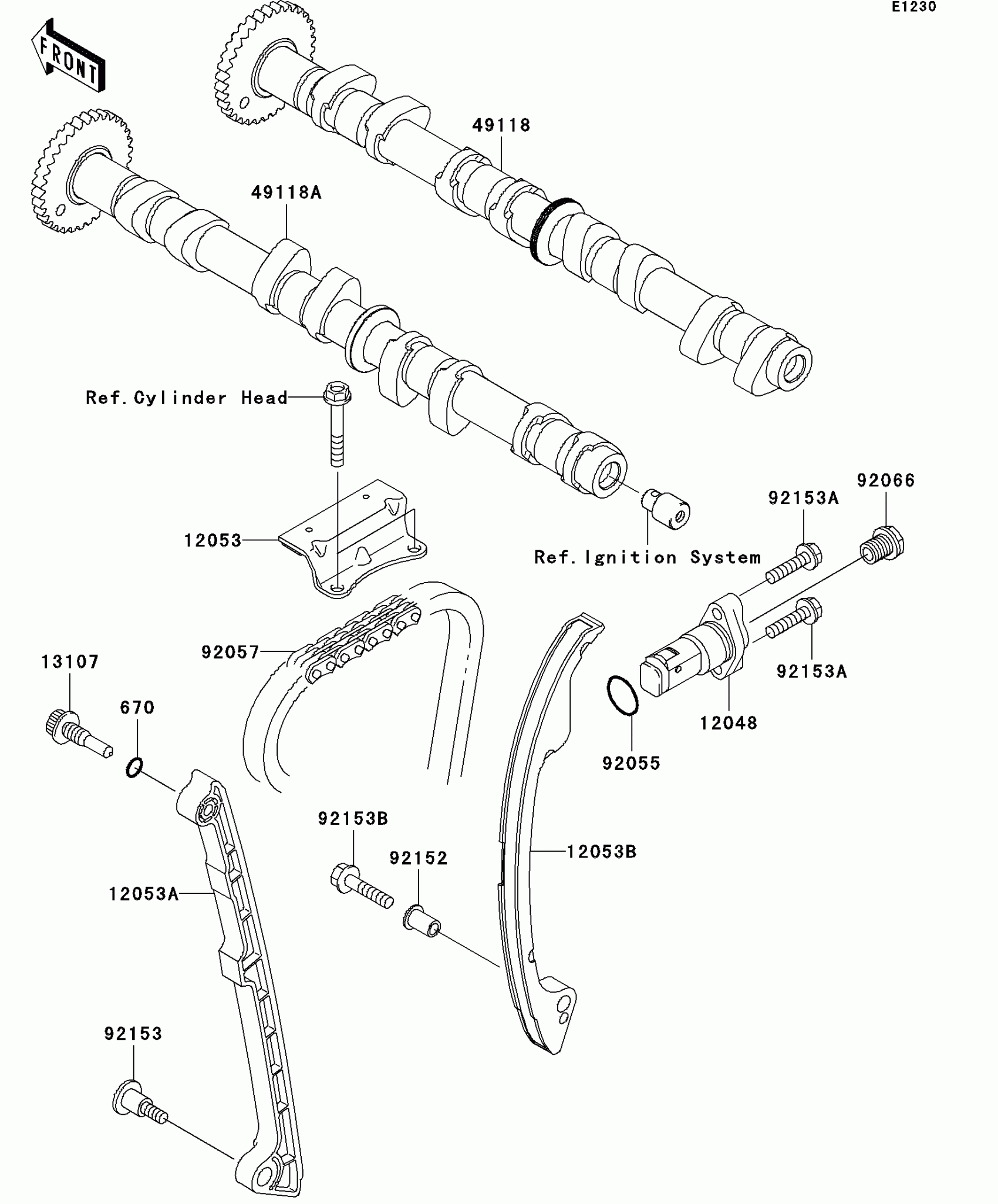

Kawasaki Jet Ski® Ultra® 260LX Camshaft(s)/Tensioner Diagram

Description

Price

12048

TENSIONER-ASSY

12048-3701

$131.55

12053

GUIDE-CHAIN,UPP

12053-1432

$38.21

12053A

GUIDE-CHAIN,EX SIDE

12053-3706

$41.61

12053B

GUIDE-CHAIN,IN SIDE

12053-3707

$54.96

13107

SHAFT,CHAIN GUIDE

13107-0157

$8.10

49118

CAMSHAFT-COMP,INTAKE

49118-3709

Unavailable

49118A

CAMSHAFT-COMP,EXHAUST

49118-3710

Unavailable

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,98XRH2015-138L

92057-3712

$88.19

92066

PLUG

92066-3780

$17.03

92152

COLLAR

92152-1167

$5.25

92153

BOLT,SOCKET,6X24.5

92153-1200

$8.81

92153A

BOLT,6X25

92153-3705

$4.39

92153B

BOLT,6X28

92153-3710

$5.39

670

O RING,9MM

670D1509

$3.57
