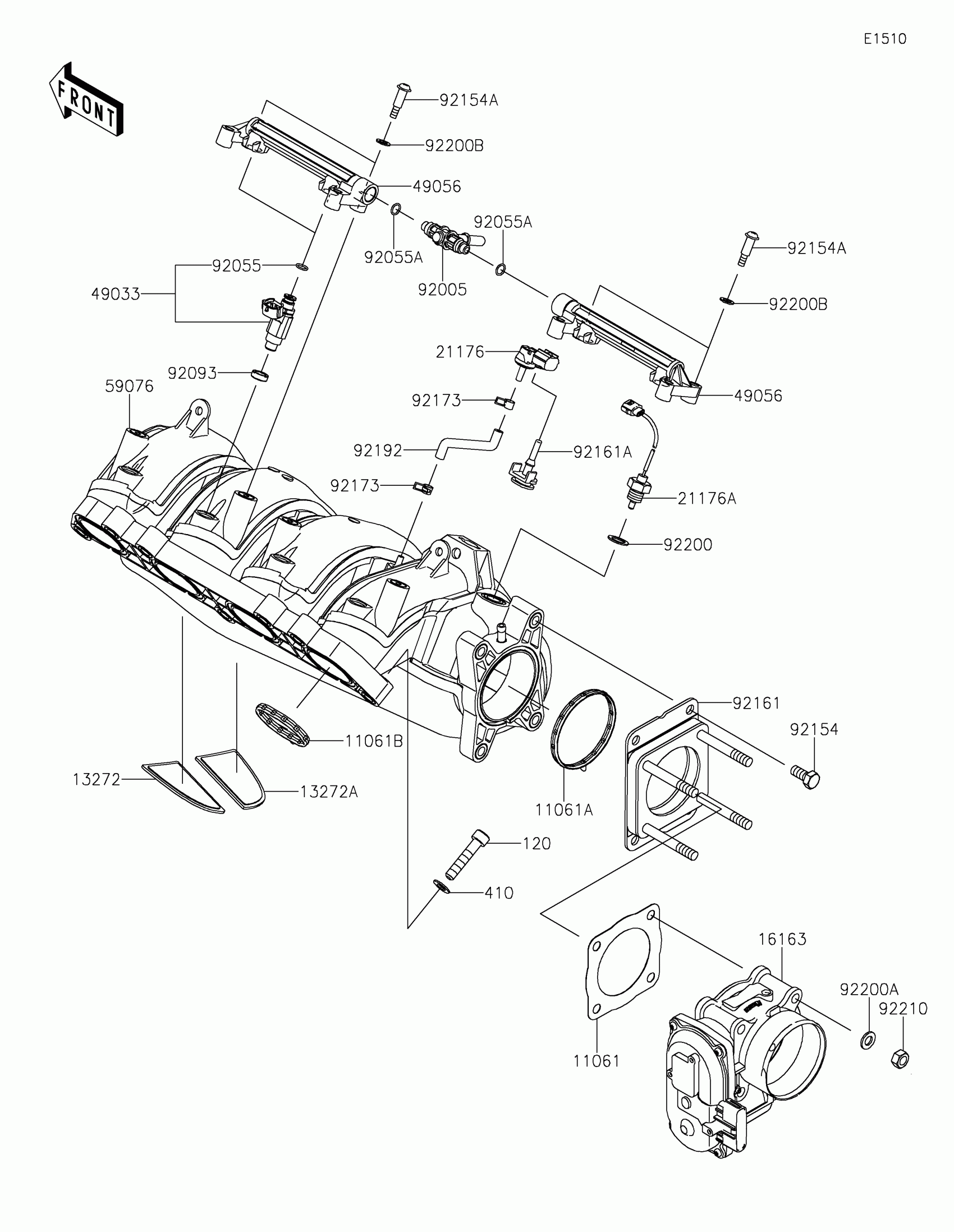

Kawasaki JET SKI® ULTRA® 160LX-S Throttle Diagram

Description

Price

11061

GASKET,THROTTLE

11061-0824

$55.37

11061A

GASKET,MANIFOLD

11061-3766

$15.06

11061B

GASKET,THROTTLE

11061-3767

$15.06

13272

PLATE

13272-2956

$34.11

13272A

PLATE

13272-2957

$34.11

16163

THROTTLE-ASSY

16163-1145

$1,224.88

21176

SENSOR,PRESSURE

21176-0906

$222.28

21176A

SENSOR,AIR TEMPERATURE

21176-3767

$197.51

49033

NOZZLE-INJECTION

49033-3707

$116.95

49056

PIPE-INJECTION,FUEL

49056-3705

$66.48

59076

MANIFOLD-INTAKE

59076-0006

$544.26

92005

FITTING,FUEL PIPE

92005-3766

$33.24

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92055A

RING-O

92055-3782

$9.17

92093

SEAL

92093-0127

$10.56

92154

BOLT

92154-1389

$7.59

92154A

BOLT

92154-3713

$17.91

92161

DAMPER

92161-1635

$120.60

92161A

DAMPER

92161-3796

$14.32

92173

CLAMP

92173-3702

$9.17

92192

TUBE

92192-1361

$4.87

92200

WASHER,12X18X1

92200-0712

$4.72

92200A

WASHER

92200-3806

$6.00

92200B

WASHER

92200-3807

$6.00

92210

NUT

92210-0897

$2.75

120

BOLT-SOCKET,8X40

120CC0840

$2.56

410

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58
