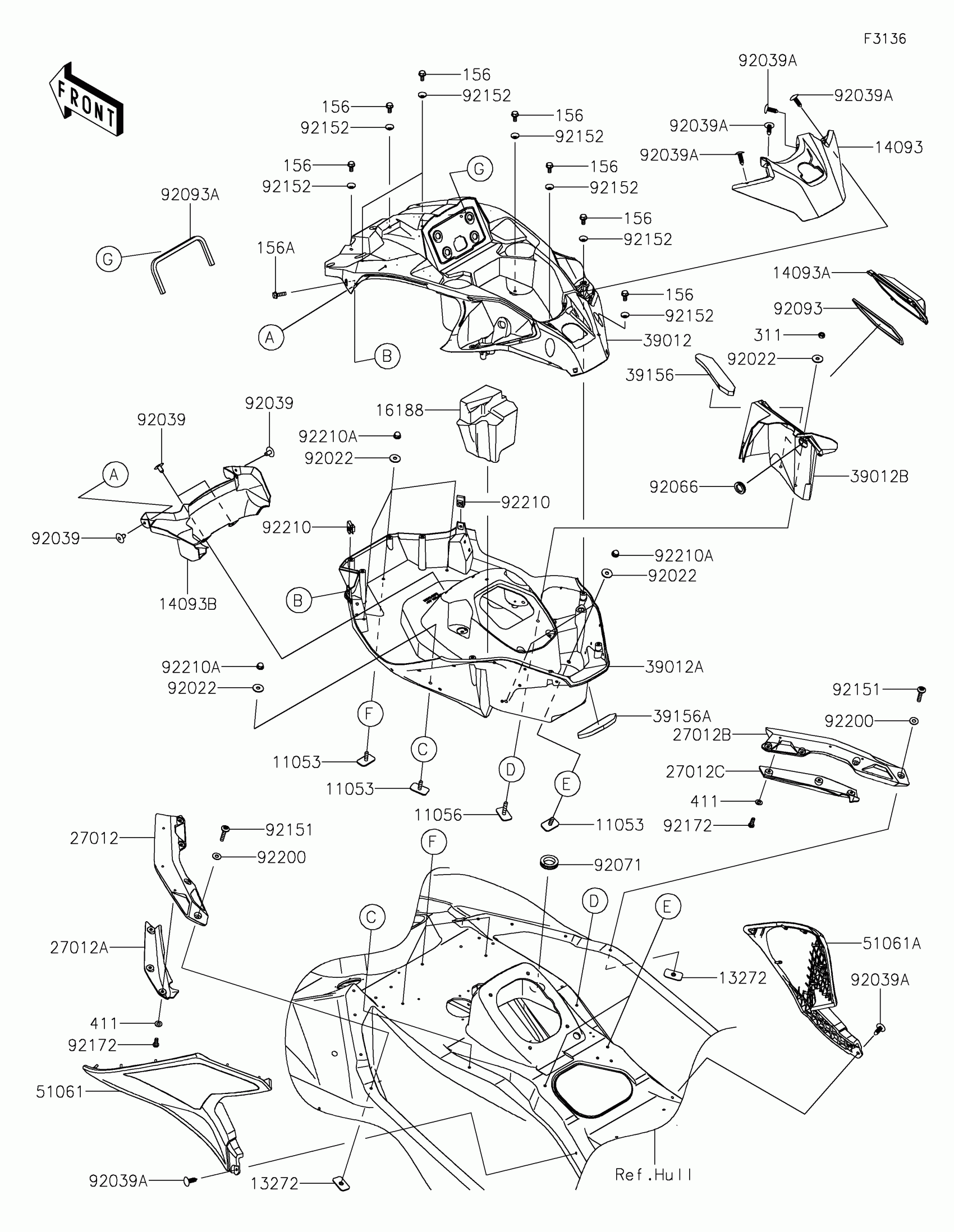

Kawasaki JET SKI® ULTRA® 160LX-S Hull Middle Fittings Diagram

Description

Price

11053

BRACKET

11053-3776

$9.17

11056

BRACKET

11056-3724

$4.46

13272

PLATE

13272-3861

$3.14

14093

COVER,CONSOL

14093-1164

$17.07

14093A

COVER,WATERPROOF,FR,RH

14093-1165

$9.60

14093B

COVER,HARNESS

14093-1203

$16.00

16188

FLOAT

16188-0065

$13.05

27012

HOOK,FR,LH,UPP

27012-0887

$31.49

27012A

HOOK,FR,LH,LWR

27012-0888

$8.37

27012B

HOOK,FR,RH,UPP

27012-0889

$31.49

27012C

HOOK,FR,RH,LWR

27012-0890

$8.37

39012

CASE-STORAGE,FR,CNT,UPP

39012-0071

$149.39

39012A

CASE-STORAGE,FR,CNT,LWR

39012-0072

$229.20

39012B

CASE-STORAGE,WATERPROOF,FR,RH

39012-0073

$16.73

39156

PAD

39156-2778

$6.76

39156A

PAD

39156-2815

$14.86

51061

PAD-KNEE,LH,BLACK

51061-0008-6Z

$111.56

51061A

PAD-KNEE,RH,BLACK

51061-0009-6Z

$111.56

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92039

RIVET

92039-3785

$3.54

92039A

RIVET

92039-3788

$2.34

92066

PLUG

92066-0984

$2.22

92071

GROMMET,31.5X50X11

92071-0737

$7.42

92093

SEAL

92093-0760

$4.93

92093A

SEAL

92093-0808

$5.71

92151

BOLT,SOCKET,6X30

92151-1605

$1.68

92152

COLLAR

92152-2951

$4.56

92172

SCREW,TAPPING,6X16

92172-1441

$1.32

92200

WASHER,6.5X16X1.0

92200-3712

$2.84

92210

NUT,6MM

92210-3768

$4.39

92210A

NUT,CAP,6MM

92210-3785

$4.27

156

BOLT-WP,6X14

156R0614

$3.51

156A

BOLT-WP,6X20

156R0620

$2.76

311

NUT-HEX,6MM

311R0600

$0.65

411

WASHER-PLAIN,6MM

411S0600

$1.49
