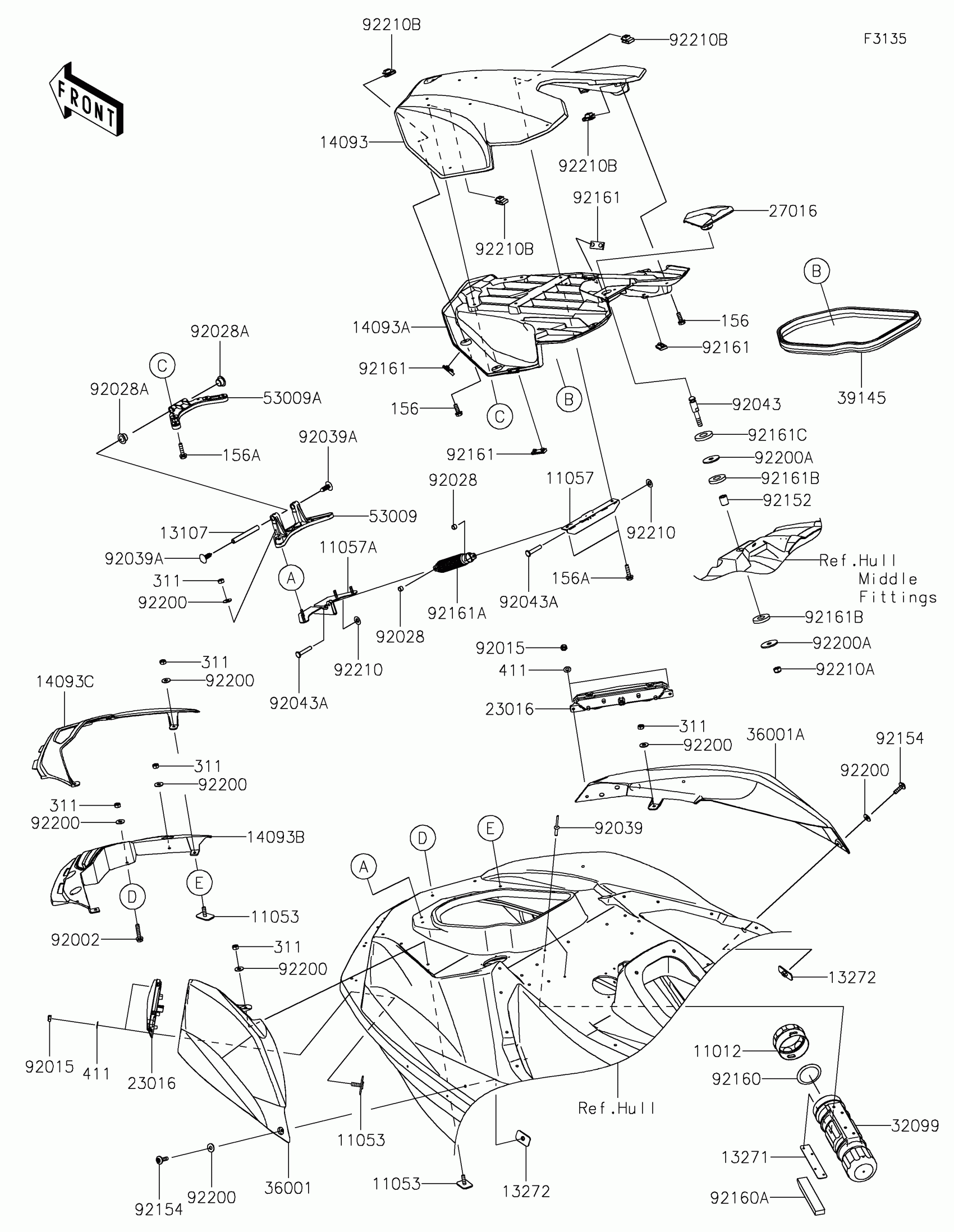

Kawasaki JET SKI® ULTRA® 160LX-S Hull Front Fittings Diagram

#

Description
Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$7.83

11053

BRACKET

11053-3776

$9.17

11057

BRACKET

11057-7383

$40.55

11057A

BRACKET

11057-7389

$61.31

13107

SHAFT,FRONT HINGE

13107-3802

$23.31

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.07

13272

PLATE

13272-3861

$3.14

14093

COVER,FR HATCH,C.S.F.ORANGE

14093-1166-57T

$243.28

14093A

COVER,FR HATCH,IN

14093-1167

$95.97

14093B

COVER,FR,TOP,INNER

14093-1170

$24.02

14093C

COVER,FR,TOP

14093-1287

$193.79

23016

LAMP-ASSY,LED,CLEAR

23016-0667

$89.40

27016

LOCK-ASSY,HATCH

27016-0101

$99.75

32099

CASE,FIRE EXTINGUISHER

32099-3769

$14.60

36001

COVER-SIDE,FR,LH,C.S.F.ORANGE

36001-0749-57T

$96.18

36001A

COVER-SIDE,FR,RH,C.S.F.ORANGE

36001-0750-57T

$96.18

39145

TRIM-SEAL,FR HATCH,IN

39145-0729

$114.48

53009

HINGE,DECK SIDE

53009-0306

Unavailable

53009A

HINGE,HATCH SIDE

53009-0307

$90.40

92002

BOLT,6X30

92002-3726

$3.57

92015

NUT,LOCK,6MM

92015-3766

$4.46

92028

BUSHING

92028-3765

$2.28

92028A

BUSHING

92028-3770

$1.90

92039

RIVET

92039-3783

$6.15

92039A

RIVET

92039-3788

$2.34

92043

PIN

92043-0754

$19.08

92043A

PIN,6X33

92043-3748

$10.76

92152

COLLAR,8.2X14X16.2

92152-0979

$12.85

92154

BOLT,SOCKET,6X20

92154-0918

$4.71

92160

DAMPER

92160-3814

$7.76

92160A

DAMPER

92160-3821

$8.63

92161

DAMPER,SEAT

92161-1489

$2.31

92161A

DAMPER,HATCH

92161-1581

$193.94

92161B

DAMPER

92161-3739

$4.20

92161C

DAMPER

92161-3747

$3.52

92200

WASHER,6.5X16X1.0

92200-3712

$2.84

92200A

WASHER,8.5X32X2

92200-3786

$4.39

92210

NUT,SPEED,6MM

92210-3739

$1.59

92210A

NUT,LOCK,8MM

92210-3742

$5.71

92210B

NUT,6MM

92210-3768

$4.39

156

BOLT-WP,6X18

156R0618

$2.84

156A

BOLT-WP,6X25

156R0625

$3.63

311

NUT-HEX,6MM

311R0600

$0.65

411

WASHER-PLAIN,6MM

411S0600

$1.49
