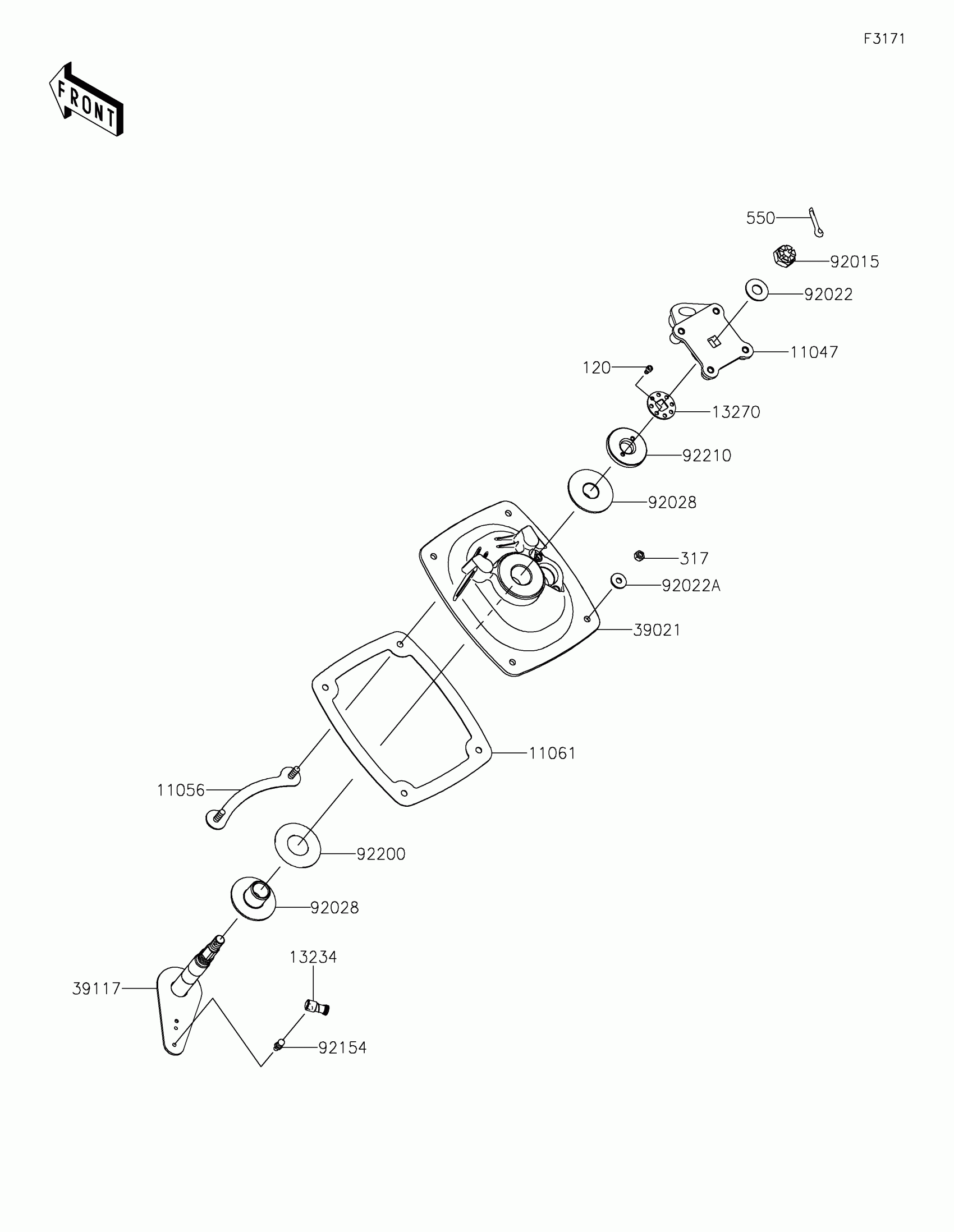

Kawasaki JET SKI® ULTRA® 160LX-S Handle Pole Diagram

Description

Price

11047

BRACKET,HANDLE HOLDER

11047-3759

$110.16

11056

BRACKET,HANDLE POLE BRACKET

11056-3712

$16.15

11061

GASKET,HANDLE POLE BRACKET

11061-3739

$31.07

13234

SHAFT-COMP

13234-3713

$82.19

13270

PLATE,STEERING NUT

13270-3808

$7.58

39021

BRACKET-HANDLE POLE

39021-3716

$331.57

39117

SHAFT-STRG

39117-3715

$339.45

92015

NUT,CASTLE,14MM

92015-3805

$36.18

92022

WASHER,15X34X2.0

92022-3738

$4.93

92022A

WASHER,8.4X23X2.5

92022-3744

$3.19

92028

BUSHING,STEERING

92028-3748

$24.03

92154

BOLT,BALL,6MM

92154-3710

$22.58

92200

WASHER,32.5X70X2

92200-3718

$15.76

92210

NUT,STEERING SHAFT,22MM

92210-3800

$98.23

120

BOLT-SOCKET,5X10

120R0510

$3.01

317

NUT

317R0800

$1.42

550

PIN-COTTER,3X35

550S3035

$4.02
