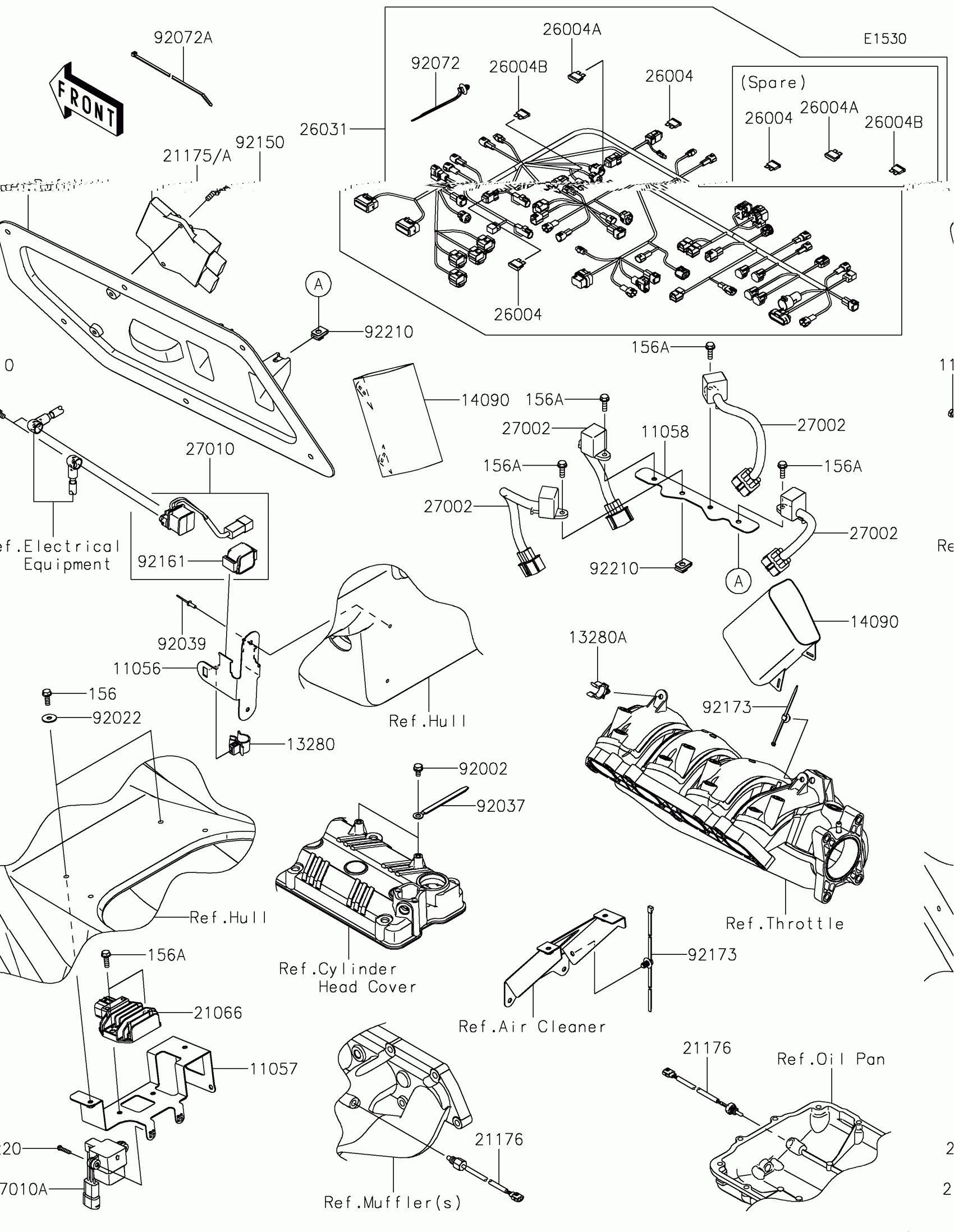

Kawasaki JET SKI® ULTRA® 160LX-S Fuel Injection Diagram

Description

Price

11056

BRACKET,SWITCH

11056-3855

$19.15

11057

BRACKET,REGULATOR&VDS

11057-7354

$22.81

11058

BRACKET,RELAY

11058-0929

$21.88

13280

HOLDER

13280-0789

$1.47

13280A

HOLDER,HARNESS

13280-3760

$3.25

14090

COVER,COUPLER

14090-1611

$8.31

21066

REGULATOR-VOLTAGE

21066-0755

$170.09

21175

CONTROL UNIT-ELECTRONIC

21175-1884

$896.83

21176

SENSOR,TEMP

21176-0741

$83.49

26004

FUSE-ASSY,20A

26004-0033

$2.37

26004A

FUSE-ASSY,10A

26004-0034

$2.19

26004B

FUSE-ASSY,15A

26004-0037

$2.25

26031

HARNESS,MAIN

26031-3957

$711.00

27002

RELAY-ASSY

27002-3703

$45.41

27010

SWITCH

27010-0710

$149.26

27010A

SWITCH,VDS

27010-3785

$264.90

92002

BOLT,6X12

92002-3763

$3.57

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92037

CLAMP,L=100

92037-3736

$4.85

92039

RIVET

92039-3714

$0.79

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92072A

BAND,L=372.24

92072-3883

$1.39

92150

BOLT,6X18

92150-3729

$3.57

92161

DAMPER,SWITCH

92161-1625

$5.86

92173

CLAMP

92173-0742

$6.99

92210

NUT,6MM

92210-3768

$4.39

110

BOLT,6X8

110R0608

$2.15

156

BOLT-WP,6X18

156R0618

$2.84

156A

BOLT-WP,6X20

156R0620

$2.76

220

SCREW-PAN-CROS,4X20

220R0420

$1.73
