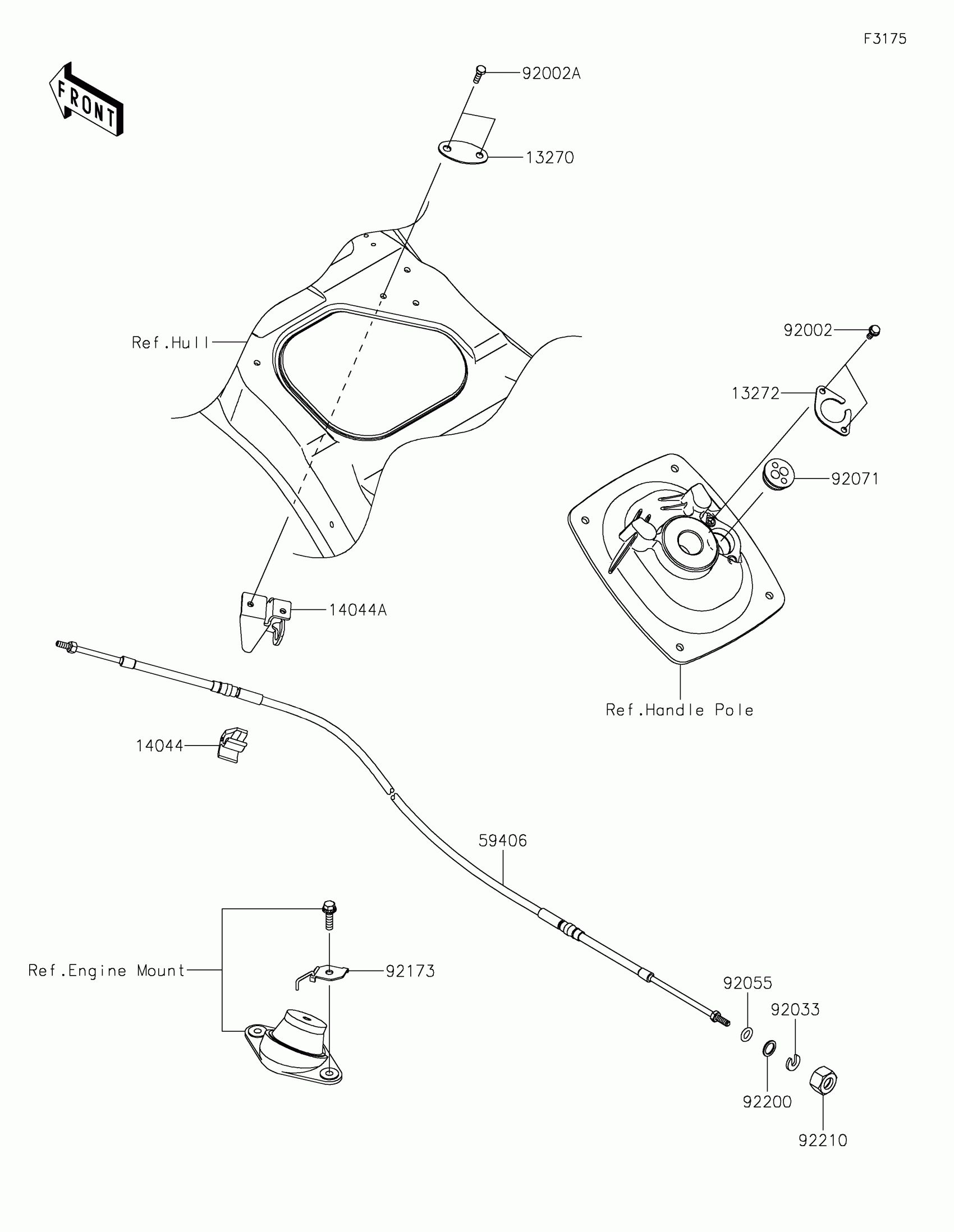

Kawasaki JET SKI® ULTRA® 160LX-S Cables Diagram

Description

Price

13270

PLATE

13270-3860

$8.20

13272

PLATE

13272-3729

$13.61

14044

HOLDER-CABLE

14044-3765

$3.14

14044A

HOLDER-CABLE,STEERING

14044-3769

$16.05

59406

CABLE-STRG

59406-0003

$132.19

92002

BOLT,6X16

92002-3728

$3.24

92002A

BOLT,6X20

92002-3755

$3.57

92033

RING-SNAP

92033-3735

$5.87

92055

RING-O

92055-3778

$1.04

92071

GROMMET,HARNESS

92071-3790

$9.34

92173

CLAMP

92173-3704

$23.92

92200

WASHER,14.5X20X1.5

92200-3793

$1.85

92210

NUT,22MM

92210-3772

$10.34
