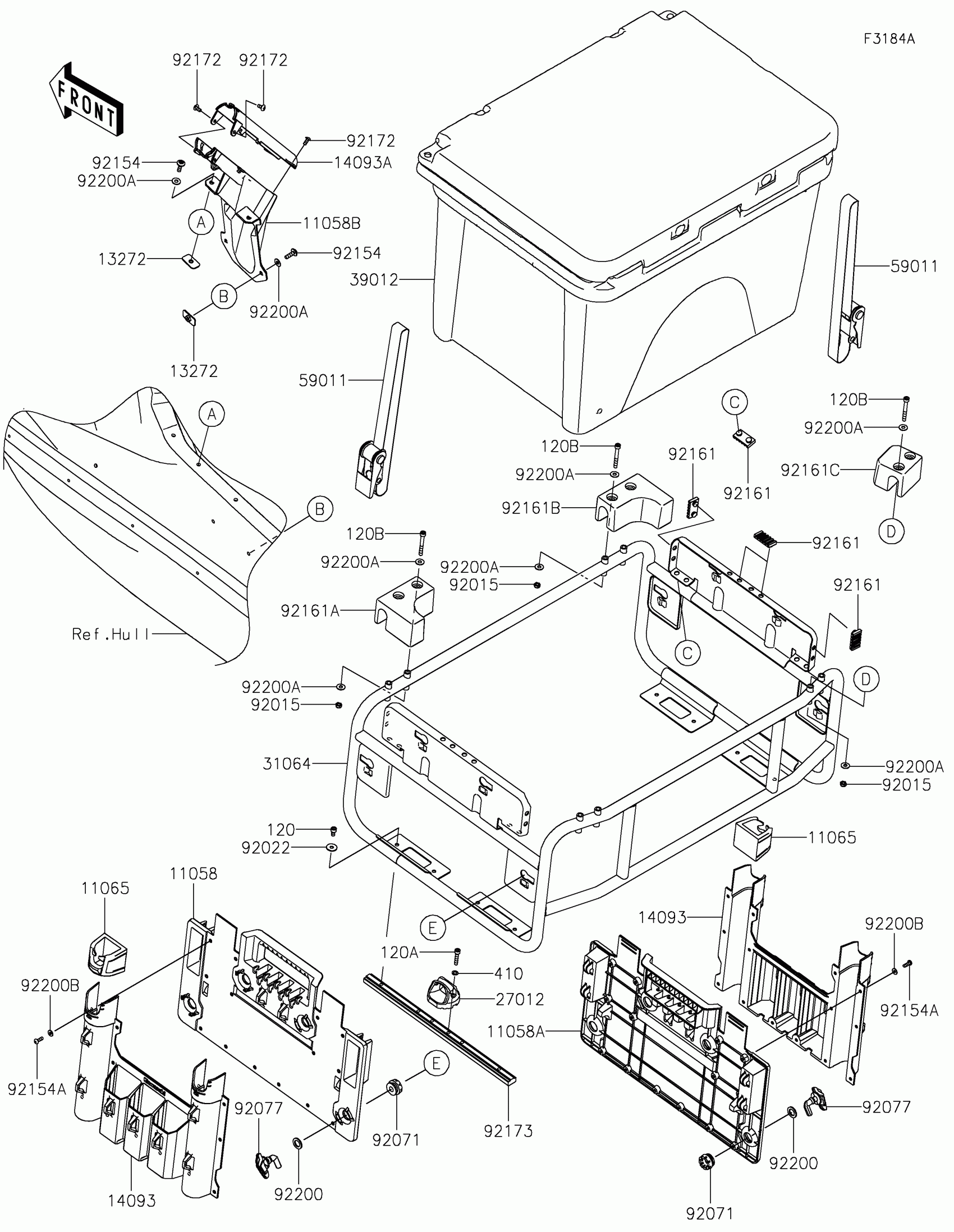

Kawasaki JET SKI® ULTRA® 160LX-S ANGLER Other(Carrier) Diagram

Description

Price

11058

BRACKET,ROD HOLDER,LH

11058-1131

$42.10

11058A

BRACKET,ROD HOLDER,RH

11058-1132

$42.10

11058B

BRACKET,ROD HOLDER

11058-1136

$10.64

11065

CAP,ROD HOLDER

11065-1454

$9.43

13272

PLATE

13272-3861

$3.57

14093

COVER,ROD HOLDER,C.WHITE

14093-1528-57Z

$28.27

14093A

COVER,ROD HOLDER

14093-1529

$8.51

27012

HOOK

27012-0899

$34.34

31064

PIPE-COMP,RACK

31064-0786

$1,330.23

39012

CASE-STORAGE,COOLER

39012-0079

$435.68

59011

BELT,TIE DOWN

59011-0070

$28.12

92015

NUT,LOCK,6MM

92015-3766

$5.91

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92071

GROMMET

92071-0746

$1.16

92077

KNOB,ROD HOLDER

92077-0046

$35.82

92154

BOLT,SOCKET,6X20

92154-0918

$6.26

92154A

BOLT,SOCKET,5X15

92154-7402

$1.37

92161

DAMPER,SEAT

92161-1489

$3.35

92161A

DAMPER,RACK,FR,LH

92161-2615

$25.81

92161B

DAMPER,RACK,FR,RH

92161-2616

$25.81

92161C

DAMPER,RACK,RR

92161-2617

$21.19

92172

SCREW,5X12

92172-1546

$2.36

92173

CLAMP

92173-2697

$211.34

92200

WASHER,13.6X22X2

92200-2702

$2.69

92200A

WASHER,6.5X16X1.0

92200-3712

$3.73

92200B

WASHER,5X12X1

92200-3796

$2.15

120

BOLT-SOCKET,6X12

120R0612

$1.91

120A

BOLT-SOCKET,6X30

120R0630

$4.39

120B

BOLT-SOCKET,6X50

120R0650

$5.33

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78
