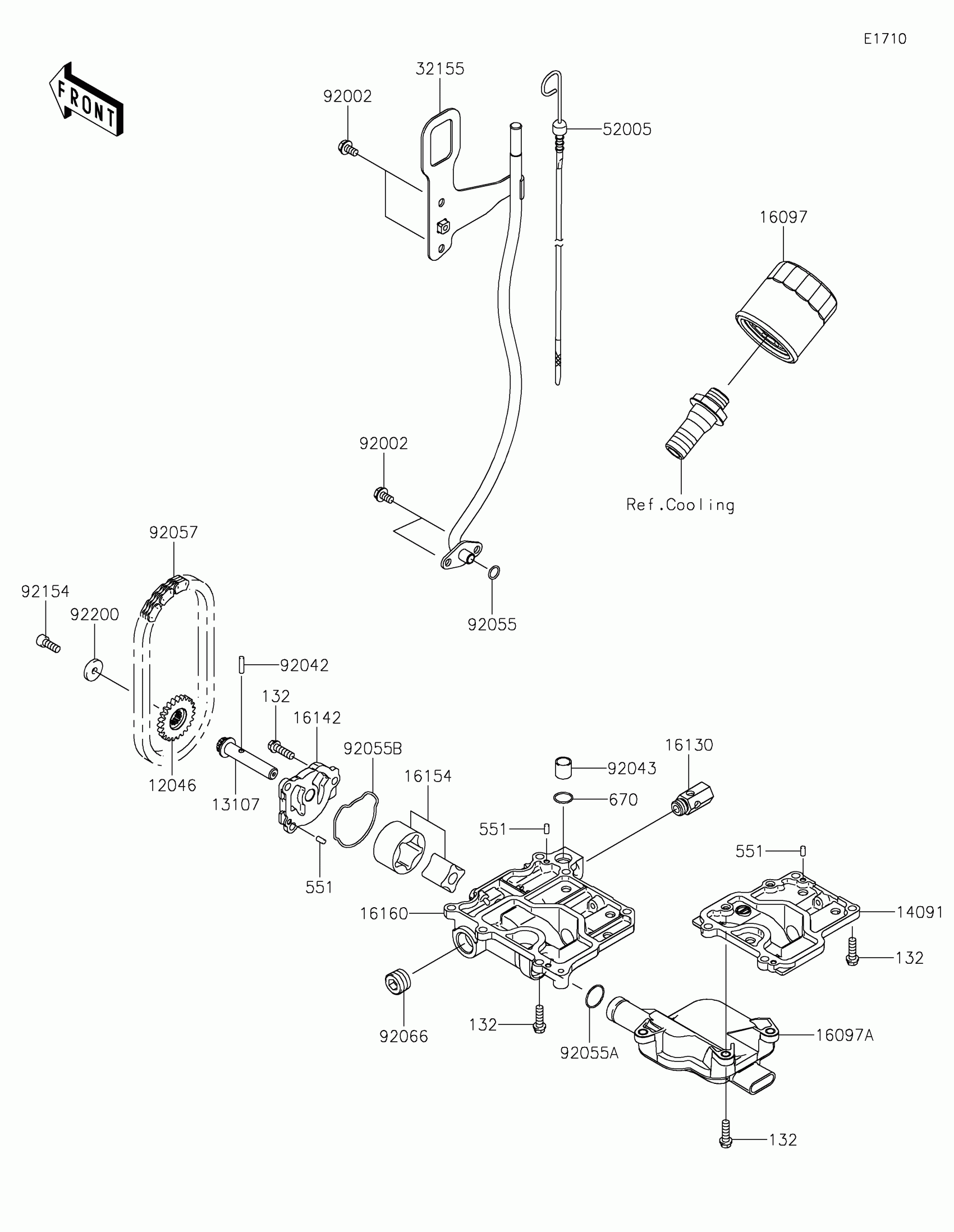

Kawasaki JET SKI® ULTRA® 160LX-S ANGLER Oil Pump Diagram

Description

Price

12046

SPROCKET,23T

12046-3708

$18.92

13107

SHAFT

13107-0730

$47.72

14091

COVER

14091-3767

$77.11

16097

FILTER-ASSY-OIL

16097-0007

$15.48

16097A

FILTER-ASSY-OIL

16097-3702

$51.51

16130

VALVE-ASSY-RELIEF

16130-3701

$46.98

16142

COVER-PUMP

16142-3703

$37.56

16154

ROTOR-PUMP

16154-1124

$70.09

16160

BODY,OIL PUMP

16160-0705

$129.40

32155

PIPE,OIL LEVEL

32155-2149

$181.20

52005

GAUGE,OIL LEVEL

52005-3710

$66.67

92002

BOLT,6X12

92002-3763

$4.69

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92043

PIN,11.5X14X14

92043-1279

$5.00

92055

RING-O,9.8X2.4

92055-1150

$8.10

92055A

RING-O,19.8X1.9

92055-1332

$4.69

92055B

RING-O

92055-3764

$6.57

92057

CHAIN,OIL PUMP,98XRH2010-52L

92057-3713

$28.19

92066

PLUG,PT1/2X12.5

92066-0002

$8.98

92154

BOLT,SOCKET,6X16

92154-3709

$1.94

92200

WASHER,6X20X3.2

92200-0120

$2.12

132

BOLT-FLANGED-SMALL,6X20

132BD0620

$4.12

551

PIN-DOWEL

551R0408

$5.38

670

O RING,14MM

670D2014

$5.52
