Description

Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$10.30

11053

BRACKET

11053-3776

$9.48

11057

BRACKET

11057-7383

$39.79

11057A

BRACKET

11057-7389

$60.14

13107

SHAFT,FRONT HINGE

13107-3802

$24.78

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.66

13272

PLATE

13272-3861

$3.57

14093

COVER,FR HATCH,IN

14093-1167

$61.66

14093A

COVER,FR,TOP,INNER

14093-1170

$24.85

14093B

COVER,FR,TOP,T.GREEN

14093-1288-42S

$116.57

14094

COVER,FR HATCH,M.C.GRAY

14094-0267-57B

$200.37

23016

LAMP-ASSY,LED,CLEAR

23016-0677

$87.80

27016

LOCK-ASSY,HATCH

27016-0101

$97.85

32099

CASE,FIRE EXTINGUISHER

32099-3769

$19.37

36001

COVER-SIDE,FR,LH,C.WHITE

36001-0747-57Z

$61.76

36001A

COVER-SIDE,FR,RH,C.WHITE

36001-0748-57Z

$61.76

39145

TRIM-SEAL,FR HATCH,IN

39145-0776

$34.02

53009

HINGE,DECK SIDE

53009-0306

$108.34

53009A

HINGE,HATCH SIDE

53009-0307

$88.69

92002

BOLT,6X30

92002-3726

$4.69

92015

NUT,LOCK,6MM

92015-3766

$5.91

92028

BUSHING

92028-3765

$3.29

92028A

BUSHING

92028-3770

$2.71

92039

RIVET

92039-3783

$8.05

92039A

RIVET

92039-3788

$3.39

92043

PIN

92043-0754

$20.32

92043A

PIN,6X33

92043-3748

$11.20

92151

BOLT,SOCKET,6X30

92151-1605

$2.34

92152

COLLAR,8.2X14X16.2

92152-0979

$13.49

92160

DAMPER

92160-3814

$7.91

92160A

DAMPER

92160-3821

$8.86

92161

DAMPER,SEAT

92161-1489

$3.35

92161A

DAMPER,HATCH

92161-1581

$189.92

92161B

DAMPER

92161-3739

$6.18

92161C

DAMPER

92161-3747

$5.12

92200

WASHER,6.5X16X1.0

92200-3712

$3.73

92200A

WASHER,8.5X32X2

92200-3786

$5.79

92210

NUT,SPEED,6MM

92210-3739

$1.86

92210A

NUT,LOCK,8MM

92210-3742

$6.57

92210B

NUT,6MM

92210-3768

$5.79

156

BOLT-WP,6X18

156R0618

$3.73

156A

BOLT-WP,6X25

156R0625

$4.76

311

NUT-HEX,6MM

311R0600

$0.70

411

WASHER-PLAIN,6MM

411S0600

$2.06

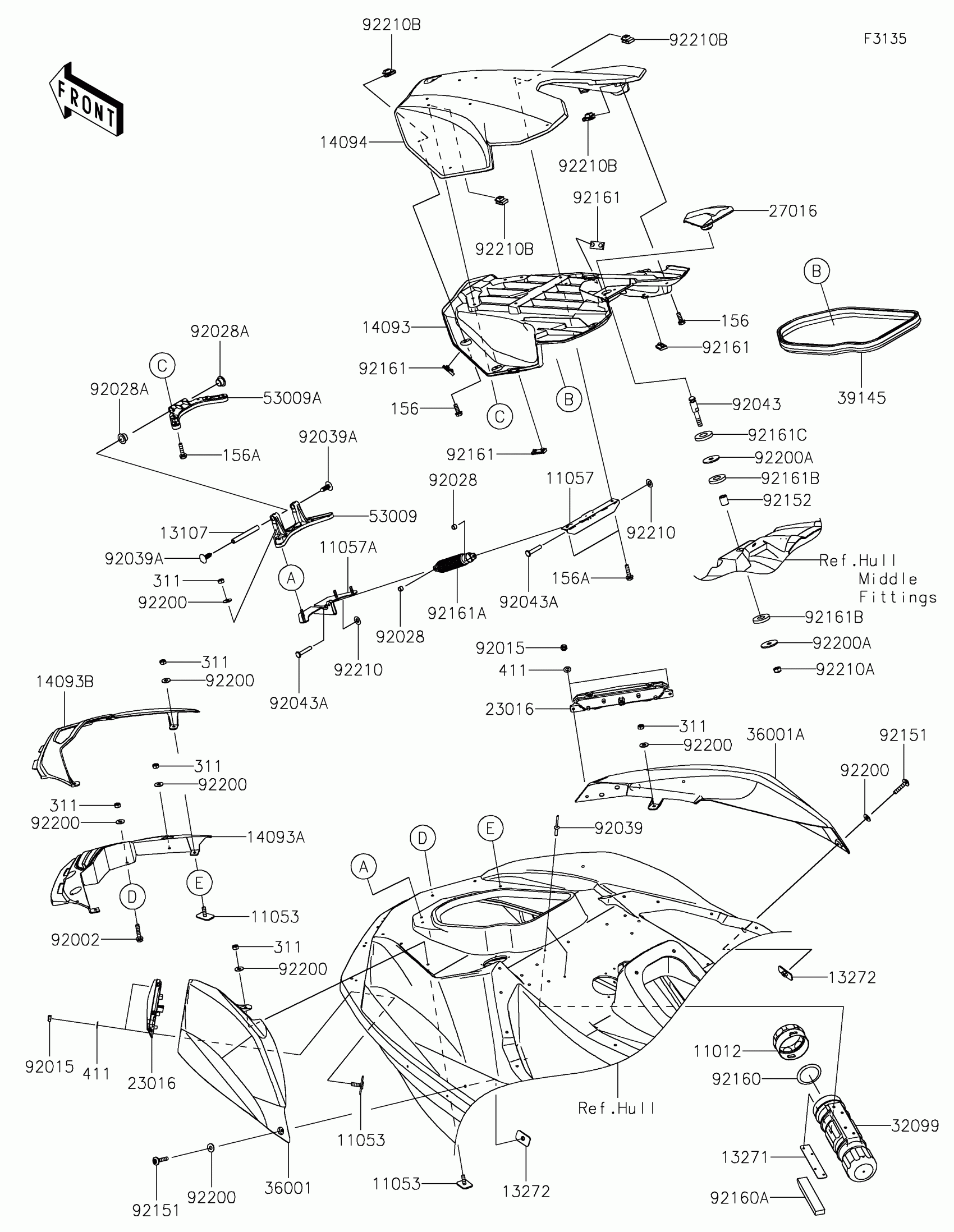

Kawasaki JET SKI® ULTRA® 160LX-S ANGLER Hull Front Fittings Diagram

CAP,FIRE EXTINGUISHER

BRACKET

BRACKET

BRACKET

SHAFT,FRONT HINGE

PLATE,FIRE EXTINGUISHER

PLATE

COVER,FR HATCH,IN

COVER,FR,TOP,INNER

COVER,FR,TOP,T.GREEN

COVER,FR HATCH,M.C.GRAY

LAMP-ASSY,LED,CLEAR

LOCK-ASSY,HATCH

CASE,FIRE EXTINGUISHER

COVER-SIDE,FR,LH,C.WHITE

COVER-SIDE,FR,RH,C.WHITE

TRIM-SEAL,FR HATCH,IN

HINGE,DECK SIDE

HINGE,HATCH SIDE

BOLT,6X30

NUT,LOCK,6MM

BUSHING

BUSHING

RIVET

RIVET

PIN

PIN,6X33

BOLT,SOCKET,6X30

COLLAR,8.2X14X16.2

DAMPER

DAMPER

DAMPER,SEAT

DAMPER,HATCH

DAMPER

DAMPER

WASHER,6.5X16X1.0

WASHER,8.5X32X2

NUT,SPEED,6MM

NUT,LOCK,8MM

NUT,6MM

BOLT-WP,6X18

BOLT-WP,6X25

NUT-HEX,6MM

WASHER-PLAIN,6MM
