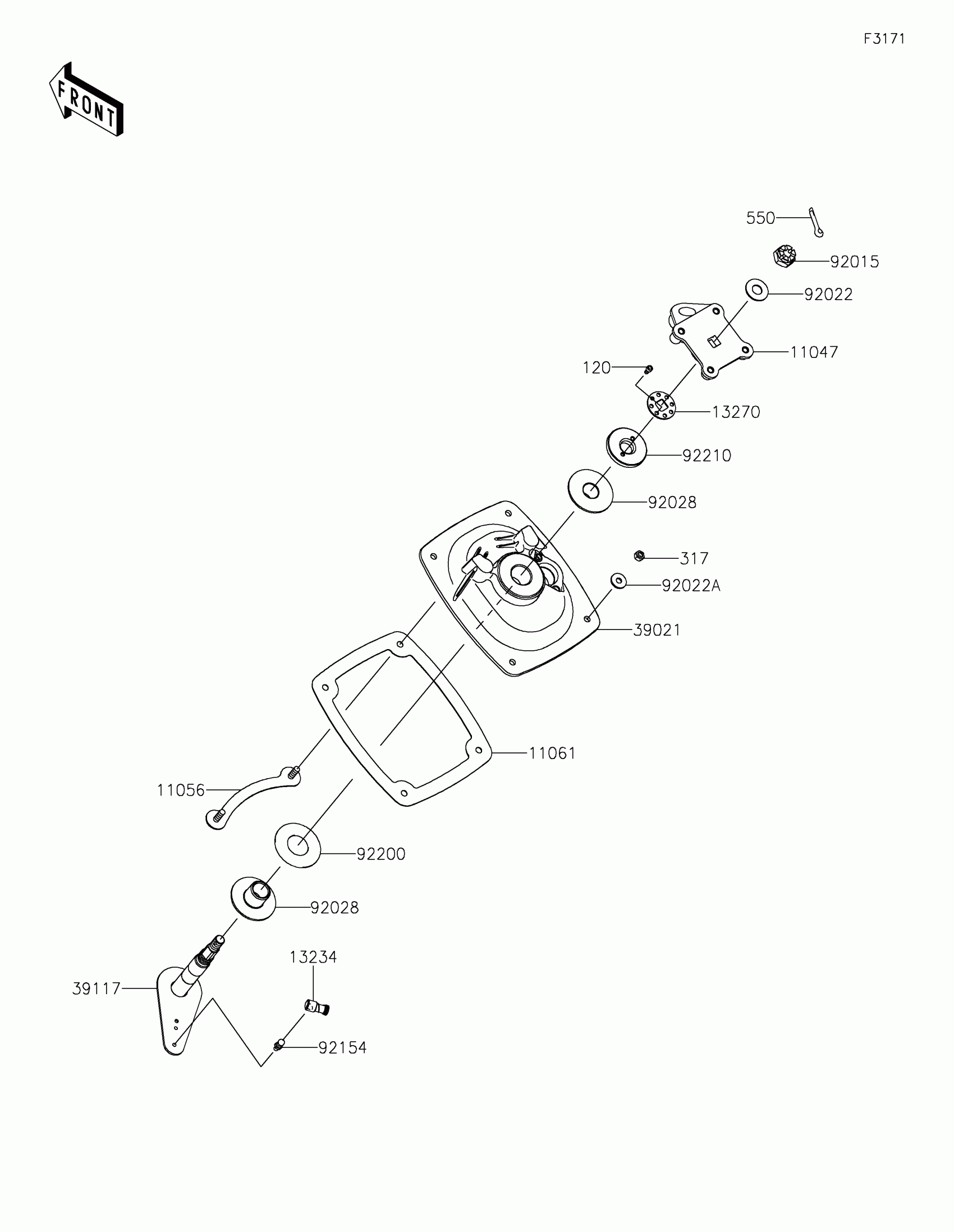

Kawasaki JET SKI® ULTRA® 160LX-S ANGLER Handle Pole Diagram

Description

Price

11047

BRACKET,HANDLE HOLDER

11047-3759

$107.88

11056

BRACKET,HANDLE POLE BRACKET

11056-3712

$17.17

11061

GASKET,HANDLE POLE BRACKET

11061-3739

$30.48

13234

SHAFT-COMP

13234-3713

$80.64

13270

PLATE,STEERING NUT

13270-3808

$7.71

39021

BRACKET-HANDLE POLE

39021-3716

$324.79

39117

SHAFT-STRG

39117-3715

$332.50

92015

NUT,CASTLE,14MM

92015-3805

$35.50

92022

WASHER,15X34X2.0

92022-3738

$6.57

92022A

WASHER,8.4X23X2.5

92022-3744

$4.18

92028

BUSHING,STEERING

92028-3748

$25.59

92154

BOLT,BALL,6MM

92154-3710

$23.99

92200

WASHER,32.5X70X2

92200-3718

$16.69

92210

NUT,STEERING SHAFT,22MM

92210-3800

$96.36

120

BOLT-SOCKET,5X10

120R0510

$3.94

317

NUT

317R0800

$1.96

550

PIN-COTTER,3X35

550S3035

$4.22
