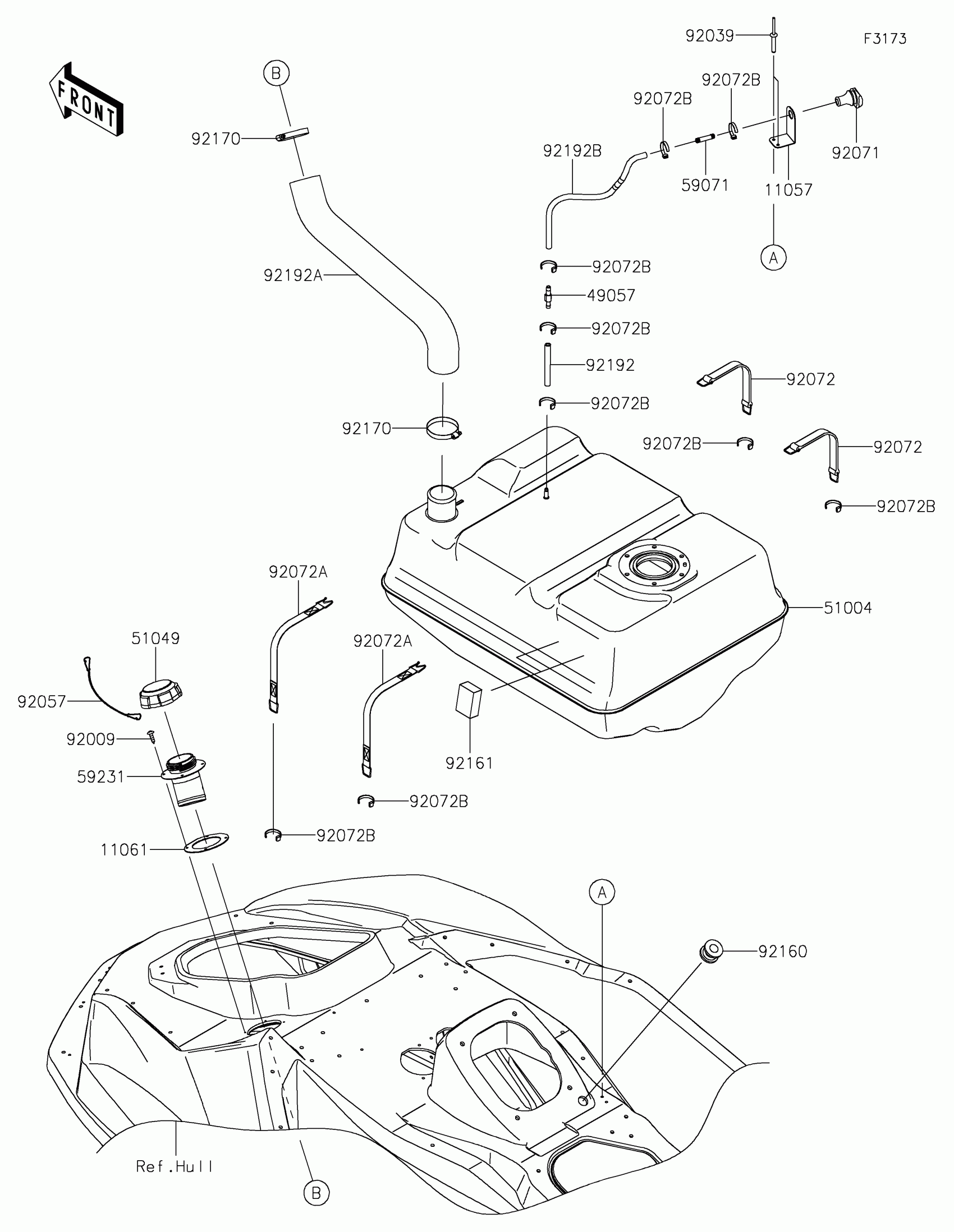

Kawasaki JET SKI® ULTRA® 160LX-S ANGLER Fuel Tank Diagram

Description

Price

11057

BRACKET

11057-7353

$9.59

11061

GASKET,FUEL-FILLER

11061-1399

$9.95

49057

VALVE-RELIEF

49057-0002

$58.19

51004

TANK-FUEL

51004-0032

$496.85

51049

CAP-TANK,FUEL

51049-0713

$76.29

59071

JOINT

59071-3764

$7.51

59231

FILLER,FUEL TANK

59231-0752

$7.78

92009

SCREW,TAPPING,4X16

92009-3849

$1.20

92039

RIVET

92039-3783

$6.15

92057

CHAIN,COVER,L=100

92057-3704

$14.56

92071

GROMMET

92071-3841

$7.22

92072

BAND

92072-3845

$17.34

92072A

BAND

92072-3847

$22.61

92072B

BAND,L=100.08

92072-3882

$1.71

92160

DAMPER,MUFFLER MOUNT

92160-1116

$4.18

92161

DAMPER

92161-1595

$4.34

92170

CLAMP

92170-1764

$8.62

92192

TUBE,5.8X11X100

92192-1795

$17.36

92192A

TUBE,FUEL TANK-FILLER

92192-2512

$182.70

92192B

TUBE,5.8X10.8X380

92192-2601

$9.51
