Description

Price

11057

BRACKET,SPEAKER,UPP

11057-7386

$10.88

11057A

BRACKET,SPEAKER CASE,UPP

11057-7394

$24.17

11057B

BRACKET,SPEAKER CASE,LH,LWR

11057-7461

$25.74

11057C

BRACKET,SPEAKER CASE,RH,LWR

11057-7462

$25.74

13272

PLATE,SPEAKER,LWR

13272-3866

$10.05

14093

COVER,SPEAKER,LH,UPP

14093-1178

$15.98

14093A

COVER,SPEAKER,RH,UPP

14093-1179

$15.98

14093B

COVER,SPEAKER GRILL

14093-1186

$15.98

21178

CONTROL-SWITCH,AUDIO

21178-0005

$192.51

21181

AMPLIFIER

21181-0021

$471.04

21185

SPEAKER,LH,UPP

21185-0020

$129.79

21185A

SPEAKER,LWR

21185-0021

$221.36

21185B

SPEAKER,RH,UPP

21185-0023

$127.99

32099

CASE,SPEAKER,LH,UPP

32099-0816

$15.15

32099A

CASE,SPEAKER,RH,UPP

32099-0817

$15.15

32099B

CASE,SPEAKER,LH,LWR,UPP,S.BLK

32099-0818-839

$47.06

32099C

CASE,SPEAKER,LH,LWR,LWR,S.BLK

32099-0819-839

$38.99

32099D

CASE,SPEAKER,RH,LWR,UPP,S.BLK

32099-0820-839

$47.06

32099E

CASE,SPEAKER,RH,LWR,LWR,S.BLK

32099-0821-839

$38.99

39145

TRIM-SEAL,SPEAKER CASE,LH,UPP

39145-0731

$5.45

39145A

TRIM-SEAL,SPEAKER CASE,RH,UPP

39145-0732

$5.45

39145B

TRIM-SEAL,SPEAKER CASE,LWR

39145-0734

$10.05

39145C

TRIM-SEAL,SPEAKER,UPP

39145-0735

$3.62

53004

MAT

53004-0703

$3.51

59221

CONNECTOR-CORD,USB

59221-0020

$16.53

92015

NUT,LOCK,6MM

92015-3766

$5.91

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92039

RIVET,3.2X8

92039-3763

$1.81

92071

GROMMET

92071-3826

$3.64

92150

BOLT,5X12

92150-3760

$8.84

92151

BOLT,SOCKET,5X14

92151-1581

$1.83

92154

BOLT,SOCKET,4X40

92154-4331

$1.72

92154A

BOLT,HEX,4X25

92154-4366

$1.49

92161

DAMPER

92161-2459

$42.04

92200

WASHER,5X12X1

92200-3796

$2.15

92210

NUT,CLIP,4MM

92210-1877

$5.41

92210A

NUT

92210-1934

$1.83

311

NUT-HEX,5MM

311R0500

$1.75

410

WASHER-PLAIN-SMALL,4MM

410S0400

$1.33

410A

W-PLAIN-S,5MM

410S0500

$1.59

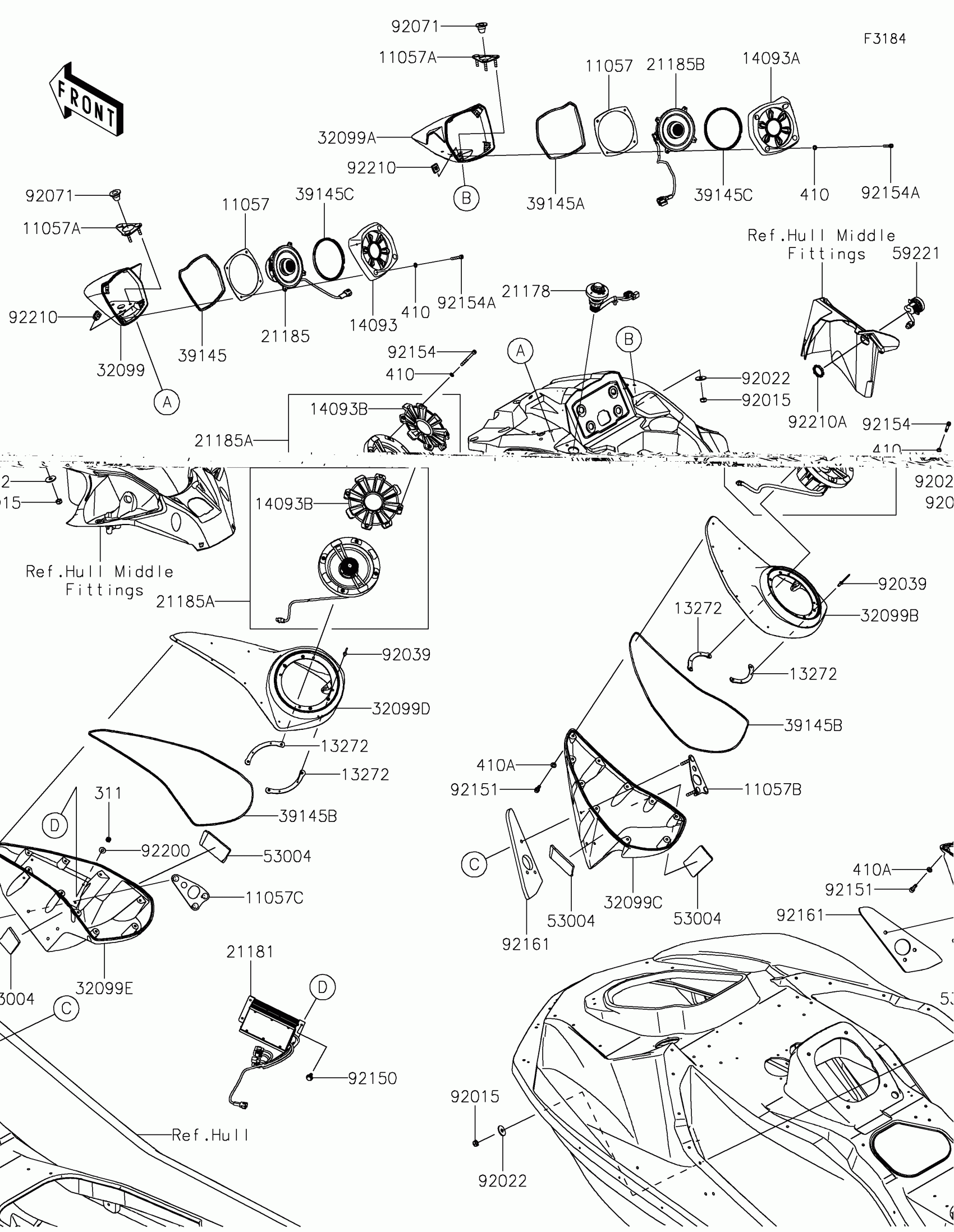

Kawasaki JET SKI® ULTRA® 160LX Other(Audio System) Diagram

BRACKET,SPEAKER,UPP

BRACKET,SPEAKER CASE,UPP

BRACKET,SPEAKER CASE,LH,LWR

BRACKET,SPEAKER CASE,RH,LWR

PLATE,SPEAKER,LWR

COVER,SPEAKER,LH,UPP

COVER,SPEAKER,RH,UPP

COVER,SPEAKER GRILL

CONTROL-SWITCH,AUDIO

AMPLIFIER

SPEAKER,LH,UPP

SPEAKER,LWR

SPEAKER,RH,UPP

CASE,SPEAKER,LH,UPP

CASE,SPEAKER,RH,UPP

CASE,SPEAKER,LH,LWR,UPP,S.BLK

CASE,SPEAKER,LH,LWR,LWR,S.BLK

CASE,SPEAKER,RH,LWR,UPP,S.BLK

CASE,SPEAKER,RH,LWR,LWR,S.BLK

TRIM-SEAL,SPEAKER CASE,LH,UPP

TRIM-SEAL,SPEAKER CASE,RH,UPP

TRIM-SEAL,SPEAKER CASE,LWR

TRIM-SEAL,SPEAKER,UPP

MAT

CONNECTOR-CORD,USB

NUT,LOCK,6MM

WASHER,6.5X20X1.5

RIVET,3.2X8

GROMMET

BOLT,5X12

BOLT,SOCKET,5X14

BOLT,SOCKET,4X40

BOLT,HEX,4X25

DAMPER

WASHER,5X12X1

NUT,CLIP,4MM

NUT

NUT-HEX,5MM

WASHER-PLAIN-SMALL,4MM

W-PLAIN-S,5MM
