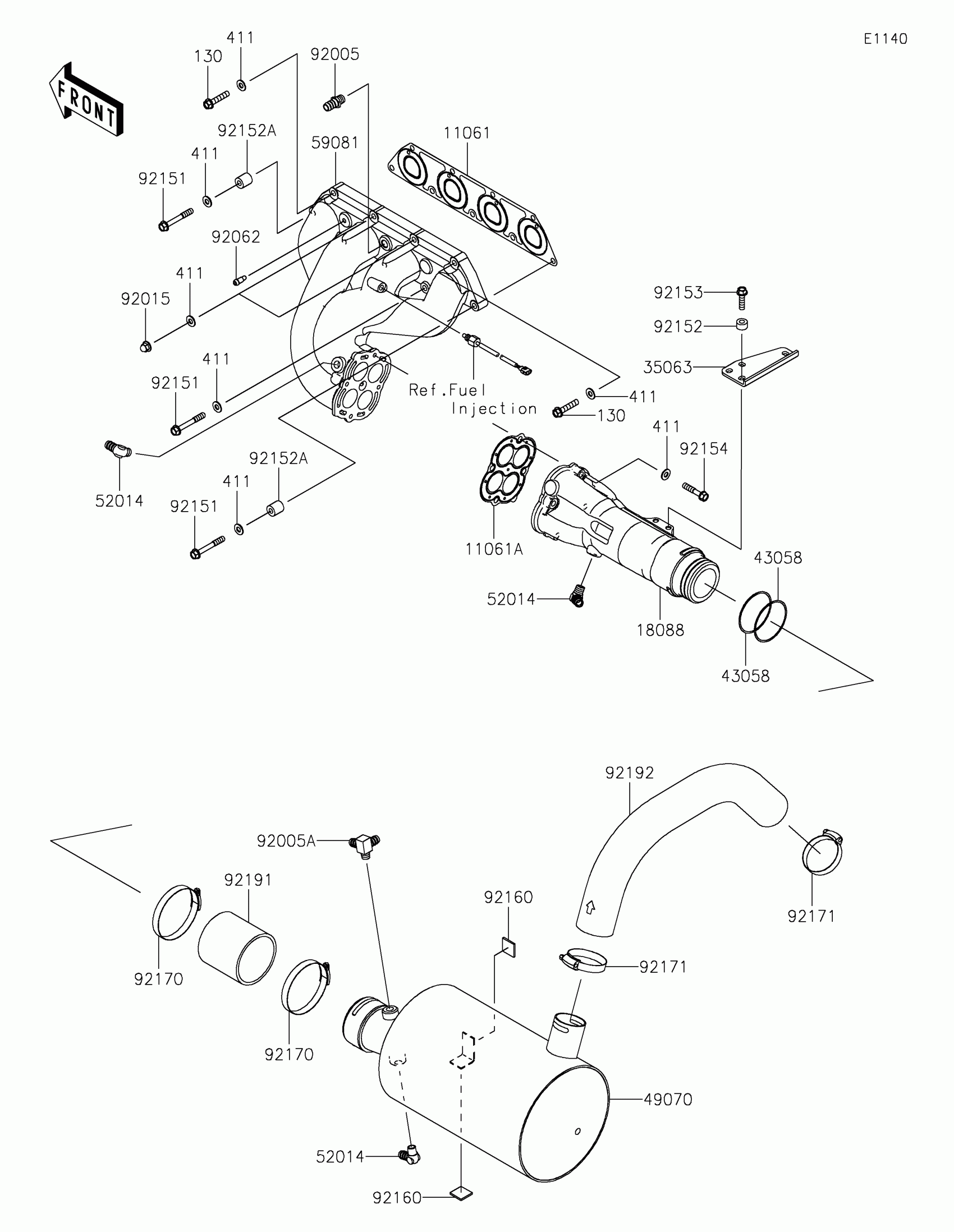

Kawasaki JET SKI® ULTRA® 160LX Muffler(s) Diagram

Description

Price

11061

GASKET,MANIFOLD EXHAUST

11061-3713

$36.86

11061A

GASKET,PIPE EXHAUST

11061-3714

$14.31

18088

PIPE-EXHAUST

18088-3723

$366.81

35063

STAY

35063-3704

$29.42

43058

RING,GASKET

43058-3733

$18.44

49070

MUFFLER-COMP

49070-0045

$868.95

52014

ELBOW

52014-3711

$30.70

59081

MANIFOLD-EXHAUST

59081-3741

Unavailable

92005

FITTING

92005-3714

$14.71

92005A

FITTING

92005-3751

$53.31

92015

NUT,CAP,8MM

92015-1371

$3.97

92062

NOZZLE

92062-0562

$10.22

92151

BOLT,8X60

92151-3730

$5.78

92152

COLLAR

92152-3736

$6.07

92152A

COLLAR,8.2X17X10

92152-3740

$48.32

92153

BOLT,FLANGED,8X30

92153-3722

$2.10

92154

BOLT,FLANGED,8X40

92154-0992

$2.44

92160

DAMPER,25X25

92160-3864

$2.66

92170

CLAMP

92170-3764

$9.95

92171

CLAMP

92171-3723

$5.51

92191

TUBE,PIPE EX-MUFFLER

92191-3986

$20.12

92192

TUBE,W/M-TAIL PIPE

92192-1173

$46.28

130

BOLT-FLANGED,8X40

130CD0840

$3.35

411

WASHER-PLAIN,8MM

411S0800

$2.49
