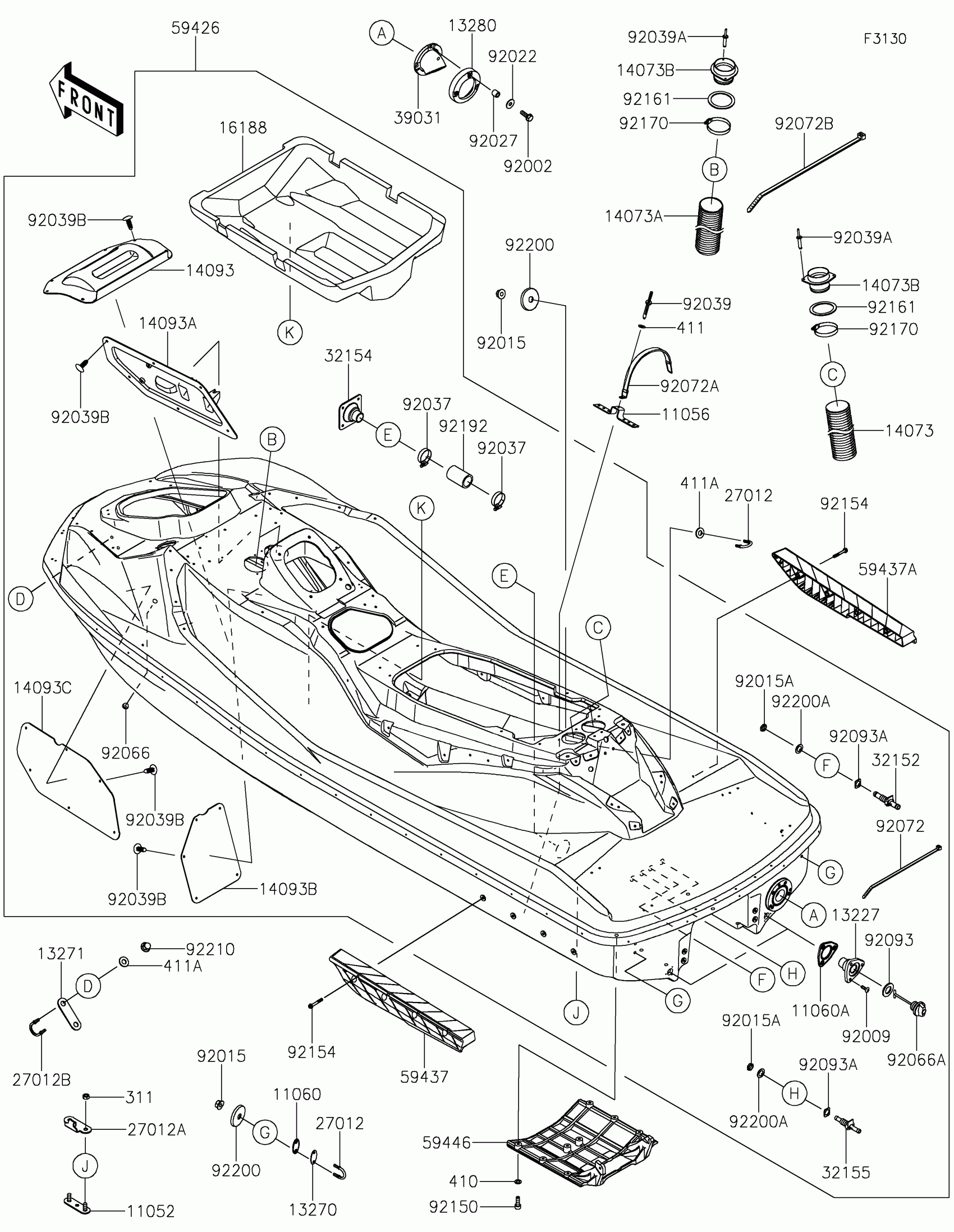

Kawasaki JET SKI® ULTRA® 160LX Hull Diagram
#
11052
BRACKET,RR DUCT
11052-3712
$9.05
11056
BRACKET,WATER MUFFLER
11056-3722
$12.65
11060
GASKET,U HOOK,RR
11060-3800
$6.20
11060A
GASKET,DRAIN PLUG
11060-3801
$6.61
13227
HOUSING,DRAIN PLUG,F.BLACK
13227-3721-6Z
$7.98
13270
PLATE
13270-3860
$8.38
13271
PLATE
13271-3724
$4.31
13280
HOLDER,EXHAUST VALVE
13280-3718
$27.61
14073
DUCT
14073-0868
$16.82
14073A
DUCT,L=800
14073-0878
$22.96
14073B
DUCT
14073-3805
$6.67
14093
COVER,BATTERY
14093-1162
$16.84
14093A
COVER,STORAGE CASE,RH
14093-1163
$13.58
14093B
COVER,STORAGE CASE,RR
14093-1211
$10.94
14093C
COVER,STORAGE CASE,LH
14093-1212
$17.97
16188
FLOAT
16188-0063
$41.28
27012
HOOK
27012-3797
$32.29
27012A
HOOK
27012-3816
$9.19
27012B
HOOK
27012-3821
$27.27
32152
PIPE
32152-3749
$7.09
32154
PIPE,DRIVE SHAFT
32154-3714
$33.24
32155
PIPE,COOLING
32155-1511
$7.09
39031
CAP-END
39031-3704
$40.86
59426
HULL-COMP,BLACK
59426-0021-650
$5,131.39
59437
STABILIZER,LH,F.BLACK
59437-3749-6Z
$62.63
59437A
STABILIZER,RH,F.BLACK
59437-3750-6Z
$62.63
59446
COVER-JET PUMP
59446-0003
$168.37
92002
BOLT,6X20
92002-3755
$4.69
92009
SCREW,TAPPING,4X16
92009-3849
$1.59
92015
NUT,FLANGED,8MM
92015-1933
$3.92
92015A
NUT,20MM
92015-3738
$7.31
92022
WASHER
92022-567
$2.67
92027
COLLAR,6.2X10X10
92027-3705
$8.86
92037
CLAMP
92037-3009
$3.70
92039
RIVET
92039-0808
$1.63
92039A
RIVET
92039-3775
$1.70
92039B
RIVET
92039-3788
$3.39
92066
PLUG
92066-1306
$5.46
92066A
PLUG,RR,DRAIN,F.BLACK
92066-3783-6Z
$17.50
92072
BAND,L=188.85
92072-0105
$1.73
92072A
BAND,314X18
92072-3814
$17.91
92072B
BAND,L=608.22
92072-3884
$3.35
92093
SEAL
92093-3720
$3.62
92093A
SEAL
92093-3784
$3.89
92150
BOLT,SOCKET,6X18
92150-3775
$4.69
92154
BOLT,FLANGED,8X55
92154-1123
$9.73
92161
DAMPER
92161-3769
$3.87
92170
CLAMP
92170-1679
$6.63
92192
TUBE,39X51X78
92192-3756
$10.39
92200
WASHER
92200-3779
$5.30
92200A
WASHER,21X34X2
92200-3802
$6.22
92210
NUT,CAP,8MM
92210-1132
$4.18
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
411
WASHER-PLAIN,5MM
411S0500
$0.94
411A
WASHER-PLAIN,8MM
411S0800
$3.09
