Partiron

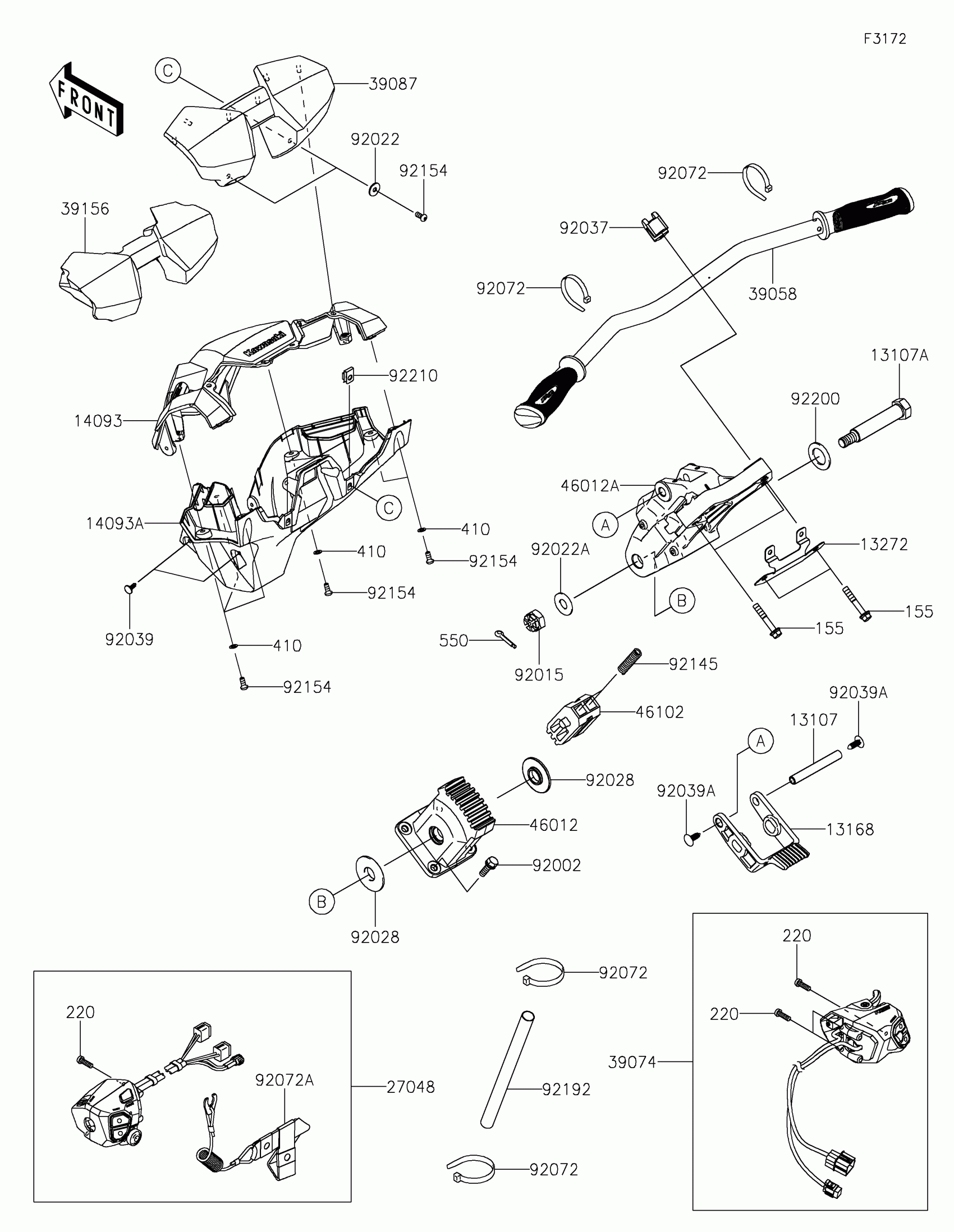

Kawasaki JET SKI® ULTRA® 160LX Handlebar Diagram

#

Description
Price

13107

SHAFT

13107-3795

$32.46

13107A

SHAFT,HANDLE HOLDER PIVOT

13107-3803

$74.62

13168

LEVER

13168-3754

$12.07

13272

PLATE

13272-3972

$10.68

14093

COVER,HANDLE,FR

14093-1176

$41.27

14093A

COVER,HANDLE,RR

14093-1177

$23.83

27048

SWITCH-ASSY,STOP&START

27048-0054

$347.00

39058

HANDLE-COMP,BLACK

39058-0044-6Z

$195.97

39074

LEVER-ASSY-THROTTLE

39074-0014

$817.17

39087

PAD-HANDLE,BLACK

39087-0016-6Z

$78.97

39156

PAD

39156-2768

$19.17

46012

HOLDER-HANDLE,LWR

46012-3730

$104.90

46012A

HOLDER-HANDLE,UPP

46012-3733

$70.52

46102

ROD,HANDLE POSITION

46102-3733

$50.60

92002

BOLT,8X25

92002-3774

$7.76

92015

NUT,CASTLE,14MM

92015-3805

$36.18

92022

WASHER,6.5X20X1.5

92022-3710

Unavailable

92022A

WASHER,15X34X2.0

92022-3738

$4.93

92028

BUSHING

92028-3743

$8.04

92037

CLAMP,HANDLEBAR

92037-503

$15.14

92039

RIVET

92039-3787

$2.98

92039A

RIVET

92039-3788

$2.34

92072

BAND,L=188.85

92072-0105

$1.30

92072A

BAND,TETHER SWITCH

92072-0891

$58.43

92145

SPRING

92145-3723

$4.92

92154

BOLT,SOCKET,6X14

92154-3988

$1.05

92192

TUBE,35X37X200

92192-1990

$8.44

92200

WASHER,21X34X2

92200-3802

$5.42

92210

NUT,6MM

92210-3768

$4.39

155

BOLT-WSP-SMALL,8X50

155R0850

$4.27

220

SCREW-PAN-CROS,5X30

220R0530

$4.32

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68

550

PIN-COTTER,3X35

550S3035

$4.02
