Description

Price

13091

HOLDER

13091-3712

$4.65

14091

COVER,INSIDE

14091-3755

$85.68

14091A

COVER,OUTSIDE

14091-3756

$85.68

27010

SWITCH,OIL PRESSURE

27010-0918

$67.73

39067

COOLER-OIL

39067-3704

$259.71

59071

JOINT

59071-3764

$7.64

92005

FITTING,WATER TEMP SENSOR

92005-0733

$54.11

92005A

FITTING

92005-3714

$18.72

92005B

FITTING,FLUSH

92005-3748

$9.68

92005C

FITTING,FLUSH

92005-3757

$15.89

92055

RING-O,58X3

92055-3767

$6.18

92055A

RING-O

92055-3770

$21.99

92055B

RING-O

92055-3772

$13.06

92066

PLUG

92066-1593

$11.84

92071

GROMMET

92071-3815

$5.46

92072

BAND,L=188.85

92072-0105

$1.73

92072A

BAND

92072-0940

$5.65

92072B

BAND,L=152

92072-3874

$4.18

92072C

BAND,L=100.08

92072-3882

$2.02

92153

BOLT,OIL COOLER

92153-3713

$27.52

92161

DAMPER

92161-1331

$3.26

92171

CLAMP

92171-3701

$7.43

92171A

CLAMP

92171-3714

$9.49

92173

CLAMP

92173-1482

$16.35

92191

TUBE,CORRUGATED,19.5X23.8X500

92191-3884

$3.89

92192

TUBE,12X18X250

92192-1046

$15.23

92192A

TUBE,12X18X1250

92192-1047

$27.47

92192B

TUBE,CORRUGATED,19.5X23.8X200

92192-1048

$1.69

92192C

TUBE,CORRUGATED,19.5X23.8X1200

92192-1049

$6.50

92192D

TUBE,7X12X1750

92192-2688

$22.41

92192E

TUBE,EXMANI-FLUSH

92192-2829

$42.28

92192F

TUBE

92192-2830

$9.60

92192G

TUBE,CORRUGATED,19.5X23.8X900

92192-3711

$5.42

92192H

TUBE,CORRUGATED,19.5X23.8X380

92192-3714

$2.67

92192I

TUBE,12X18X630

92192-3716

$55.90

92192J

TUBE,GENERATOR-HULL

92192-3739

$54.68

92192K

TUBE,12X18X1000

92192-3740

$26.47

92192L

TUBE,12X18X480

92192-3742

$13.28

92192M

TUBE,12X18X450

92192-3745

$13.28

92192N

TUBE,CORRUGATED,L=600M

92192-3751

$3.82

92192O

TUBE,CORRUGATED,19.5X23.8X800

92192-3781

$5.19

92192P

TUBE,12X19X120

92192-3796

$10.21

92192Q

TUBE,12X19X55&1000

92192-3799

$50.76

130

BOLT-FLANGED,8X50

130BD0850

$4.69

132

BOLT-FLANGED-SMALL,6X20

132BD0620

$4.12

670

O RING,14MM

670D2014

$5.52

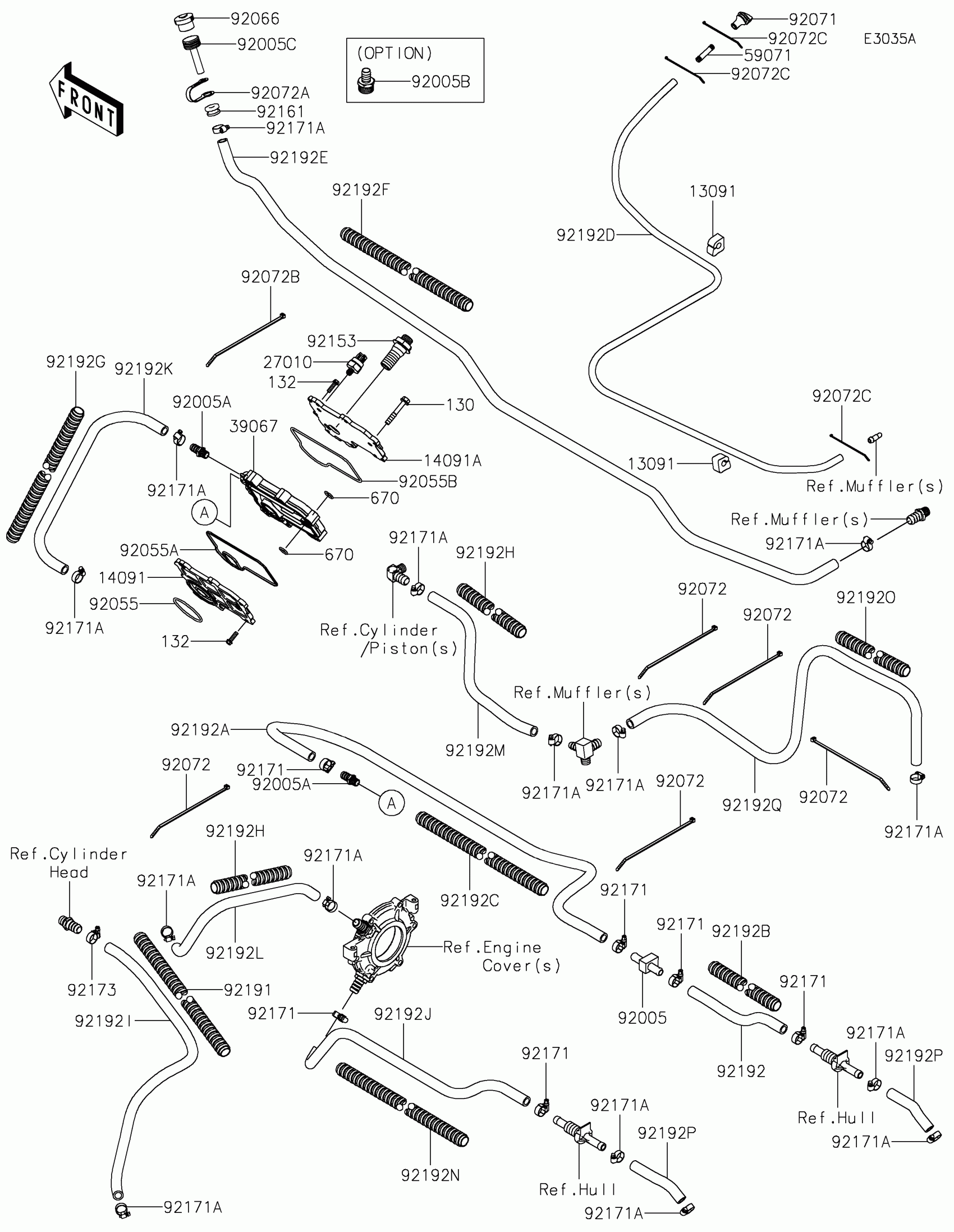

Kawasaki JET SKI® ULTRA® 160LX Cooling(ASFNN/ASSNN) Diagram

HOLDER

COVER,INSIDE

COVER,OUTSIDE

SWITCH,OIL PRESSURE

COOLER-OIL

JOINT

FITTING,WATER TEMP SENSOR

FITTING

FITTING,FLUSH

FITTING,FLUSH

RING-O,58X3

RING-O

RING-O

PLUG

GROMMET

BAND,L=188.85

BAND

BAND,L=152

BAND,L=100.08

BOLT,OIL COOLER

DAMPER

CLAMP

CLAMP

CLAMP

TUBE,CORRUGATED,19.5X23.8X500

TUBE,12X18X250

TUBE,12X18X1250

TUBE,CORRUGATED,19.5X23.8X200

TUBE,CORRUGATED,19.5X23.8X1200

TUBE,7X12X1750

TUBE,EXMANI-FLUSH

TUBE

TUBE,CORRUGATED,19.5X23.8X900

TUBE,CORRUGATED,19.5X23.8X380

TUBE,12X18X630

TUBE,GENERATOR-HULL

TUBE,12X18X1000

TUBE,12X18X480

TUBE,12X18X450

TUBE,CORRUGATED,L=600M

TUBE,CORRUGATED,19.5X23.8X800

TUBE,12X19X120

TUBE,12X19X55&1000

BOLT-FLANGED,8X50

BOLT-FLANGED-SMALL,6X20

O RING,14MM
