2020 Kawasaki Jet Ski® SX-R™ Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2020 Kawasaki Jet Ski® SX-R™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

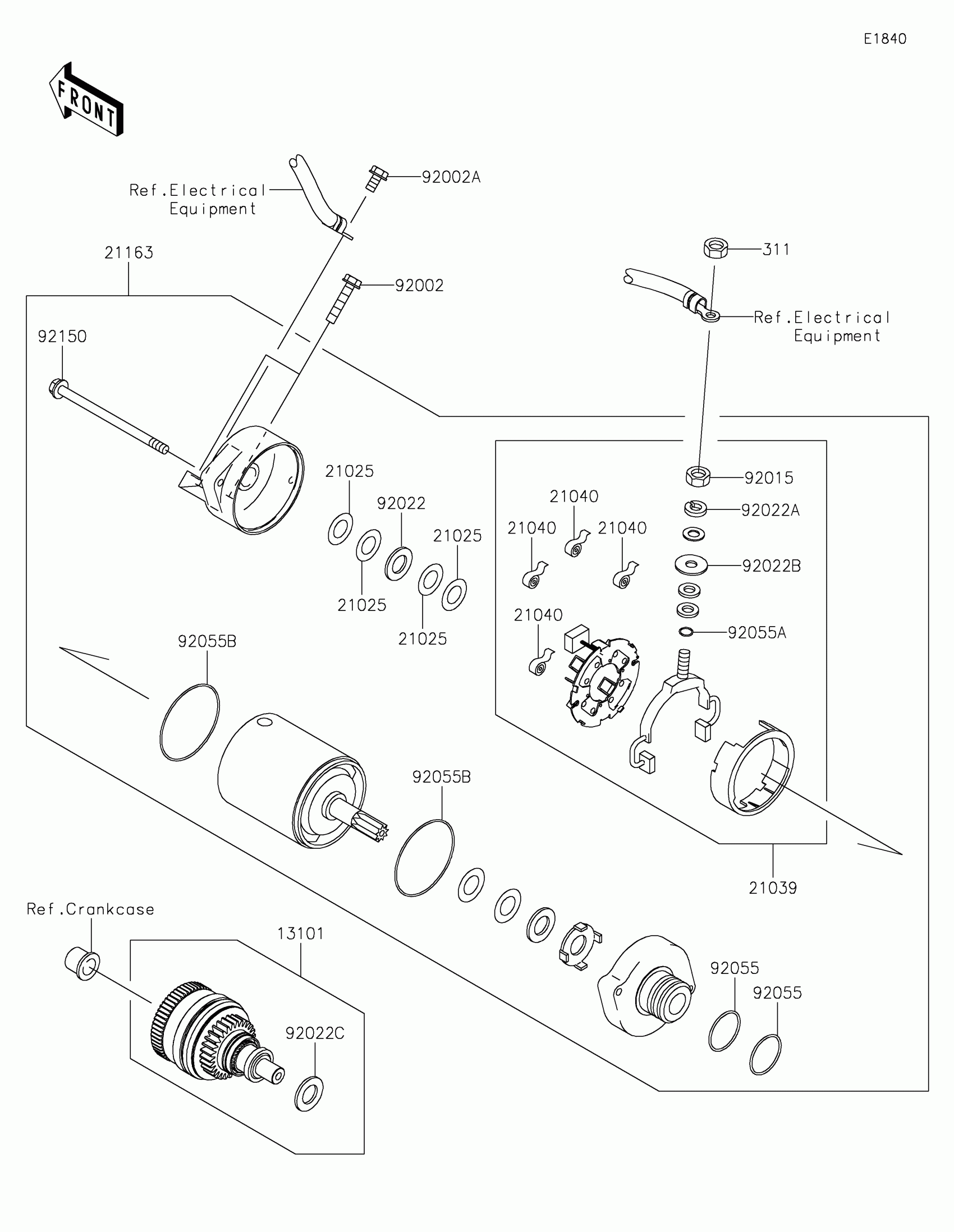

2020 Kawasaki Jet Ski® SX-R™ Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13101

GEAR-ASSY

13101-3710

1
Out of stock

21025

WASHER,9.1X18X0.2

21025-011

—
Out of stock

21039

BRUSH,CARBON

21039-3703

1
Out of stock

21040

SPRING-BRUSH

21040-1055

1
Out of stock

21163

STARTER-ELECTRIC

21163-3721

1
Out of stock

92002

BOLT,6X25

92002-3714

1
Out of stock

92002A

BOLT,6X12

92002-3763

1
Out of stock

92015

NUT,6MM

92015-3710

1
Out of stock

92022

WASHER,9.1X18X0.8

92022-1132

1
Out of stock

92022A

WASHER,6MM

92022-3711

1
Out of stock

92022B

WASHER,6MM

92022-3713

1
Out of stock

92022C

WASHER,12X24X1.0

92022-3731

1
Out of stock

92055

RING-O

92055-1276

1
Out of stock

92055A

RING-O,4.5X2.0

92055-1370

1
Out of stock

92055B

RING-O,STARTER MOTOR

92055-1381

1
Out of stock

92150

BOLT

92150-3772

1
Out of stock

311

NUT-HEX,6MM

311R0600

1
Out of stock
