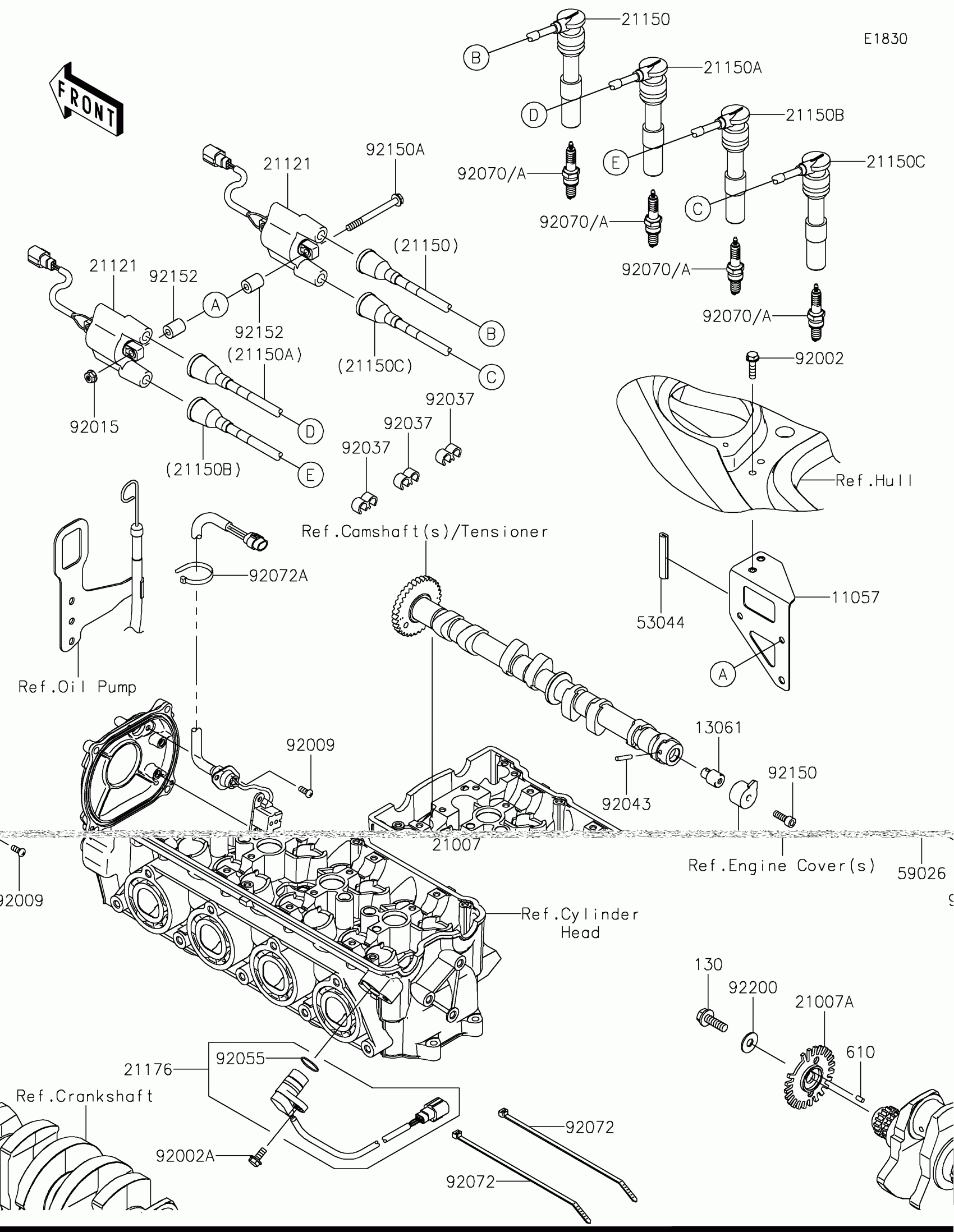

Kawasaki JET SKI® SX-R™ Ignition System Diagram

#

Description
Price

11057

BRACKET,IGNITION COIL

11057-0453

$11.34

13061

BOSS,CAM SENSOR

13061-1687

$15.29

21007

ROTOR,EX CAM

21007-3742

$21.24

21007A

ROTOR,PULSING

21007-3744

$18.82

21121

COIL-IGNITION

21121-0720

$177.48

21150

CORD-ASSY,#1,L=340

21150-0006

$70.85

21150A

CORD-ASSY,#2,L=450

21150-0007

$70.85

21150B

CORD-ASSY,#3,L=540

21150-0008

$70.85

21150C

CORD-ASSY,#4,L=600

21150-0009

$70.85

21176

SENSOR

21176-1077

$90.27

53044

TRIM

53044-0621

$1.17

59026

COIL-PULSING

59026-3702

$123.43

92002

BOLT,6X25

92002-3714

$3.81

92002A

BOLT,6X16

92002-3728

$3.24

92009

SCREW,5X12

92009-1296

$3.53

92015

NUT,6MM

92015-3767

$3.57

92037

CLAMP,HOSE

92037-1603

$3.81

92043

PIN

92043-1575

$1.76

92055

RING-O

92055-1639

$2.15

92070

PLUG-SPARK,CR9EKB(NGK)

92070-0050

$9.27

92070A

PLUG-SPARK,CR8EKB(NGK)

92070-0708

Unavailable

92072

BAND,L=188.85

92072-0105

$1.30

92072A

BAND,L=152

92072-3874

$3.75

92150

BOLT,6X18

92150-1645

$2.74

92150A

BOLT,6X70

92150-3753

$5.61

92152

COLLAR

92152-3738

$5.82

92200

WASHER,8.0X22.0X1.5

92200-0174

$1.85

130

BOLT-FLANGED,8X25

130CD0825

$1.68

610

ROLLER,4X8

610A0408

$3.29
